GX240 U1 VWC2 (GCAKK) - Honda Engine, Made in Japan (SN: GCAKK-1000001 - GCAKK-9999999) RECOIL STARTER Parts Diagram

Engine, Made in Japan

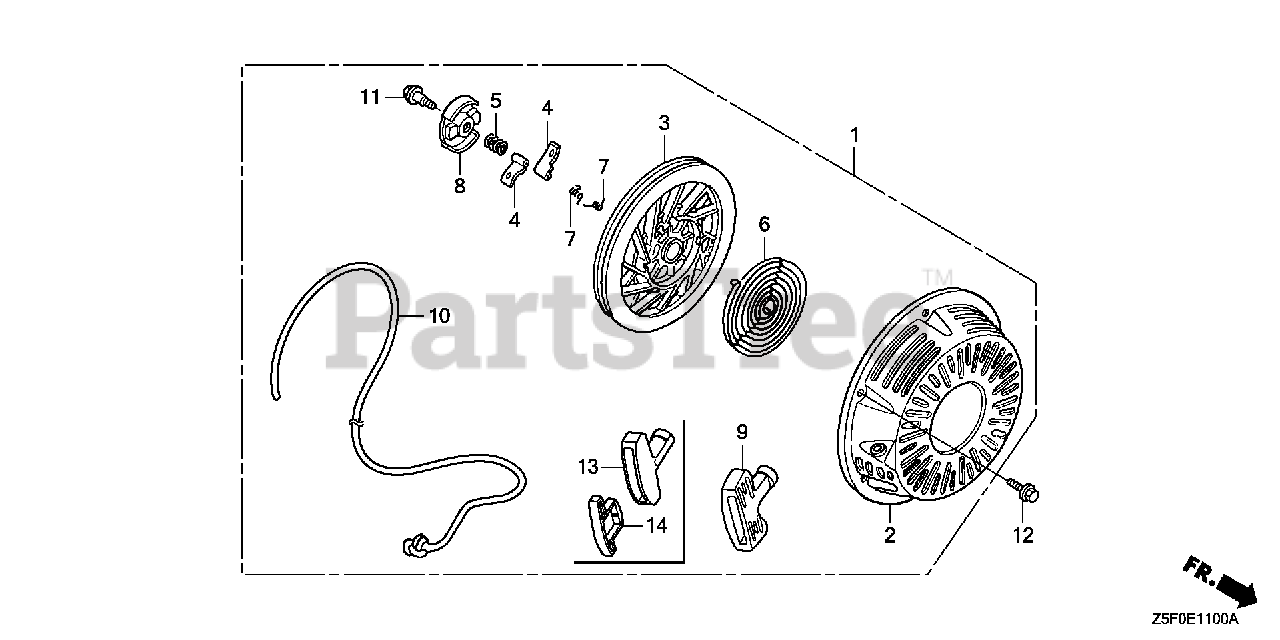

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZE2-W01ZB

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *NH1* (BLACK)
(Superseded to 28400-ZE2-W02ZB)

$118.99

$

In Stock, only 1 left!

0

1

Honda 28400-ZE2-W02ZB

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *NH1* (BLACK)

$118.99

$

In Stock, only 1 left!

0

1

Honda 28400-ZE2-W02ZG

STARTER ASSY., RECOIL *NH105* (MAT BLACK)

$106.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZE2-W01ZB

CASE, RECOIL STARTER *NH1* (BLACK)

$156.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZE2-W01ZG

CASE, RECOIL STARTER *NH105* (MAT BLACK)

$182.99

$

Usually ships in 3-6 days

0

3

Honda 28421-ZE2-W01

PULLEY, RECOIL STARTER

$41.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER (Honda Code 3678877).

$7.49

$

Usually ships in 3-6 days

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION (Honda Code 3678885).

$6.49

$

In Stock, Qty 10

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN (Honda Code 3678893).

$18.99

$

Usually ships in 3-6 days

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET (Honda Code 3678901).

$5.49

$

In Stock, Qty 12

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING (Honda Code 3678919).

$14.99

$

Usually ships in 3-6 days

0

9

Honda 28461-ZE2-W02

SEE PART DETAILS - PRI; GRIP, STARTER (Honda Code 6133649).
(Superseded to 28461-ZE2-W03)

$7.99

$

Usually ships in 3-6 days

0

9

Honda 28461-ZE2-W03

SEE PART DETAILS - PRI; GRIP, STARTER

$7.99

$

Usually ships in 3-6 days

0

10

Honda 28462-ZE2-W11

ROPE, RECOIL STARTER (#5X55")

$10.99

$

In Stock, only 2 left!

0

11

Honda 90004-ZE2-W01

SCREW, CENTER (Honda Code 3679024).

$4.49

$

In Stock, Qty 10

0

12

Honda 90008-ZE2-003

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 6437289).

$1.99

$

In Stock, Qty 9

0
