GX240 U1 VWC2 (GCAKK) - Honda Engine, Made in Japan (SN: GCAKK-1000001 - GCAKK-9999999) IGNITION COIL (1) Parts Diagram
Engine, Made in Japan

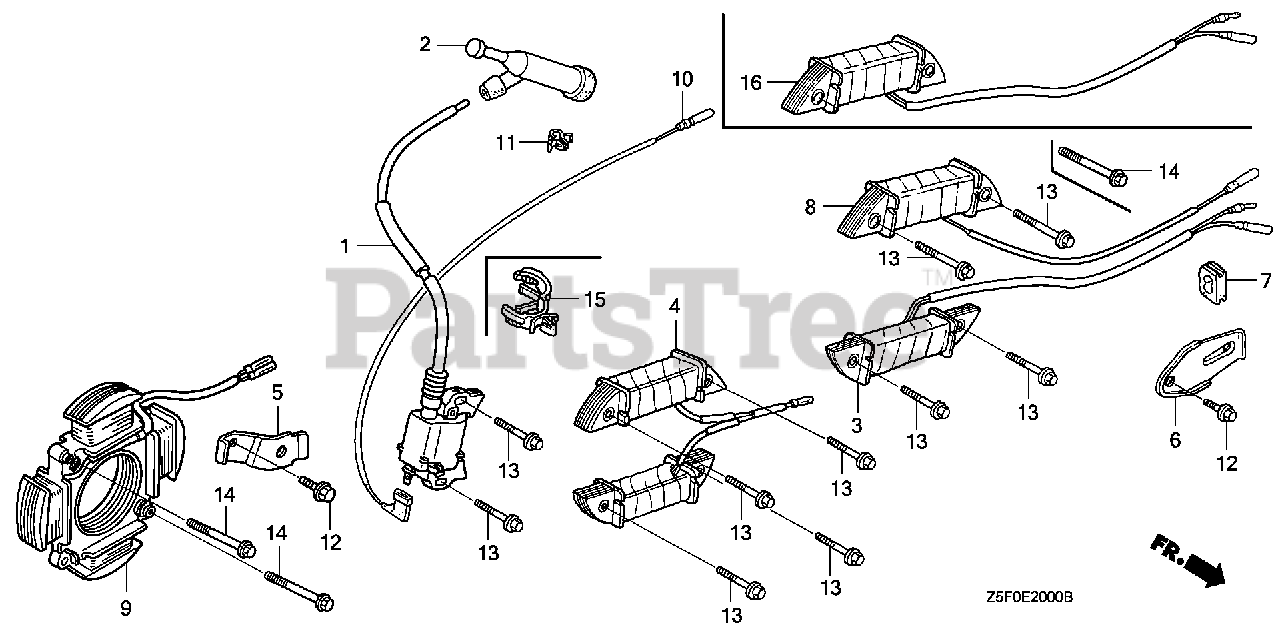

IGNITION COIL (1) Parts Diagram
Honda 30500-ZF6-W02
SEE PART DETAILS - PRI; COIL ASSY., IGNITION (Honda Code 7032428).
Note: Use up to Engine SN 1167470.
$56.99
$
In Stock, Qty 7
Honda 30500-ZF6-W03
SEE PART DETAILS - SUP; COIL ASSY., IGNITION
(Superseded to 30500-Z1C-023)
Note: Use from Engine SN 1167471.
$56.99
$
In Stock, Qty 7
$56.99
$
In Stock, Qty 7
Honda 30700-ZE1-013
SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR (Honda Code 3526837). (NICHIWA Y-EZ RTFM256)
$22.99
$
In Stock, only 4 left!
Honda 31512-ZE2-000
GROMMET, WIRE (Honda Code 2026557).
$3.99
$
Usually ships in 3-6 days
Honda 36101-ZE1-010
WIRE, STOP SWITCH (370MM) (Honda Code 3684032).
$11.99
$
In Stock, Qty 20+
Honda 90015-883-000
BOLT, FLANGE (6X28) (CT200) Use up to Engine SN 1530314.
$3.99
$
In Stock, Qty 8
Honda 90684-ZA0-601
SEE PART DETAILS - PRI; CLIP, WIRE HARNESS (Honda Code 2539138).
$4.99
$
Usually ships in 3-6 days
