GX240 U1 VWC2 (GCAKK) - Honda Engine, Made in Japan (SN: GCAKK-1000001 - GCAKK-9999999) CRANKCASE COVER (1) Parts Diagram

Engine, Made in Japan

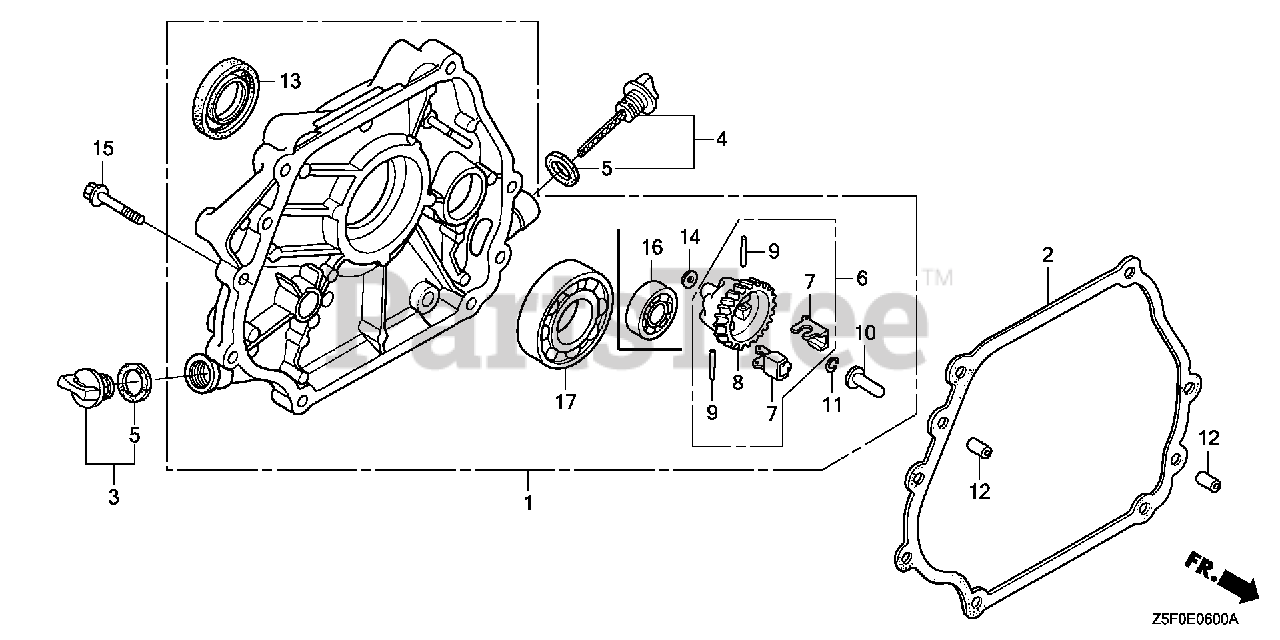

CRANKCASE COVER (1) Parts Diagram

  • Title

1

Honda 11400-Z1D-600

SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE

$110.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZE2-801

SEE PART DETAILS - PRI; GASKET, CASE COVER (Honda Code 6436851).

$11.99

$

In Stock, only 4 left!

0

3

Honda 15600-ZG4-003

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER

$6.99

$

In Stock, only 1 left!

0

4

Honda 15600-735-003

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER (Honda Code 4523106).

$8.49

$

In Stock, Qty 11

0

5

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP (Honda Code 4497947).

$3.49

$

In Stock, only 2 left!

0

6

Honda 16510-ZE2-811

GOVERNOR ASSY. (BALANCER) (Honda Code 3690005).

$26.99

$

Usually ships in 3-6 days

0

7

Honda 16511-ZE2-000

WEIGHT, GOVERNOR (Honda Code 2025955).

$3.99

$

Usually ships in 3-6 days

0

8

Honda 16512-ZE2-811

HOLDER, GOVERNOR WEIGHT (Honda Code 3682010).

$18.99

$

Usually ships in 3-6 days

0

9

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT (Honda Code 2025971).

$2.49

$

Usually ships in 3-6 days

0

10

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR (Honda Code 6605117).

$3.99

$

In Stock, Qty 5

0

11

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, Qty 6

0

11

Honda 90602-896-000

SEE PART DETAILS - SUP; CLIP, GOVERNOR HOLDER (Honda Code 0928101).

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

12

Honda 90701-HC4-000

PIN, DOWEL (8X12) (Honda Code 2978443).

$3.99

$

In Stock, only 2 left!

0

13

Honda 91201-890-003

OIL SEAL (30X46X8) (Honda Code 0756494).

$11.99

$

In Stock, Qty 5

0

14

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

15

Honda 95701-08035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2724029).

$2.99

$

In Stock, Qty 12

0

16

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202) (Honda Code 0708941).

$12.99

$

In Stock, only 4 left!

0

17

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206) (Honda Code 0636118).

$30.99

$

In Stock, only 1 left!

0
