GX240 U1 EDN2 (GCAKK) - Honda Engine, Made in Japan (SN: GCAKK-1000001 - GCAKK-9999999) FUEL TANK (2) Parts Diagram

Engine, Made in Japan

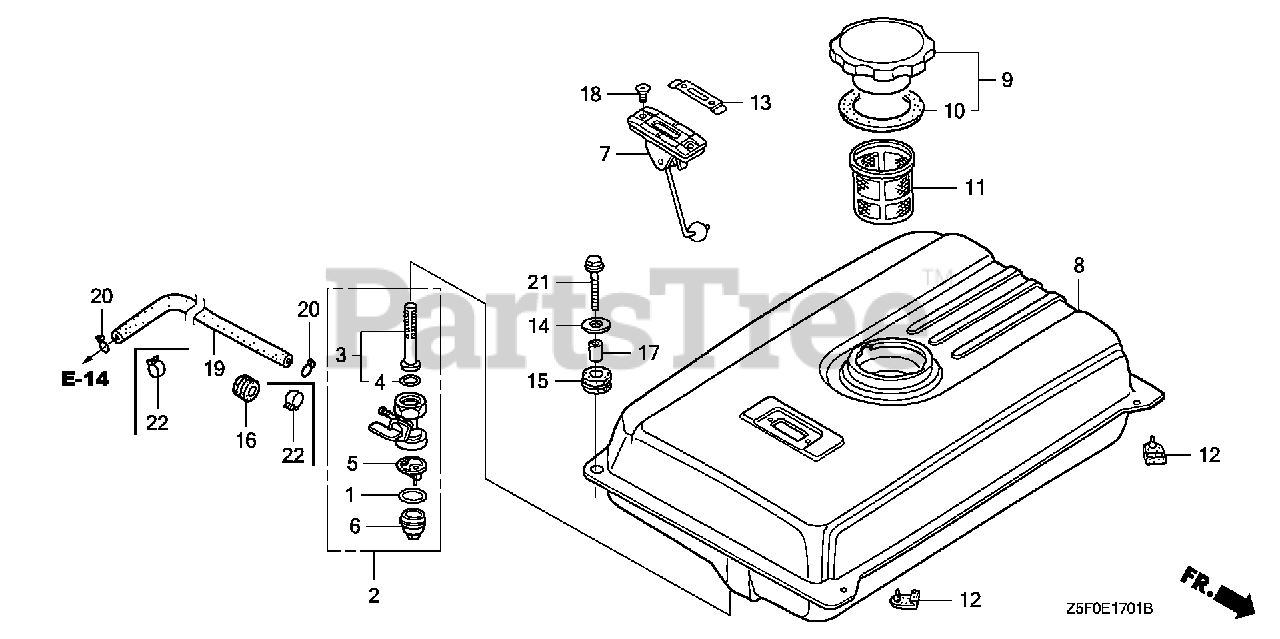

FUEL TANK (2) Parts Diagram

  • Title

1

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$7.49

$

In Stock, Qty 8

0

2

Honda 16950-ZB4-015

SEE PART DETAILS - PRI; PETCOCK ASSY.

$99.99

$

In Stock, only 4 left!

0

3

Honda 16952-KJ9-752

SEE PART DETAILS - PRI; SCREEN SET, FUEL STRAINER

$45.99

$

Usually ships in 3-6 days

0

3

Honda 16952-ZB4-005

SEE PART DETAILS - SUP; SCREEN SET, FUEL STRAINER
(Superseded to 16952-KJ9-752)

$45.99

$

Usually ships in 3-6 days

0

4

Honda 16958-397-771

O-RING (9.0X1.3)

$7.49

$

In Stock, Qty 5

0

5

Honda 16959-471-831

FILTER, CUP

$12.99

$

In Stock, Qty 8

0

6

Honda 16967-GA6-671

CUP, FUEL STRAINER

$30.99

$

Usually ships in 3-6 days

0

7

Honda 17505-ZB2-013

METER ASSY., FUEL

$25.99

$

Usually ships in 3-6 days

0

8

Honda 17510-ZB4-000ZA

TANK, FUEL *NH31* (MCKINLEY WHITE)

$297.99

$

Usually ships in 3-6 days

0

8

Honda 17510-ZB4-000ZC

TANK, FUEL *NH1* (BLACK)

$248.99

$

Usually ships in 3-6 days

0

8

Honda 17510-ZB4-000ZE

TANK, FUEL *T68* (TSURUMI BLUE)

$343.99

$

Usually ships in 3-6 days

0

8

Honda 17510-ZB4-000ZF

TANK, FUEL *Y131* (LIGHTNING YELLOW)

$343.99

$

Usually ships in 3-6 days

0

8

Honda 17510-ZB4-000ZH

TANK, FUEL *R280* (POWER RED)

$265.99

$

Usually ships in 3-6 days

0

9

Honda 17620-899-013

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-899-023)

$40.99

$

In Stock, only 1 left!

0

10

Honda 17631-899-000

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-899-010)

$7.99

$

In Stock, only 2 left!

0

11

Honda 17670-899-000

FILTER, FUEL

$20.99

$

Usually ships in 3-6 days

0

12

Honda 50319-ZB2-000

RUBBER, TANK MOUNTING

$4.99

$

Usually ships in 3-6 days

0

13

Honda 87565-ZB4-A00

PLATE, FUEL INDICATION

$6.49

$

Usually ships in 3-6 days

0

14

Honda 90503-898-000

WASHER, TANK CUSHION

$2.99

$

Usually ships in 3-6 days

0

15

Honda 90851-898-000

RUBBER, TANK CUSHION

$5.99

$

In Stock, only 1 left!

0

16

Honda 90854-ZB2-000

RUBBER, FUEL (9X15X10)

$4.49

$

Usually ships in 3-6 days

0

17

Honda 91551-898-000

COLLAR, TANK CUSHION

$5.99

$

Usually ships in 3-6 days

0

18

Honda 93600-05010-0A

SCREW, FLAT (5X10)

$1.49

$

In Stock, only 3 left!

0

19

Honda 91424-Z4K-802

TUBE, FUEL (4.5X180) (FKM)
(Superseded to 91424-Z4K-803)

Note: Use from Engine SN 1037325 to 1225693.

$18.99

$

Usually ships in 3-6 days

0

19

Honda 91424-Z4K-802

TUBE, FUEL (4.5X180) (FKM)
(Superseded to 91424-Z4K-803)

Note: Use from Engine SN 1225694.

$18.99

$

Usually ships in 3-6 days

0

19

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X180)

Note: Use up to Engine SN 1037324.

$54.99

$

In Stock, only 4 left!

0

20

Honda 95002-02080

CLIP, TUBE (B8)

Note: Use up to Engine SN 1037324.

$2.49

$

In Stock, only 4 left!

0

21

Honda 95701-06022-00

BOLT, FLANGE (6X22)

$2.49

$

In Stock, only 1 left!

0

22

Honda 95002-40800-08

CLAMP, TUBE (D8)

Note: Use from Engine SN 1037325.

$2.99

$

In Stock, Qty 6

0
