GX240 STQ (GC04) - Honda Engine, Made in Japan (SN: GC04-1000001 - GC04-1528199) CARBURETOR (1) Parts Diagram

Engine, Made in Japan

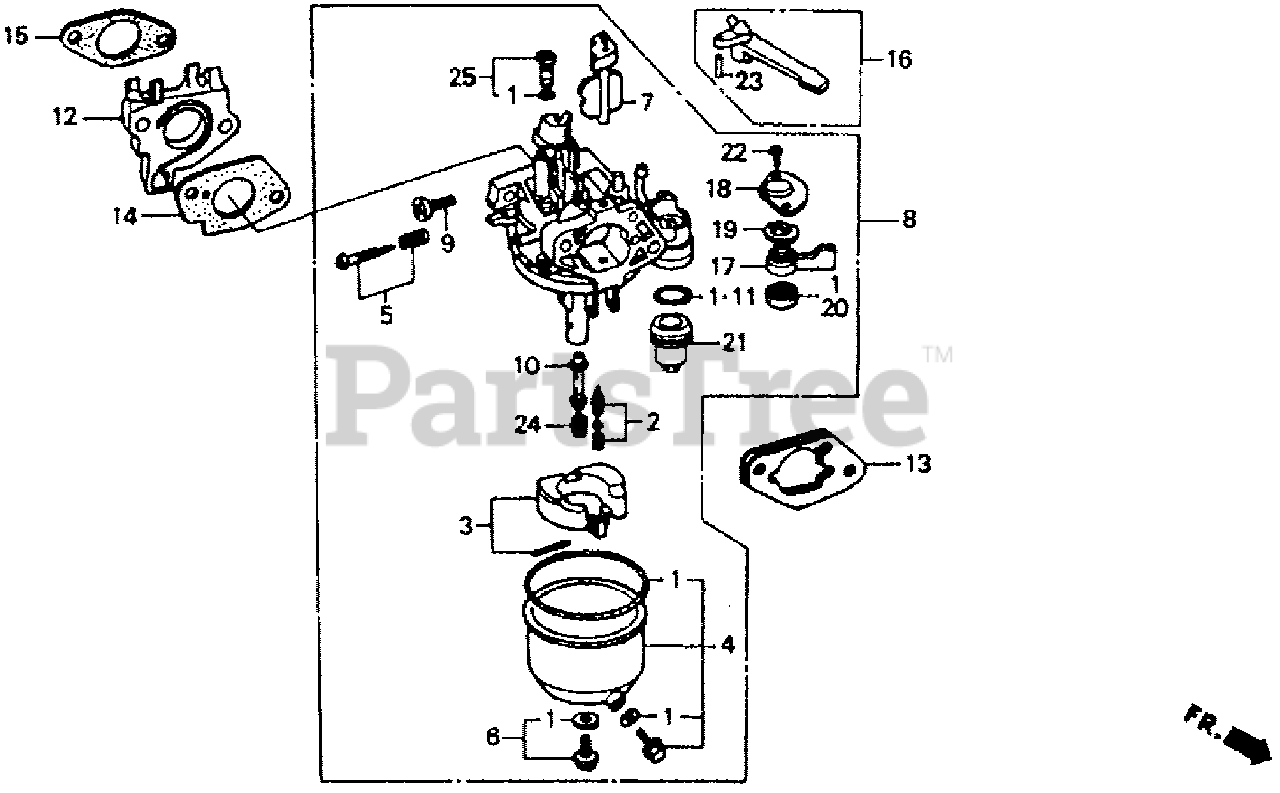

CARBURETOR (1) Parts Diagram

  • Title

1

Honda 16010-ZE2-811

SEE PART DETAILS - SUP; GASKET SET (Honda Code 2107845).
(Superseded to 16010-ZE2-812)

Note: Use up to Engine SN BE15B D.

$20.99

$

In Stock, Qty 10

0

1

Honda 16010-ZE2-812

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3511383).

Note: Use up to Engine SN BE15B D.

$20.99

$

In Stock, Qty 10

0

1

Honda 16010-ZE2-812

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3511383).

Note: Use from Engine SN BE26B E.

$20.99

$

In Stock, Qty 10

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT (Honda Code 2059236).

$47.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZA0-931

FLOAT SET (Honda Code 2059244).

$53.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE2-005

SEE PART DETAILS - SUP; CHAMBER SET, FLOAT (Honda Code 2157493).

$

$

Currently unavailable

4

Honda 16015-ZE8-005

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (Honda Code 2089993).

$48.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZA0-931

SCREW SET, PILOT (Honda Code 2090009).

$17.99

$

In Stock, only 1 left!

0

6

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$14.99

$

In Stock, only 1 left!

0

7

Honda 16044-ZE2-005

CHOKE SET (Honda Code 2090017).

$39.99

$

Usually ships in 3-6 days

0

8

Honda 16100-ZE2-814

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE15B E) (Honda Code 3441490).

$145.99

$

In Stock, only 2 left!

0

9

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$18.99

$

In Stock, only 1 left!

0

10

Honda 16166-ZE2-015

NOZZLE, MAIN (Honda Code 2157543).

$37.99

$

Usually ships in 3-6 days

0

11

Honda 16173-001-004

GASKET, FUEL STRAINER CUP (Honda Code 0005652).

$7.99

$

In Stock, only 1 left!

0

12

Honda 16211-ZE2-000

INSULATOR, CARBURETOR (Honda Code 2025906).
(Superseded to 16211-ZE2-010)

$10.99

$

In Stock, Qty 10

0

13

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2686533).

$12.99

$

In Stock, only 2 left!

0

14

Honda 16221-ZA0-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR (Honda Code 4357307).
(Superseded to 16221-ZA0-800)

$2.99

$

In Stock, Qty 20+

0

14

Honda 16221-ZA0-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 3678620).

$2.99

$

In Stock, Qty 20+

0

15

Honda 16223-ZA0-800

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 3678638).

$2.99

$

In Stock, Qty 9

0

16

Honda 16610-ZE1-000

LEVER, CHOKE (STD) (Honda Code 1440114).

$11.99

$

In Stock, only 3 left!

0

17

Honda 16953-ZE1-406

SEE PART DETAILS - PRI; LEVER, VALVE (Honda Code 5167358).

$15.99

$

Usually ships in 3-6 days

0

17

Honda 16953-ZE1-811

SEE PART DETAILS - SUP; LEVER, VALVE (Honda Code 1819986).
(Superseded to 16953-ZE1-406)

$15.99

$

Usually ships in 3-6 days

0

18

Honda 16954-ZE1-812

PLATE, LEVER SETTING (Honda Code 5148135).

$4.49

$

In Stock, only 1 left!

0

19

Honda 16956-ZE1-811

SPRING, VALVE LEVER (Honda Code 1807809).

$4.49

$

Usually ships in 3-6 days

0

20

Honda 16957-ZE1-811

SEE PART DETAILS - SUP; GASKET, VALVE (Honda Code 1807817).
(Superseded to 16957-ZE1-812)

Note: Use up to Engine SN BE15B D.

$4.99

$

In Stock, Qty 20+

0

20

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

Note: Use up to Engine SN BE15B D.

$4.99

$

In Stock, Qty 20+

0

20

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

Note: Use from Engine SN BE15B E.

$4.99

$

In Stock, Qty 20+

0

21

Honda 16967-ZE0-811

CUP, FUEL STRAINER (Honda Code 1441583).

$24.99

$

In Stock, only 2 left!

0

22

Honda 93500-03008-0G

SCREW, PAN (3X8) (Honda Code 0420505).

Note: Use from Engine SN BE15B E.

$

$

Not available

22

Honda 93500-03008-0H

SCREW, PAN (3X8) (Honda Code 0374694).

Note: Use up to Engine SN BE15B D.

$0.99

$

In Stock, Qty 8

0

23

Honda 94305-20122

PIN, SPRING (2X12) (Honda Code 1441591).

$2.49

$

In Stock, only 3 left!

0

24

Honda 99101-124-0820

JET, MAIN (#82) (Honda Code 0714527).

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

24

Honda 99101-124-0850

JET, MAIN (#85) (Honda Code 0761361).

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

24

Honda 99101-124-0880

JET, MAIN (#88) (Honda Code 0648170).

$12.99

$

Usually ships in 3-6 days

0

25

Honda 99204-ZE2-0380

JET SET, PILOT (#38) (Honda Code 2159820).

$24.99

$

Usually ships in 3-6 days

0
