GX240 STP (GC04) - Honda Engine, Made in Japan (SN: GC04-1000001 - GC04-1528199) CRANKSHAFT Parts Diagram

Engine, Made in Japan

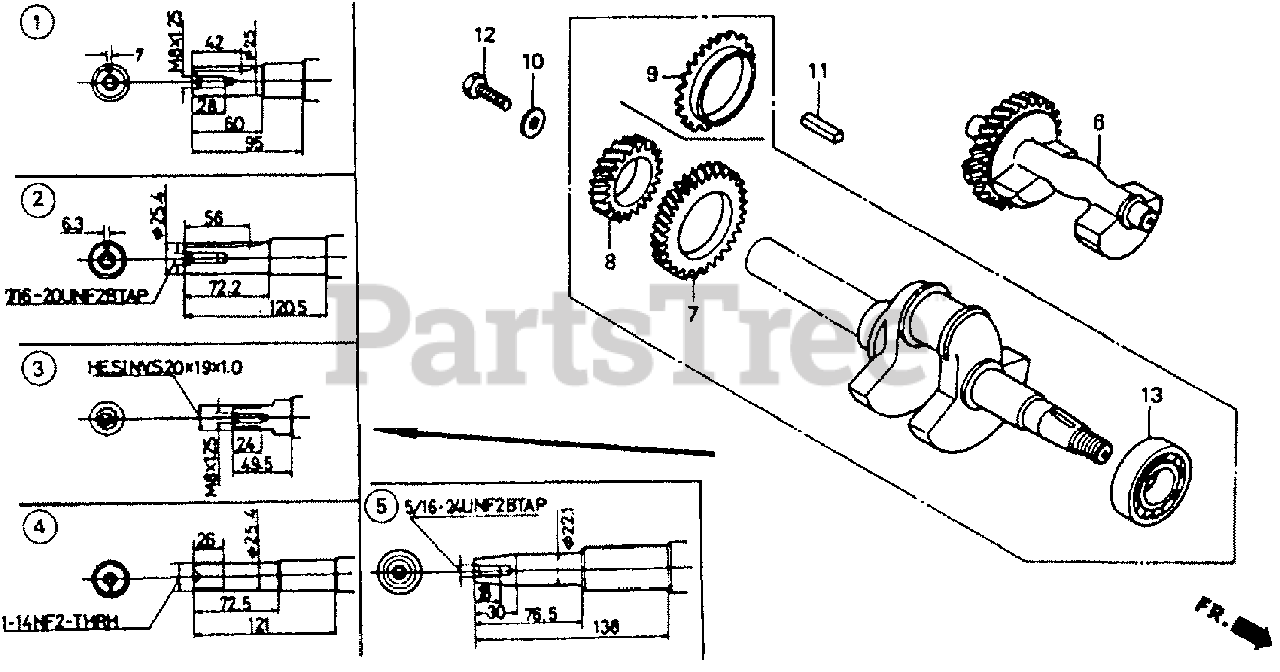

CRANKSHAFT Parts Diagram

  • Title

1

Honda 13310-ZE2-000

CRANKSHAFT (S-TYPE) (Honda Code 2159887).

Note: Use up to Engine SN 1494214.

$

$

Currently unavailable

1

Honda 13310-ZE2-010

SEE PART DETAILS - SUP; CRANKSHAFT (S-TYPE) (Honda Code 3793684).

Note: Use from Engine SN 1494215.

$

$

Currently unavailable

1

Honda 13310-ZE2-020

SEE PART DETAILS - PRI; CRANKSHAFT (Honda Code 8111437).

Note: Use from Engine SN 1494215.

$268.99

$

Usually ships in 3-6 days

0

8

Honda 14311-ZE2-300

GEAR, TIMING (Honda Code 2028090).

Note: Use up to Engine SN 1494214.

$29.99

$

Usually ships in 3-6 days

0

8

Honda 14311-ZE2-310

GEAR, TIMING (Honda Code 3707486).

Note: Use from Engine SN 1494215.

$50.99

$

Usually ships in 3-6 days

0

9

Honda 16505-ZE2-300

GEAR, GOVERNOR DRIVE (Honda Code 2159937).

$24.99

$

Usually ships in 3-6 days

0

10

Honda 90534-706-010

WASHER, LOCK (8MM) (Honda Code 0177998).

$6.99

$

Usually ships in 3-6 days

0

11

Honda 90741-889-810

KEY (7X7X33) (Honda Code 1064039).

$9.49

$

Usually ships in 3-6 days

0

11

Honda 90741-889-810

KEY (7X7X33) (Honda Code 1064039).

Note: (Optional).

$9.49

$

Usually ships in 3-6 days

0

12

Honda 92101-08025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X25) (Honda Code 2651537).

$2.49

$

In Stock, Qty 6

0

13

Honda 96100-62060-00

BEARING, RADIAL BALL (6206) (Honda Code 0636118).

$30.99

$

In Stock, only 1 left!

0
