GX240 RT2 VWS1 (GCBJT) - Honda Engine, Made in Thailand (SN: GCBJT-1000001 - GCBJT-1999999) CRANKCASE COVER (3) Parts Diagram

Engine, Made in Thailand

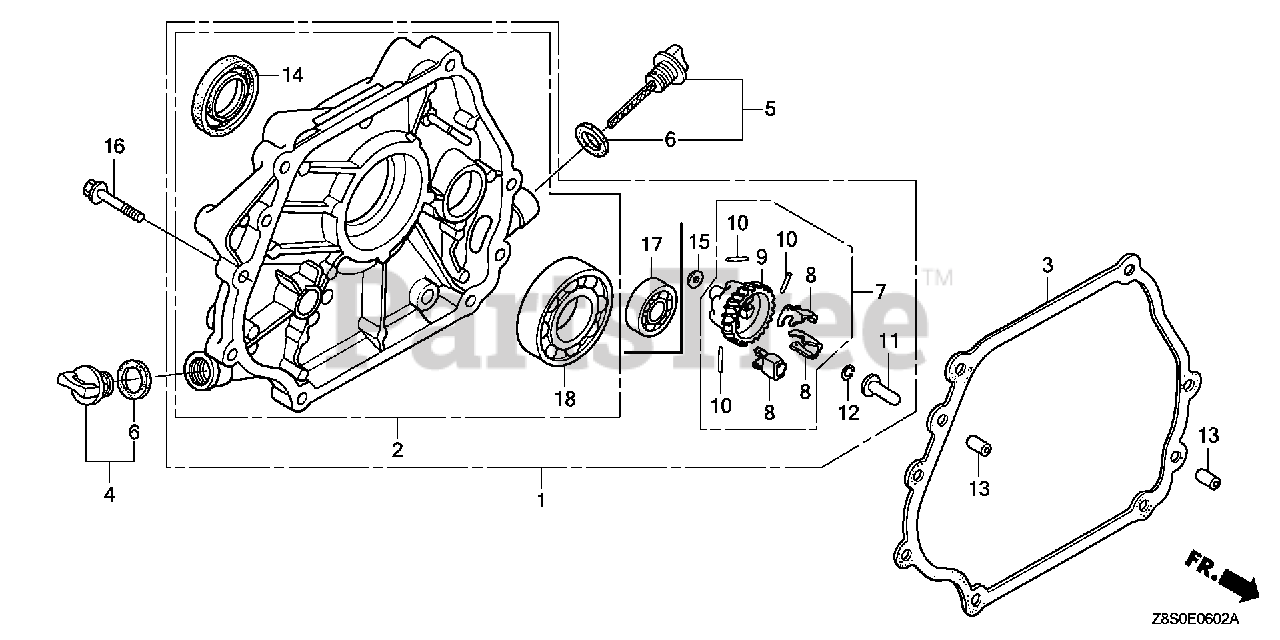

CRANKCASE COVER (3) Parts Diagram

  • Title

1

Honda 11300-Z5K-810

COVER ASSY., CRANKCASE

$81.99

$

Usually ships in 3-6 days

0

3

Honda 11381-Z5K-000

GASKET, CASE COVER

$7.49

$

In Stock, Qty 8

0

4

Honda 15600-Z0T-820

CAP ASSY., OIL FILLER (Honda Code 7346570).

$1.49

$

In Stock, Qty 5

0

5

Honda 15600-Z1C-000

CAP ASSY., OIL FILLER

$7.99

$

In Stock, Qty 10

0

6

Honda 15625-Z0T-800

GASKET, OIL FILLER CAP (Honda Code 7346588).

$4.99

$

In Stock, Qty 19

0

7

Honda 16510-ZE3-000

GOVERNOR ASSY. (Honda Code 3713187).

$33.99

$

Usually ships in 3-6 days

0

8

Honda 16511-ZE8-000

WEIGHT, GOVERNOR (Honda Code 2090090).

$7.99

$

Usually ships in 3-6 days

0

9

Honda 16512-ZE3-000

HOLDER, GOVERNOR WEIGHT (Honda Code 3713195).

$19.99

$

Usually ships in 3-6 days

0

10

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT (Honda Code 2025971).

$2.49

$

Usually ships in 3-6 days

0

11

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR (Honda Code 6605117).

$3.99

$

In Stock, only 3 left!

0

12

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, only 3 left!

0

13

Honda 90701-HC4-000

PIN, DOWEL (8X12) (Honda Code 2978443).

$3.99

$

In Stock, only 2 left!

0

14

Honda 91201-Z1D-003

OIL SEAL (30X46X8) (NOK ASIA)

$12.99

$

In Stock, only 2 left!

0

15

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

16

Honda 95701-08035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2724029).

$2.99

$

In Stock, only 3 left!

0

18

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206) (Honda Code 0636118).

$32.99

$

In Stock, only 1 left!

0
