GX240 RT2 VWS1/A (GCBJT) - Honda Engine, Made in Thailand (SN: GCBJT-2000001 - GCBJT-9999999) OTHER PARTS (3) Parts Diagram

Engine, Made in Thailand

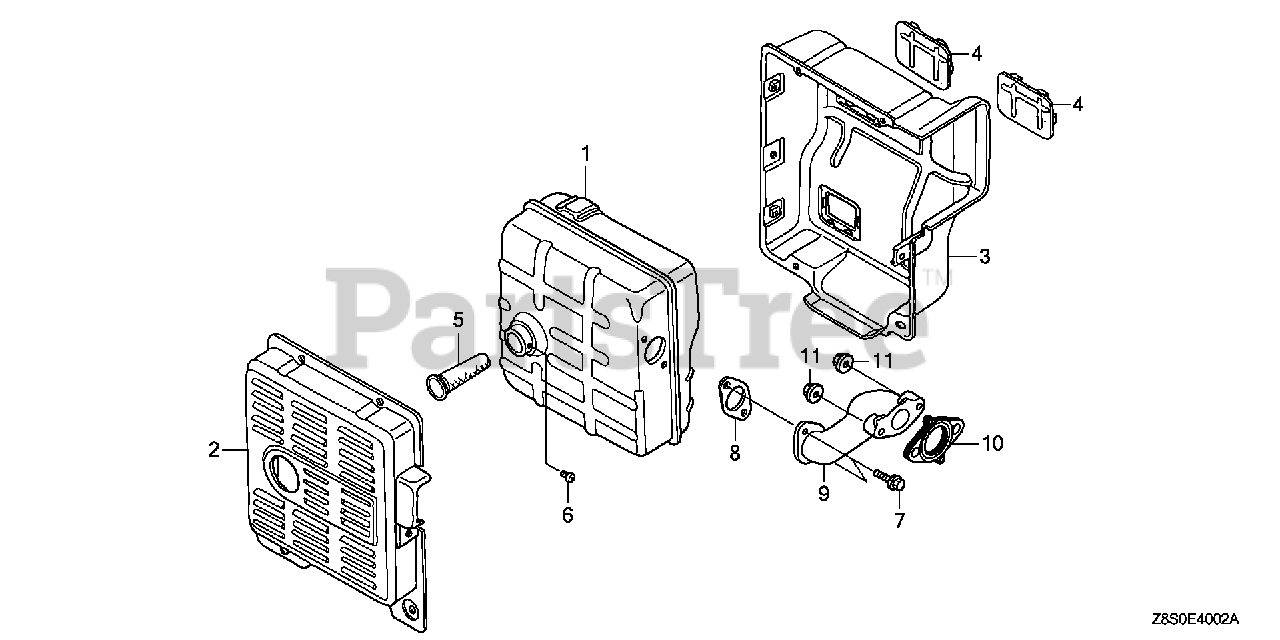

OTHER PARTS (3) Parts Diagram

  • Title
1

Honda 18310-Z8W-V62

MUFFLER (TSURUMI)

$192.99

$

Usually ships in 3-6 days

0

2

Honda 18320-ZB4-000

PROTECTOR, MUFFLER (OUTER)

$103.99

$

Usually ships in 3-6 days

0

3

Honda 18325-ZB4-000

PROTECTOR, MUFFLER (INNER)

$126.99

$

Usually ships in 3-6 days

0

4

Honda 18329-ZB4-000

SEAL, MUFFLER PROTECTOR

$12.99

$

Usually ships in 3-6 days

0

5

Honda 18355-ZB4-630

ARRESTER, SPARK

$22.99

$

Usually ships in 3-6 days

0

6

Honda 90002-Z0T-800

SCREW, TAPPING (4X8)

$0.99

$

Usually ships in 3-6 days

0

7

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606.

$2.49

$

In Stock, only 3 left!

0

8

Honda 18333-ZB4-801

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$4.49

$

In Stock, Qty 6

0

9

$70.99

$

Usually ships in 3-6 days

0

10

Honda 18333-ZF6-W01

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-Z1C-901)

$2.99

$

In Stock, Qty 7

0

10

Honda 18333-Z1C-901

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$2.99

$

In Stock, Qty 7

0

11

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0
