GX240 RT2 VWS1/A (GCBJT) - Honda Engine, Made in Thailand (SN: GCBJT-2000001 - GCBJT-9999999) AIR CLEANER (7) Parts Diagram

Engine, Made in Thailand

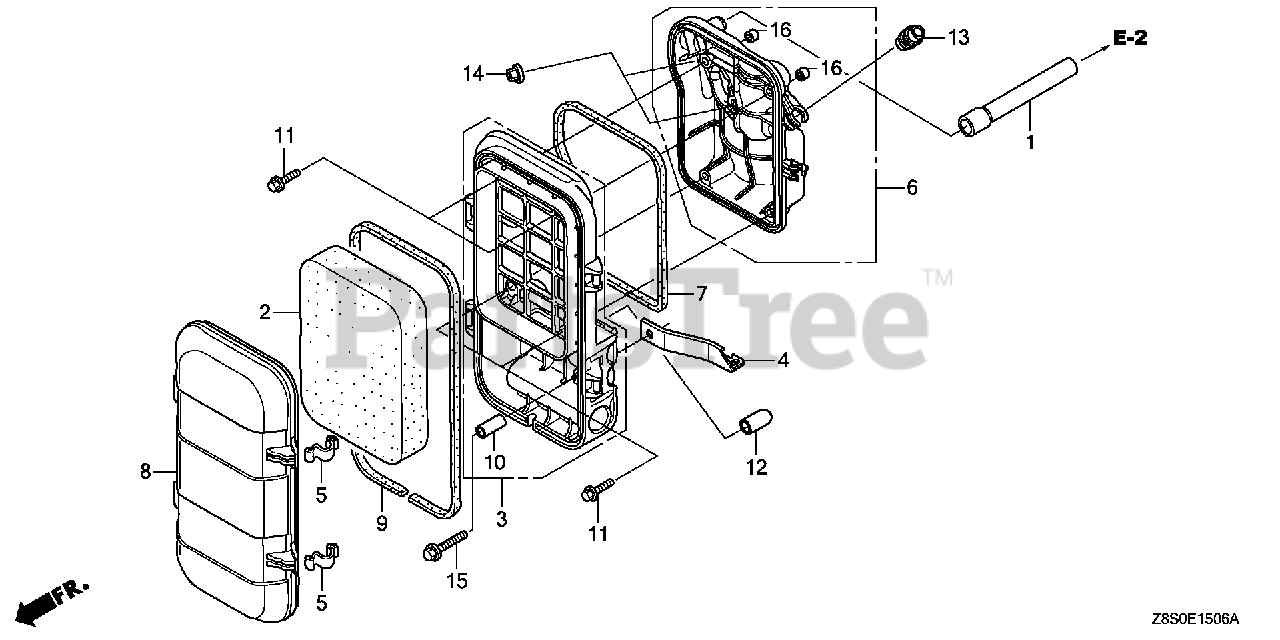

AIR CLEANER (7) Parts Diagram

  • Title

1

Honda 15721-Z23-H60

TUBE, BREATHER

$6.49

$

In Stock, only 1 left!

0

2

Honda 17211-899-000

ELEMENT, AIR CLEANER

$9.49

$

In Stock, Qty 15

0

3

Honda 17220-Z23-S30

HOUSING, AIR CLEANER

$70.99

$

In Stock, only 1 left!

0

4

Honda 17222-Z21-F60

STAY, AIR CLEANER

$8.99

$

Usually ships in 3-6 days

0

5

Honda 17223-Z23-000

SPRING, AIR CLEANER HOUSING LID

$2.99

$

In Stock, Qty 11

0

6

Honda 17223-ZBH-000

BASE, AIR CLEANER

$6.49

$

In Stock, only 1 left!

0

7

Honda 17229-Z23-H60

SEAL, AIR CLEANER HOUSING

$12.99

$

In Stock, only 1 left!

0

8

Honda 17231-ZBH-000

COVER, AIR CLEANER

$38.99

$

In Stock, only 1 left!

0

9

Honda 17233-Z23-H60

SEAL, AIR CLEANER COVER

$18.99

$

In Stock, only 1 left!

0

10

Honda 17238-ZE7-710

COLLAR, AIR CLEANER (Honda Code 2538445).

$4.49

$

In Stock, only 1 left!

0

11

Honda 90005-ZM3-000

BOLT, FLANGE (5X18)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 90802-Z6L-000

CAP, SEALING

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90854-ZB3-000

RUBBER, FUEL (9X15X20)

$4.99

$

In Stock, only 1 left!

0

14

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

15

Honda 95701-06032-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 2581361).

$2.49

$

In Stock, only 2 left!

0

16

Honda 17238-ZG9-M00

COLLAR, AIR CLEANER

$6.49

$

In Stock, only 2 left!

0
