GX240 R2 EDN2 (GCBPK) - Honda Engine, Made in Japan (SN: GCBPK-1000001 - GCBPK-9999999) MUFFLER (4) Parts Diagram

Engine, Made in Japan

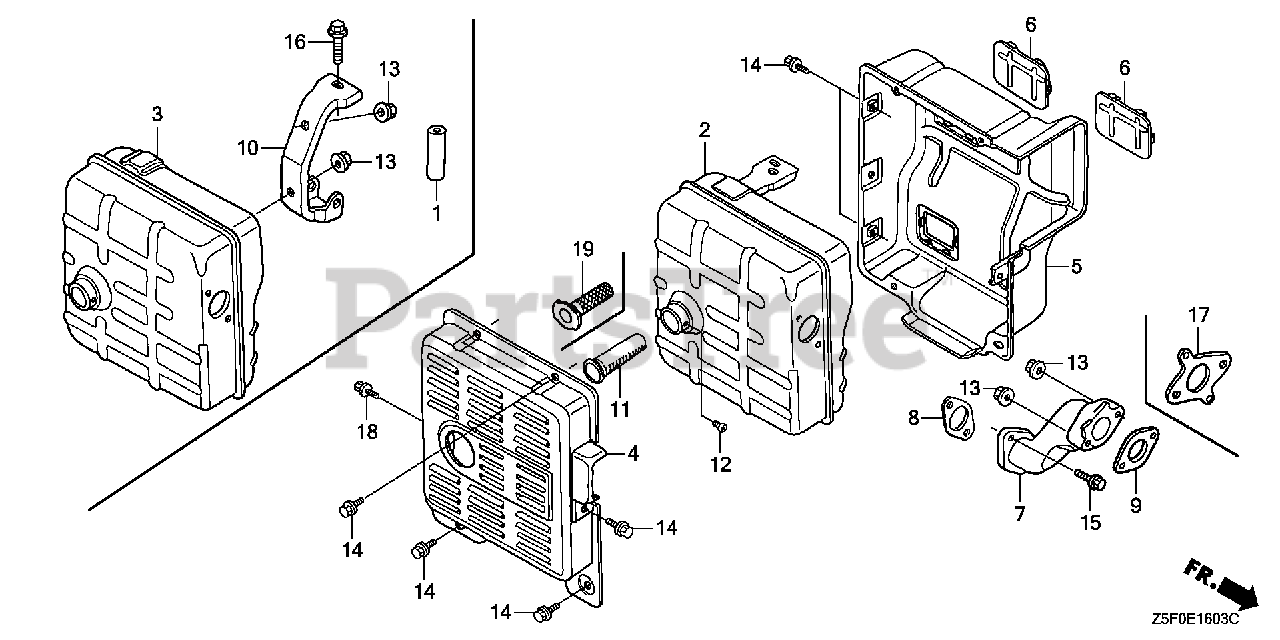

MUFFLER (4) Parts Diagram

  • Title

2

Honda 18310-ZE2-U91

SEE PART DETAILS - PRI; MUFFLER (DENYO)

$225.99

$

Usually ships in 3-6 days

0

4

Honda 18320-ZB4-000

PROTECTOR, MUFFLER (OUTER)

$107.99

$

Usually ships in 3-6 days

0

5

Honda 18325-ZB4-000

PROTECTOR, MUFFLER (INNER)

$131.99

$

Usually ships in 3-6 days

0

6

Honda 18329-ZB4-000

SEAL, MUFFLER PROTECTOR

$13.99

$

Usually ships in 3-6 days

0

7

Honda 18330-ZE2-700

PIPE, EX.

$73.99

$

Usually ships in 3-6 days

0

8

Honda 18333-ZB4-801

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$4.49

$

In Stock, only 4 left!

0

11

Honda 18355-ZB4-630

ARRESTER, SPARK

$23.99

$

Usually ships in 3-6 days

0

12

Honda 90002-ZE2-U91

SCREW, TAPPING (4X8)

$1.49

$

In Stock, only 2 left!

0

13

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

14

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

15

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606.

$2.49

$

In Stock, only 3 left!

0

17

Honda 18333-ZF6-W01

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-Z1C-901)

$3.49

$

In Stock, Qty 6

0

17

Honda 18333-Z1C-901

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$3.49

$

In Stock, Qty 6

0

18

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

19

Honda 18355-ZE2-010

SEE PART DETAILS - PRI; ARRESTER, SPARK (Honda Code 2482594).

Note: (Optional).

$26.99

$

Usually ships in 3-6 days

0
