GX240 R2 EDN2 (GCBPK) - Honda Engine, Made in Japan (SN: GCBPK-1000001 - GCBPK-9999999) CRANKCASE COVER (2) Parts Diagram

Engine, Made in Japan

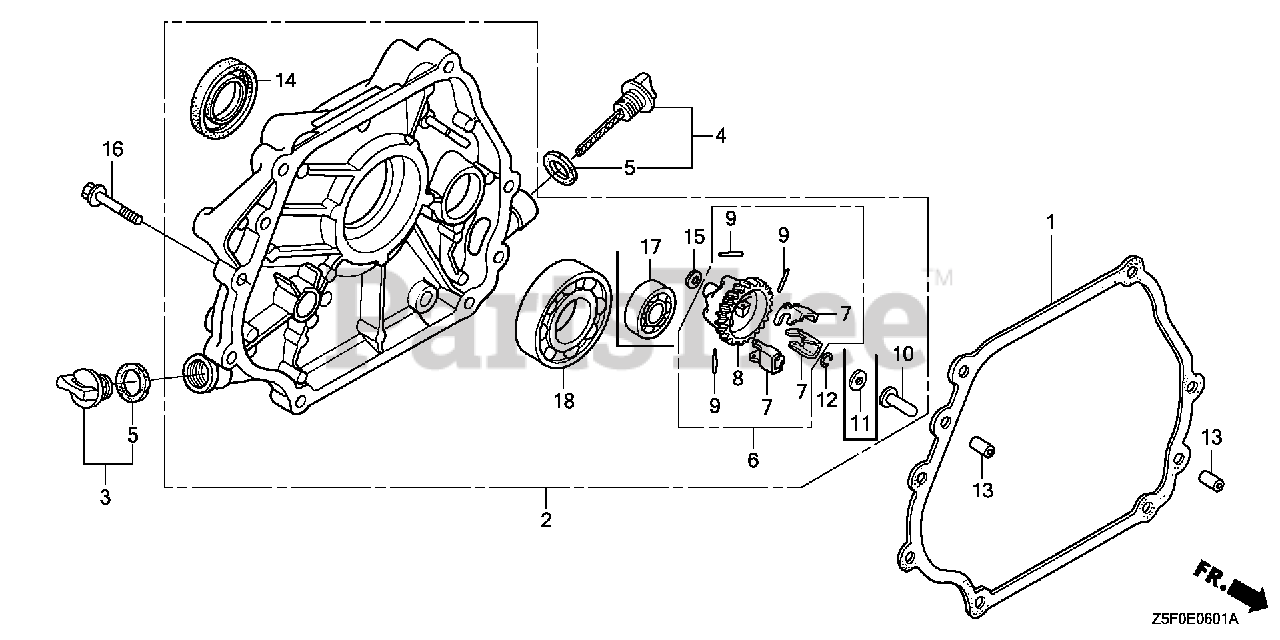

CRANKCASE COVER (2) Parts Diagram

  • Title
1

Honda 11381-Z5K-000

GASKET, CASE COVER

$6.99

$

In Stock, only 1 left!

0

2

Honda 11300-ZBA-W20

COVER ASSY., CRANKCASE

$176.99

$

Usually ships in 3-6 days

0

3

Honda 15600-ZG4-003

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER

$6.99

$

Usually ships in 3-6 days

0

4

Honda 15600-735-003

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER (Honda Code 4523106).

$8.49

$

Usually ships in 3-6 days

0

5

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP (Honda Code 4497947).

$3.49

$

In Stock, only 2 left!

0

6

Honda 16510-ZE3-000

GOVERNOR ASSY. (Honda Code 3713187).

$31.99

$

In Stock, only 1 left!

0

7

Honda 16511-ZE8-000

WEIGHT, GOVERNOR (Honda Code 2090090).

$7.99

$

Usually ships in 3-6 days

0

8

Honda 16512-ZE3-000

HOLDER, GOVERNOR WEIGHT (Honda Code 3713195).

$18.99

$

Usually ships in 3-6 days

0

9

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT (Honda Code 2025971).

$2.49

$

Usually ships in 3-6 days

0

10

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR (Honda Code 6605117).

$3.99

$

In Stock, Qty 5

0

12

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, Qty 7

0

13

Honda 90701-HC4-000

PIN, DOWEL (8X12) (Honda Code 2978443).

$3.99

$

In Stock, only 2 left!

0

14

Honda 91201-889-003

SEE PART DETAILS - PRI; OIL SEAL (30X45X8)

$11.99

$

Usually ships in 3-6 days

0

14

Honda 91201-890-003

OIL SEAL (30X46X8) (Honda Code 0756494).

$11.99

$

Usually ships in 3-6 days

0

15

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 9

0

16

Honda 95701-08035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2724029).

$2.99

$

In Stock, Qty 5

0

18

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206) (Honda Code 0636118).

$30.99

$

In Stock, only 1 left!

0
