GX240 QAE0 (GC04) - Honda Engine, Made in Japan (SN: GC04-1000001 - GC04-1528199) CONTROL BOX Parts Diagram

Engine, Made in Japan

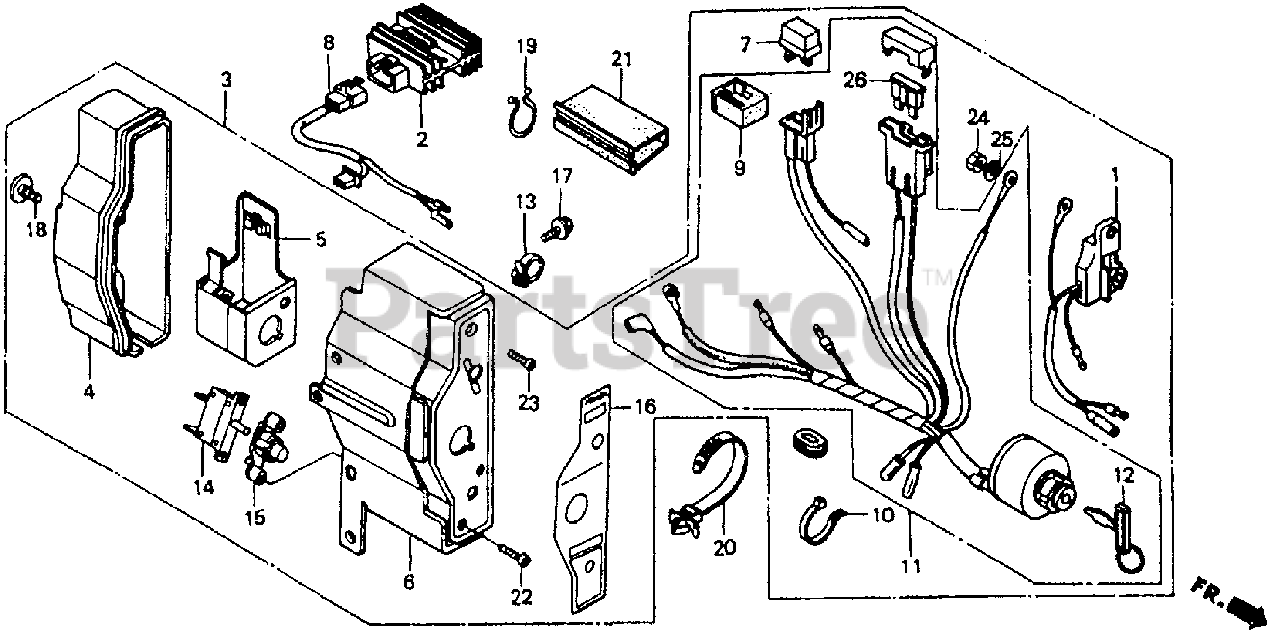

CONTROL BOX Parts Diagram

  • Title

1

Honda 15520-ZE2-822

ALERT UNIT, OIL (SEL) (Honda Code 2095222).

$

$

Not available

2

Honda 31600-ZE2-861

RECTIFIER ASSY., REGULATOR (Honda Code 2534915).

$230.99

$

Usually ships in 3-6 days

0

3

Honda 31610-ZE2-872ZB

BOX ASSY., CONTROL (10A) *R8* (Honda Code 4328779). (EXTERNAL-ALERT) (BRIGHT RED)

$

$

Currently unavailable

4

Honda 31612-ZE2-003

CASE, CONTROL (Honda Code 2095875).

$22.99

$

Usually ships in 3-6 days

0

5

Honda 31614-ZE2-003

BRACKET, CASE MOUNTING (Honda Code 2095883).

$18.99

$

Usually ships in 3-6 days

0

6

Honda 31615-ZE2-003ZB

PANEL, CONTROL *R8**R8* (Honda Code 4089215). (BRIGHT RED)
(Superseded to 31615-ZE2-003ZG)

$30.99

$

In Stock, only 1 left!

0

8

Honda 32110-ZE2-860

SUB-WIRE HARNESS ASSY. (Honda Code 2534931).

$48.99

$

Usually ships in 3-6 days

0

10

Honda 32902-892-003

BAND (Honda Code 0947457).

$4.99

$

In Stock, only 1 left!

0

11

Honda 35100-ZE2-862

SWITCH ASSY., COMBINATION (Honda Code 3713427).

$167.99

$

Usually ships in 3-6 days

0

12

Honda 35111-880-003

SEE PART DETAILS - SUP; KEY (Honda Code 0485706).
(Superseded to 35111-880-013)

$11.99

$

In Stock, only 3 left!

0

12

Honda 35111-880-013

SEE PART DETAILS - PRI; KEY (Honda Code 7635063).

$11.99

$

In Stock, only 3 left!

0

13

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE (Honda Code 1429141).

$2.99

$

In Stock, only 1 left!

0

16

Honda 87529-ZE2-870

MARK, CONTROL BOX (Honda Code 2537074). (EXTERNAL-ALERT-REG)

$

$

Not available

17

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

18

Honda 90380-MA6-010

SCREW, SPECIAL (6X12) (Honda Code 1490648).

$4.49

$

Usually ships in 3-6 days

0

19

Honda 90630-751-000

CLIP, PURSE LOCK (Honda Code 2159598).

$2.99

$

Usually ships in 3-6 days

0

20

Honda 90672-SA0-003

STRAP, CABLE (118MM) *NH1L* (Honda Code 1170653). (BLACK)

$9.99

$

In Stock, only 1 left!

0

21

Honda 91406-ZE2-003

TUBE, FASTENER (30) (Honda Code 2159762).

$7.49

$

Usually ships in 3-6 days

0

23

Honda 93500-04012-0H

SCREW, PAN (4X12) (Honda Code 0285643).

$1.49

$

In Stock, Qty 10

0

24

Honda 94001-04390-0S

NUT, HEX. (4MM) (Honda Code 0499707).

$1.49

$

Usually ships in 3-6 days

0

25

Honda 94111-04800

WASHER, SPRING (4MM) (Honda Code 0346114).

$1.49

$

Usually ships in 3-6 days

0

26

Honda 98200-31500

FUSE, BLADE (15A) (Honda Code 1644244).

$1.99

$

In Stock, Qty 6

0
