GX240 QAE (GC04) - Honda Engine, Made in Japan (SN: GC04-1000001 - GC04-1528199) STARTER MOTOR Parts Diagram

Engine, Made in Japan

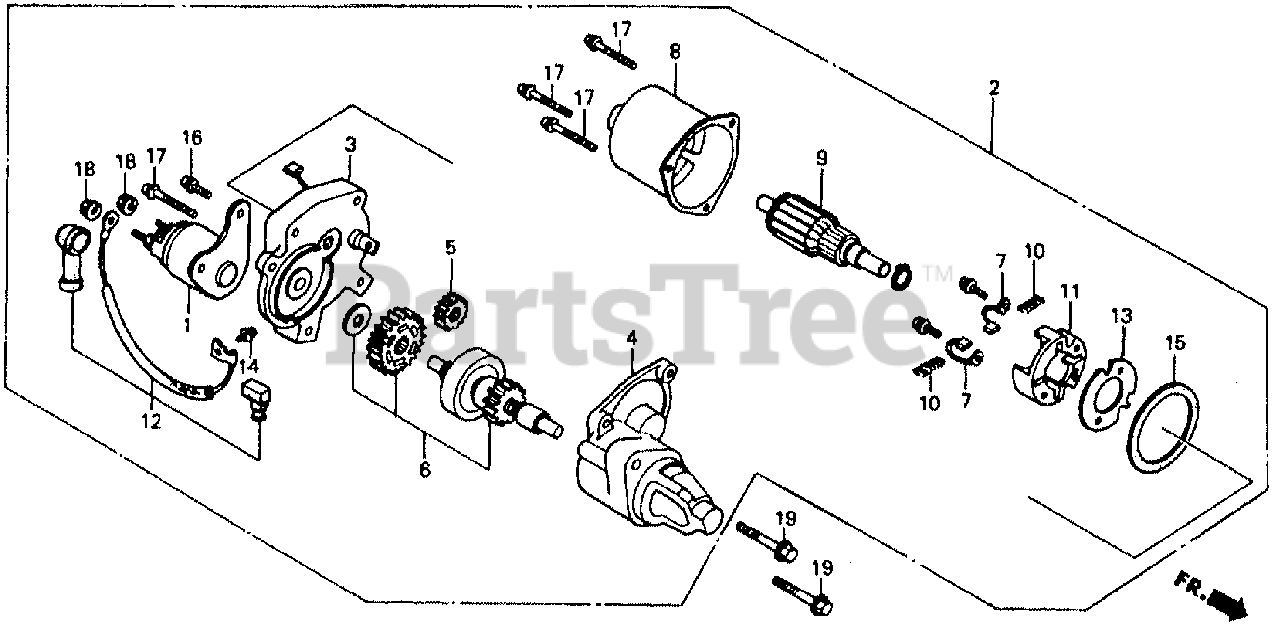

STARTER MOTOR Parts Diagram

  • Title
1

Honda 31204-ZA0-003

SEE PART DETAILS - PRI; CONTACTOR ASSY. (Honda Code 2108298).

$149.99

$

In Stock, only 1 left!

0

2

Honda 31210-ZE2-003

MOTOR UNIT, STARTER (Honda Code 2026425).

$568.99

$

Usually ships in 3-6 days

0

3

Honda 31211-ZE2-003

BRACKET, CENTER (Honda Code 2026433).

$114.99

$

Usually ships in 3-6 days

0

4

Honda 31212-ZE2-003

BRACKET, FR. (Honda Code 2026441).

$137.99

$

Usually ships in 3-6 days

0

5

Honda 31213-ZE2-003

GEAR, DRIVE PINION (Honda Code 2026458).

$58.99

$

Usually ships in 3-6 days

0

6

Honda 31214-ZE2-003

CLUTCH, OVERRUNNING (Honda Code 2026466).

$311.99

$

Usually ships in 3-6 days

0

7

Honda 31215-ZE2-003

BRUSH (Honda Code 2026474).

$13.99

$

In Stock, only 2 left!

0

8

Honda 31216-ZE2-003

YOKE (Honda Code 2026482).

$48.99

$

Usually ships in 3-6 days

0

9

Honda 31217-ZE2-003

ARMATURE (Honda Code 2026490).

$88.99

$

Usually ships in 3-6 days

0

10

Honda 31219-ZE2-003

SPRING, BRUSH RETURN (Honda Code 2026508).

$4.49

$

In Stock, only 2 left!

0

11

Honda 31231-ZE2-003

HOLDER, BRUSH (Honda Code 2026516).

$15.99

$

Usually ships in 3-6 days

0

12

Honda 31232-ZE2-013

WIRE, WATER COVER (Honda Code 2158335).

$6.49

$

Usually ships in 3-6 days

0

13

Honda 31233-ZE2-003

INSULATOR (Honda Code 2026524).

$14.99

$

Usually ships in 3-6 days

0

14

Honda 90110-ZE2-003

SCREW-WASHER (4X6) (Honda Code 2027100).

$3.49

$

Usually ships in 3-6 days

0

15

Honda 91601-ZE2-003

GASKET (Honda Code 2027266).

$8.49

$

Usually ships in 3-6 days

0

16

Honda 93892-05014-08

SCREW-WASHER (5X14) (Honda Code 0660720).

$1.49

$

Usually ships in 3-6 days

0

17

Honda 93892-05032-08

SCREW-WASHER (5X3) (Honda Code 1171891).

$1.99

$

In Stock, Qty 6

0

18

Honda 94070-06080

NUT-WASHER (6MM) (Honda Code 0660795).

$1.99

$

Usually ships in 3-6 days

0

19

Honda 95700-08040-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X40) (Honda Code 0671222).
(Superseded to 95701-08040-00)

$1.99

$

In Stock, Qty 20+

0

19

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) (Honda Code 2298404).

$1.99

$

In Stock, Qty 20+

0
