GX240 QAE (GC04) - Honda Engine, Made in Japan (SN: GC04-1000001 - GC04-1528199) CONTROL BOX (2) Parts Diagram

Engine, Made in Japan

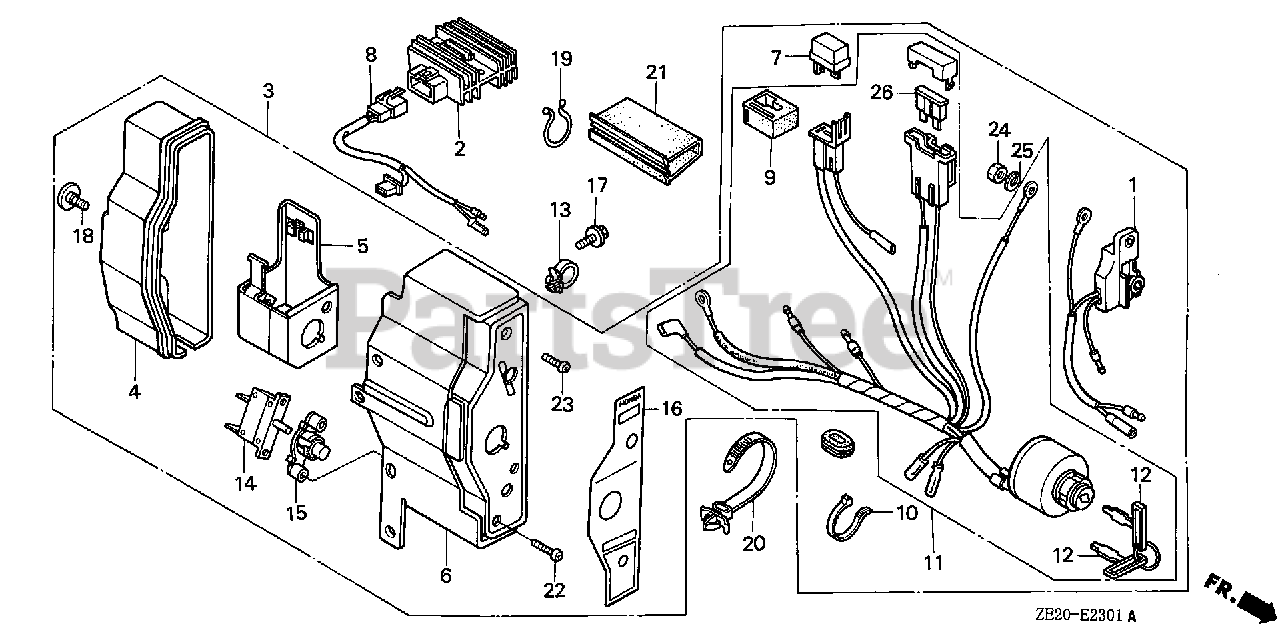

CONTROL BOX (2) Parts Diagram

  • Title

1

Honda 15520-ZE2-822

ALERT UNIT, OIL (SEL)

$

$

Not available

3

Honda 31610-ZE2-832ZB

BOX ASSY., CONTROL *R8* (ALERT) (BRIGHT RED) (NOT AVAILABLE)

Note: Use up to Engine SN 1479500.

$

$

Currently unavailable

3

Honda 31610-ZE2-852ZB

BOX ASSY., CONTROL (3A) *R8* (EXP-ALERT) (BRIGHT RED) (NOT AVAILABLE)

Note: Use from Engine SN 1479501.

$

$

Currently unavailable

4

Honda 31612-ZE2-003

CASE, CONTROL

$21.99

$

In Stock, only 1 left!

0

5

Honda 31614-ZE2-003

BRACKET, CASE MOUNTING

$17.99

$

Usually ships in 3-6 days

0

6

Honda 31615-ZE2-003ZG

PANEL, CONTROL *R280* (POWER RED)

$29.99

$

Usually ships in 3-6 days

0

7

Honda 31700-124-008

SEE PART DETAILS - PRI; RECTIFIER ASSY., SILICON (SHINDENGEN)

$39.99

$

In Stock, only 1 left!

0

9

Honda 32127-738-700

SUSPENSION, CONNECTOR

$4.99

$

Usually ships in 3-6 days

0

10

Honda 32902-892-003

BAND

$4.99

$

In Stock, only 2 left!

0

11

Honda 35100-ZE2-033

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION

Note: Use up to Engine SN 1479500.

$116.99

$

Usually ships in 3-6 days

0

11

Honda 35100-ZE2-842

SEE PART DETAILS - SUP; SWITCH ASSY., COMBINATION (3A-CHARGE)

Note: Use from Engine SN 1479501.

$

$

Not available

11

Honda 35100-ZE2-843

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION (3A-CHARGE)

Note: Use from Engine SN 1479501.

$122.99

$

Usually ships in 3-6 days

0

12

Honda 35111-880-013

KEY

$11.99

$

In Stock, only 3 left!

0

13

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE

$2.49

$

In Stock, only 1 left!

0

14

Honda 38240-VA3-900

PROTECTOR, CIRCUIT (1.0A)

Note: Use up to Engine SN 1479500.

$33.99

$

Usually ships in 3-6 days

0

14

Honda 38240-ZE2-840

PROTECTOR, CIRCUIT (3.5A)

Note: Use from Engine SN 1479501.

$32.99

$

Usually ships in 3-6 days

0

15

Honda 38250-ZA8-701

LENS ASSY., PROTECTOR

$19.99

$

Usually ships in 3-6 days

0

16

Honda 87529-ZE2-831

PANEL, CONTROL BOX (EXTERNAL-ALERT) (NOT AVAILABLE)

$

$

Not available

17

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

18

Honda 90380-MA6-010

SCREW, SPECIAL (6X12)

$4.49

$

Usually ships in 3-6 days

0

19

Honda 90630-751-000

CLIP, PURSE LOCK

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90672-SA0-003

STRAP, CABLE (118MM) (BLACK)

$9.99

$

Usually ships in 3-6 days

0

21

Honda 91406-ZE2-003

TUBE, FASTENER (30MM)

$6.99

$

Usually ships in 3-6 days

0

22

Honda 93500-03012-0H

SCREW, PAN (3X12)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 93500-04012-0H

SCREW, PAN (4X12)

$1.49

$

In Stock, Qty 10

0

24

Honda 94001-04390-0S

NUT, HEX. (4MM)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 94111-04800

WASHER, SPRING (4MM)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 98200-30500

FUSE, BLADE (5A)

Note: Use up to Engine SN 1479500.

$1.99

$

In Stock, Qty 5

0

26

Honda 98200-31500

FUSE, BLADE (15A)

Note: Use from Engine SN 1479501.

$1.99

$

In Stock, Qty 6

0
