GX240 QAE (GC04) - Honda Engine, Made in Japan (SN: GC04-1000001 - GC04-1528199) CONTROL Parts Diagram

Engine, Made in Japan

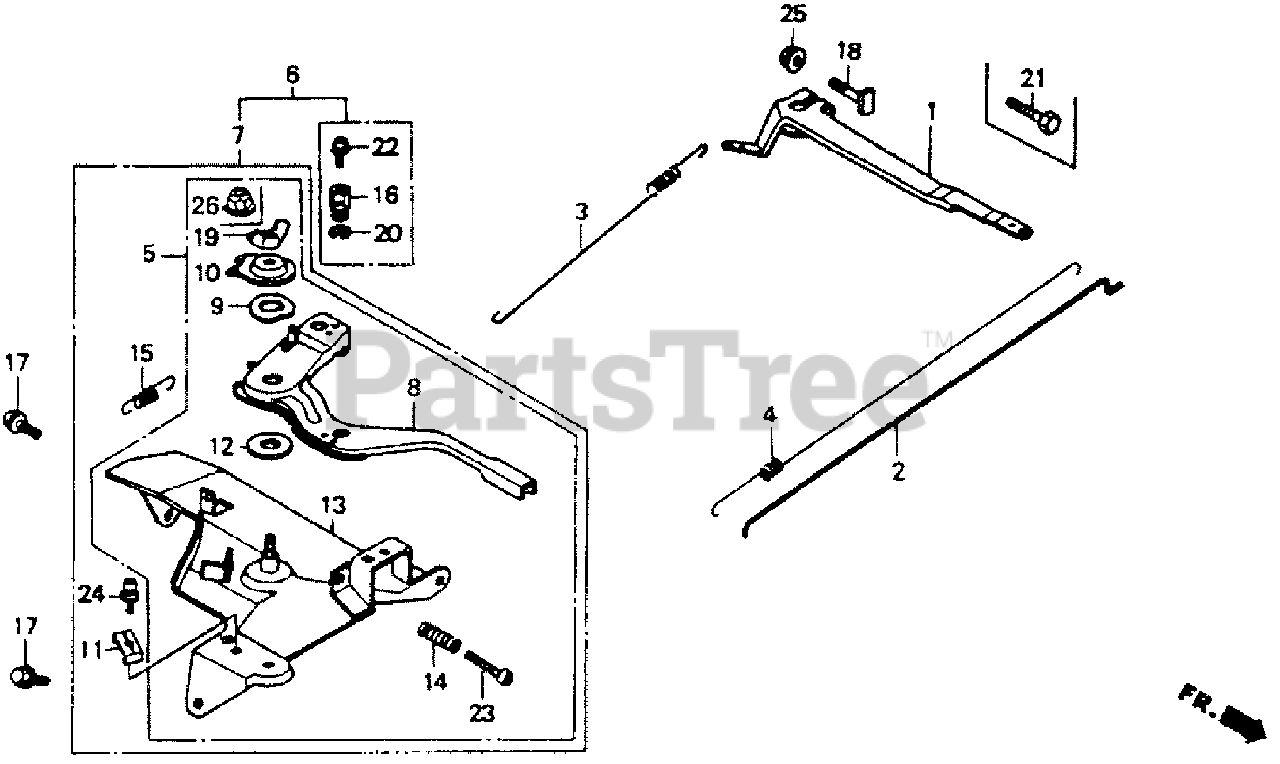

CONTROL Parts Diagram

  • Title

NI

Honda 90114-SA0-000

NUT, SELF-LOCK (6MM) (Honda Code 1410182).

Note: Use from Engine SN 1519064.

$4.49

$

In Stock, Qty 20+

0

1

Honda 16551-ZE2-000

ARM, GOVERNOR (Honda Code 2026003).

$18.99

$

Usually ships in 3-6 days

0

2

Honda 16555-ZE2-000

ROD, GOVERNOR (Honda Code 2026011).

$5.49

$

In Stock, only 1 left!

0

3

Honda 16561-ZE2-000

SPRING, GOVERNOR (Honda Code 2026029).

$5.99

$

In Stock, Qty 11

0

4

Honda 16562-ZE2-000

SPRING, THROTTLE RETURN (Honda Code 2026037).

$4.99

$

In Stock, Qty 11

0

7

Honda 16570-ZE2-W20

CONTROL ASSY. (REMOTE) (Honda Code 3678653).

$49.99

$

In Stock, only 1 left!

0

8

Honda 16571-ZE2-W00

SEE PART DETAILS - PRI; LEVER, CONTROL (Honda Code 3678661).

$13.99

$

In Stock, only 1 left!

0

9

Honda 16574-ZE1-000

SPRING, LEVER (Honda Code 1427384).

$4.49

$

In Stock, only 2 left!

0

10

Honda 16575-ZE2-W00

WASHER, CONTROL LEVER (Honda Code 3678679).

$5.49

$

Usually ships in 3-6 days

0

10

Honda 16575-ZE2-000

WASHER, CONTROL LEVER (Honda Code 2026078).

Note: Use up to Engine SN 1519063.

$

$

Not available

11

Honda 16576-891-000

HOLDER, CABLE (Honda Code 0800466).

$4.99

$

Usually ships in 3-6 days

0

12

Honda 16578-ZE1-000

SPACER, CONTROL LEVER (Honda Code 1427400).

$5.49

$

In Stock, only 4 left!

0

13

Honda 16581-ZE2-W00

SEE PART DETAILS - PRI; BASE, CONTROL (Honda Code 3678687).

$19.99

$

Usually ships in 3-6 days

0

13

Honda 16581-ZE2-010

SEE PART DETAILS - SUP; BASE, CONTROL (Honda Code 2413318).

$19.99

$

Usually ships in 3-6 days

0

13

Honda 16581-ZE2-010

SEE PART DETAILS - SUP; BASE, CONTROL (Honda Code 2413318).

Note: Use up to Engine SN 1519063.

$19.99

$

Usually ships in 3-6 days

0

14

Honda 16584-883-300

SPRING, CONTROL ADJUSTING (Honda Code 0636431).

$4.99

$

In Stock, Qty 7

0

15

Honda 16592-883-310

SPRING, CABLE RETURN (Honda Code 0743203).

$3.49

$

In Stock, only 2 left!

0

17

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

18

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM (Honda Code 2418671).

Note: Use from Engine SN 1094202.

$3.49

$

In Stock, only 3 left!

0

19

Honda 90352-883-003

WINGNUT (6MM) (Honda Code 0724492).

Note: Use up to Engine SN 1519063.

$

$

Not available

21

Honda 92101-06022-0A

BOLT, HEX. (6X22) (Honda Code 3453982).

Note: Use up to Engine SN 1094201.

$2.49

$

Usually ships in 3-6 days

0

23

Honda 93500-05028-0A

SCREW, PAN (5X28) (Honda Code 0171819).

$1.49

$

In Stock, Qty 5

0

24

Honda 93500-05016-0A

SCREW, PAN (5X16) (Honda Code 0145557).

Note: Use from Engine SN 1519064.

$1.49

$

In Stock, Qty 7

0

24

Honda 93893-05016-00

SCREW-WASHER (5X16) (Honda Code 0821512).

Note: Use up to Engine SN 1519063.

$1.49

$

Usually ships in 3-6 days

0

25

Honda 94050-06000

NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
