GX240 QA (GC04) - Honda Engine, Made in Japan (SN: GC04-1000001 - GC04-1528199) CYLINDER HEAD Parts Diagram

Engine, Made in Japan

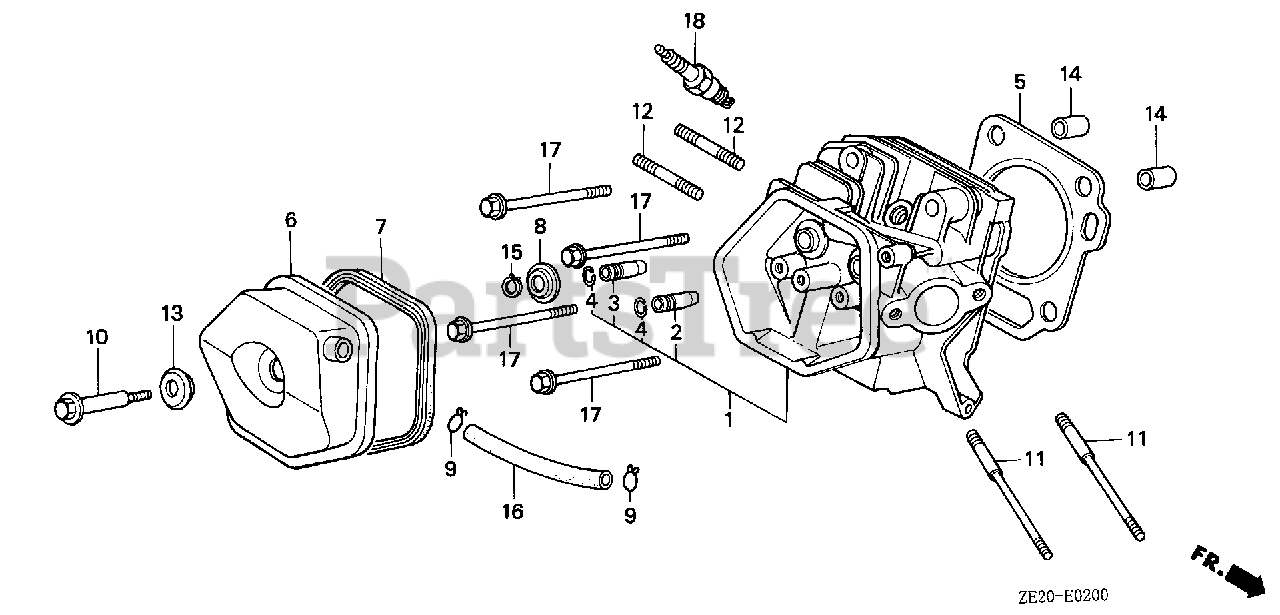

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 122A0-ZE2-000

CYLINDER HEAD

Note: Use up to Engine SN 1000440.

$

$

Currently unavailable

1

Honda 122A0-ZE2-010

CYLINDER HEAD

Note: Use from Engine SN 1000441 to 1003216.

$

$

Currently unavailable

1

Honda 122A0-ZE2-020

CYLINDER HEAD

Note: Use from Engine SN 1003217 to 1014289.

$

$

Currently unavailable

1

Honda 122A0-ZE2-030

CYLINDER HEAD (NOT AVAILABLE)

Note: Use from Engine SN 1014290.

$

$

Not available

2

Honda 12204-ZE2-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE)

Note: (Optional).

$

$

Not available

3

Honda 12205-ZE2-305

GUIDE, EX. VALVE (OVER SIZE)

Note: (Optional).

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE

$2.49

$

In Stock, Qty 5

0

5

Honda 12251-ZE2-800

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD
(Superseded to 12251-ZE2-801)

$14.99

$

Usually ships in 3-6 days

0

5

Honda 12251-ZE2-801

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$14.99

$

Usually ships in 3-6 days

0

6

Honda 04108-ZE2-000

COVER KIT, HEAD

Note: Use from Engine SN 1014290.

$

$

Not available

6

Honda 12310-ZE2-000

COVER, HEAD (NOT AVAILABLE)

Note: Use up to Engine SN 1014289.

$

$

Currently unavailable

7

Honda 12391-ZE2-000

SEE PART DETAILS - SUP; GASKET, HEAD COVER
(Superseded to 12391-ZE2-020)

Note: Use up to Engine SN 1086328.

$11.99

$

In Stock, Qty 20+

0

7

Honda 12391-ZE2-020

SEE PART DETAILS - PRI; GASKET, HEAD COVER

$11.99

$

In Stock, Qty 20+

0

8

Honda 14775-ZE2-010

SEAT, VALVE SPRING

$3.99

$

In Stock, only 2 left!

0

10

Honda 90014-ZE2-000

BOLT, HEAD COVER

$6.99

$

In Stock, only 1 left!

0

11

Honda 90042-ZE2-000

BOLT, STUD (8X123)

$8.99

$

In Stock, only 2 left!

0

12

Honda 90047-ZE2-000

BOLT, STUD (8X47)

$3.99

$

Usually ships in 3-6 days

0

13

Honda 90441-ZE2-010

WASHER, HEAD COVER

$6.49

$

In Stock, Qty 16

0

14

Honda 94301-12200

PIN, DOWEL (12X20)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 94510-11000

CIRCLIP (OUTER) (11MM)

$0.99

$

Usually ships in 3-6 days

0

16

Honda 95005-11001-30M

BULK HOSE, VACUUM (11X1000) (11X105)

Note: Use from Engine SN 1014290.

$38.99

$

Usually ships in 3-6 days

0

16

Honda 95005-80001-30M

BULK HOSE, VACUUM (8X1000) (8X100)

Note: Use up to Engine SN 1014289.

$17.99

$

Usually ships in 3-6 days

0

17

Honda 95701-10080-00

BOLT, FLANGE (10X80)

$4.49

$

In Stock, only 3 left!

0

18

Honda 98079-55855

SPARK PLUG (W16EPR-U) (DENSO)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

18

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK)

$3.49

$

In Stock, Qty 20+

0

18

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO)

$3.99

$

In Stock, only 1 left!

0
