GX240 PA (GC04) - Honda Engine, Made in Japan (SN: GC04-1000001 - GC04-1528199) CYLINDER Parts Diagram

Engine, Made in Japan

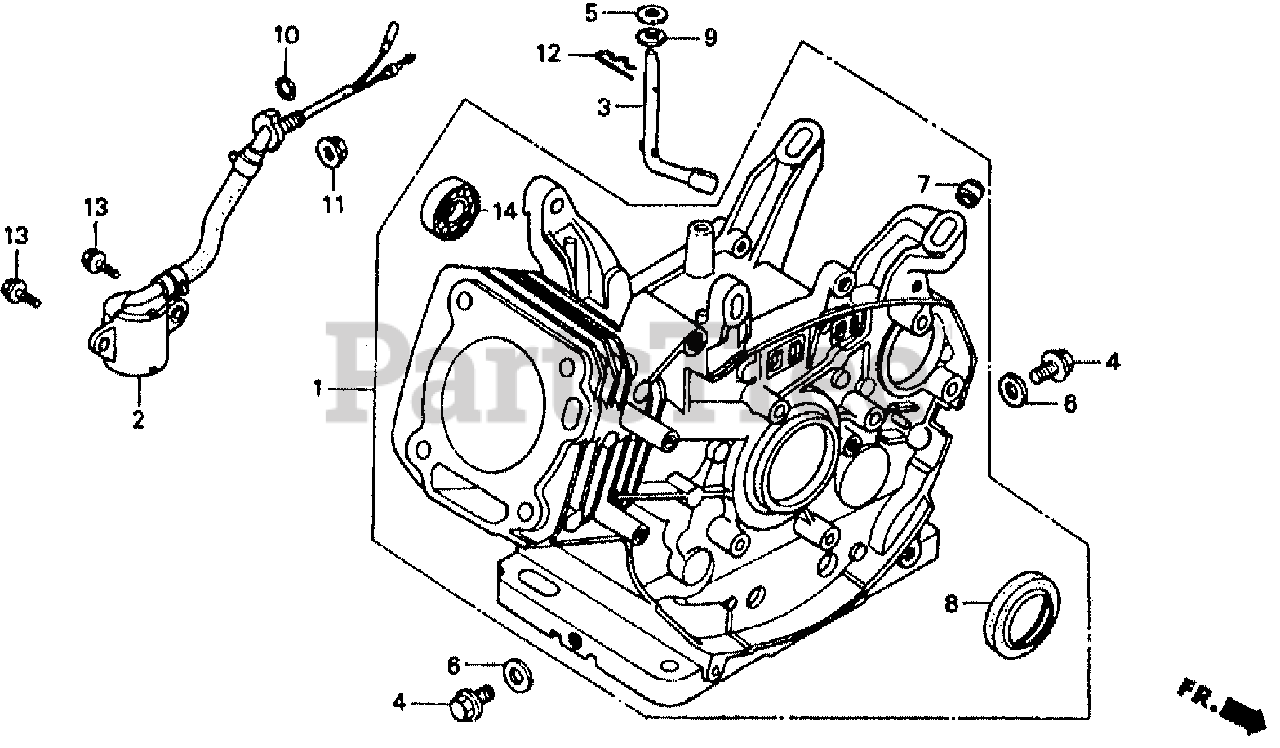

CYLINDER Parts Diagram

  • Title

1

Honda 12000-ZE2-408

SEE PART DETAILS - PRI; CYLINDER ASSY. (Honda Code 7759624). (BALANCER+OIL ALERT)

$706.99

$

Usually ships in 3-6 days

0

2

Honda 15510-ZE2-033

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL (Honda Code 5361605).
(Superseded to 15510-ZE2-053)

$60.99

$

In Stock, only 1 left!

0

2

Honda 15510-ZE2-043

SEE PART DETAILS - PRI; SWITCH ASSY., OIL LEVEL (Honda Code 5792361).
(Superseded to 15510-ZE2-053)

$60.99

$

In Stock, only 1 left!

0

3

Honda 16541-ZE2-010

SHAFT, GOVERNOR ARM (Honda Code 4723227).

$12.99

$

Usually ships in 3-6 days

0

4

Honda 90131-896-650

BOLT, DRAIN PLUG (Honda Code 1986231).

$4.99

$

In Stock, Qty 12

0

5

Honda 90446-KE1-000

WASHER (8.2X17X0.8) (Honda Code 2027134).

$2.49

$

In Stock, only 1 left!

0

6

Honda 90601-ZE2-000

WASHER, DRAIN PLUG (12MM) (Honda Code 2028793).

Note: Use up to Engine SN 1518601.

$3.49

$

Usually ships in 3-6 days

0

6

Honda 94109-12000

WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

Note: Use from Engine SN 1518602.

$1.49

$

In Stock, Qty 12

0

8

Honda 91201-890-003

OIL SEAL (30X46X8) (Honda Code 0756494).

$11.99

$

In Stock, Qty 5

0

9

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5) (Honda Code 2461713).

$5.49

$

In Stock, Qty 11

0

9

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5) (Honda Code 0744326).
(Superseded to 91201-ZE9-003)

$5.49

$

In Stock, Qty 11

0

10

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI) (Honda Code 0949883).

$3.99

$

In Stock, Qty 20+

0

11

Honda 94050-10000

NUT, FLANGE (10MM) (Honda Code 0483867).

$1.99

$

In Stock, Qty 6

0

12

Honda 94251-08000

PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 13

0

13

Honda 95700-06012-00

BOLT, FLANGE (6X12) (Honda Code 0487025).

$

$

Not available

13

Honda 95701-06012-00

BOLT, FLANGE (6X12) (Honda Code 2105799).

$2.49

$

In Stock, Qty 20+

0

14

Honda 96100-62020-00

BEARING, RADIAL BALL (6202) (Honda Code 0708941).

$12.99

$

Usually ships in 3-6 days

0
