GX240 LA (GC04) - Honda Engine, Made in Japan (SN: GC04-1000001 - GC04-1528199) CRANKCASE COVER (2) Parts Diagram

Engine, Made in Japan

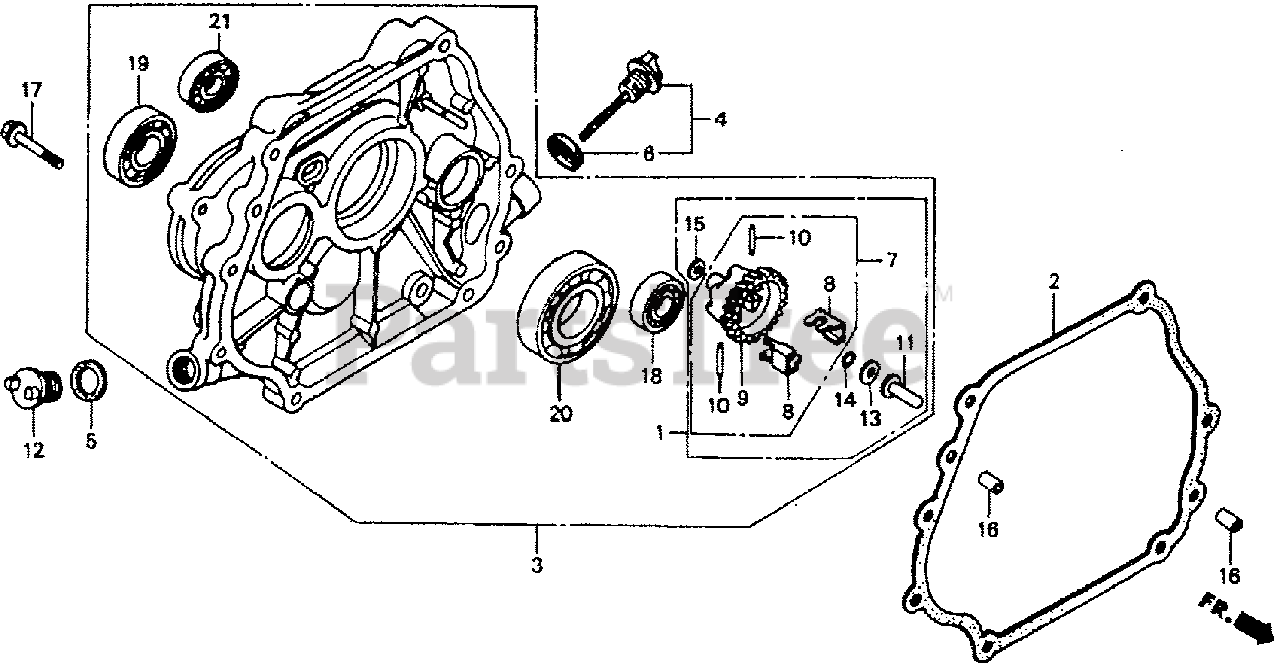

CRANKCASE COVER (2) Parts Diagram

  • Title

1

Honda 06165-ZE2-810

GOVERNOR KIT (BALANCER) (Honda Code 3313665). (NOT AVAILABLE)

Note: (Optional). Use up to Engine SN 1424914.

$

$

Currently unavailable

1

Honda 06165-ZE2-811

SEE PART DETAILS - SUP; GOVERNOR KIT (BALANCER) (Honda Code 3689460).
(Superseded to 06165-ZE2-813)

Note: (Optional). Use from Engine SN 1424915.

$19.99

$

Usually ships in 3-6 days

0

1

Honda 06165-ZE2-812

SEE PART DETAILS - SUP; GOVERNOR KIT (BALANCER) (Honda Code 7086382).
(Superseded to 06165-ZE2-813)

Note: (Optional). Use from Engine SN 1424915.

$19.99

$

Usually ships in 3-6 days

0

1

Honda 06165-ZE2-813

SEE PART DETAILS - PRI; GOVERNOR KIT (BALANCER) (Honda Code 7158785).

Note: (Optional). Use from Engine SN 1424915.

$19.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZE2-306

SEE PART DETAILS - SUP; GASKET, CASE COVER (Honda Code 4367926).
(Superseded to 11381-ZE2-801)

$11.99

$

In Stock, only 4 left!

0

2

Honda 11381-ZE2-800

SEE PART DETAILS - SUP; GASKET, CASE COVER (Honda Code 3678505).
(Superseded to 11381-ZE2-801)

$11.99

$

In Stock, only 4 left!

0

2

Honda 11381-ZE2-801

SEE PART DETAILS - PRI; GASKET, CASE COVER (Honda Code 6436851).

$11.99

$

In Stock, only 4 left!

0

3

Honda 11400-ZE2-610

COVER ASSY., CRANKCASE (Honda Code 2333037). (L-TYPE)(BALANCER)

Note: Use up to Engine SN 1494214.

$

$

Not available

3

Honda 11400-ZE2-611

SEE PART DETAILS - SUP; COVER ASSY., CRANKCASE (Honda Code 4049078). (L-TYPE)(BALANCER)
(Superseded to 11400-ZE2-613)

Note: Use from Engine SN 1494215.

$240.99

$

Usually ships in 3-6 days

0

3

Honda 11400-ZE2-613

SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE (Honda Code 7185580). (L-TYPE)(BALANCER)

Note: Use from Engine SN 1494215.

$240.99

$

Usually ships in 3-6 days

0

4

Honda 15600-735-003

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER (Honda Code 4523106).

$9.49

$

In Stock, Qty 11

0

4

Honda 15600-735-700

SEE PART DETAILS - SUP; CAP ASSY., OIL FILLER (Honda Code 2094886).

$

$

Currently unavailable

5

Honda 15621-896-010

GASKET, OIL FILLER CAP (Honda Code 1033042).

$5.99

$

In Stock, Qty 5

0

6

Honda 15625-ZE1-000

SEE PART DETAILS - SUP; GASKET, OIL FILLER CAP (Honda Code 1427079).
(Superseded to 15625-ZE1-003)

$3.49

$

In Stock, only 3 left!

0

6

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP (Honda Code 4497947).

$3.49

$

In Stock, only 3 left!

0

7

Honda 16510-ZE2-810

GOVERNOR ASSY. (BALANCER) (Honda Code 2802023).

Note: (Optional). Use up to Engine SN 1494214.

$

$

Currently unavailable

7

Honda 16510-ZE2-811

GOVERNOR ASSY. (BALANCER) (Honda Code 3690005).

Note: Use from Engine SN 1494215.

$27.99

$

Usually ships in 3-6 days

0

8

Honda 16511-ZE2-000

WEIGHT, GOVERNOR (Honda Code 2025955).

$4.49

$

Usually ships in 3-6 days

0

9

Honda 16512-ZE2-810

HOLDER, GOVERNOR WEIGHT (Honda Code 2025963).

Note: Use up to Engine SN 1494214.

$

$

Currently unavailable

9

Honda 16512-ZE2-811

HOLDER, GOVERNOR WEIGHT (Honda Code 3682010).

Note: Use from Engine SN 1494215.

$19.99

$

Usually ships in 3-6 days

0

10

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT (Honda Code 2025971).

$2.49

$

Usually ships in 3-6 days

0

11

Honda 16531-ZE2-000

SEE PART DETAILS - SUP; SLIDER, GOVERNOR (Honda Code 2025989).
(Superseded to 16531-Z0A-000)

$3.99

$

In Stock, only 3 left!

0

11

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR (Honda Code 6605117).

$3.99

$

In Stock, only 3 left!

0

12

Honda 15620-ZG4-910

CAP, OIL FILLER (Honda Code 3678596).

Note: Use up to Engine SN 1528043.

$4.99

$

Usually ships in 3-6 days

0

12

Honda 25611-735-000

CAP, OIL HOLE (Honda Code 2026326).
(Superseded to 15620-ZG4-910)

Note: Use up to Engine SN 1528043.

$4.99

$

Usually ships in 3-6 days

0

13

Honda 15620-ZG4-910

CAP, OIL FILLER (Honda Code 3678596).

Note: Use from Engine SN 1528044.

$4.99

$

Usually ships in 3-6 days

0

13

Honda 90473-147-000

SEE PART DETAILS - PRI; WASHER (6X16) (Honda Code 0465591).

$1.99

$

In Stock, only 1 left!

0

14

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, only 3 left!

0

14

Honda 90602-896-000

SEE PART DETAILS - SUP; CLIP, GOVERNOR HOLDER (Honda Code 0928101).

Note: Use up to Engine SN 1287216.

$1.99

$

Usually ships in 3-6 days

0

15

Honda 94101-06800

WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

16

Honda 90701-HC4-000

PIN, DOWEL (8X12) (Honda Code 2978443).

Note: Use from Engine SN 1342866.

$3.99

$

In Stock, only 2 left!

0

16

Honda 94301-08120

PIN A, DOWEL (8X12) (Honda Code 0069328).

Note: Use up to Engine SN 1342865.

$2.99

$

Usually ships in 3-6 days

0

17

Honda 95701-08035-00

BOLT, FLANGE (8X35) (Honda Code 2724029).

$2.99

$

In Stock, only 4 left!

0

18

Honda 96100-62020-00

BEARING, RADIAL BALL (6202) (Honda Code 0708941).

$12.99

$

In Stock, only 3 left!

0

19

Honda 96100-62040-00

BEARING, RADIAL BALL (6204) (Honda Code 0674390).

$16.99

$

In Stock, only 2 left!

0

20

Honda 96100-62060-00

BEARING, RADIAL BALL (6206) (Honda Code 0636118).

$32.99

$

In Stock, only 1 left!

0
