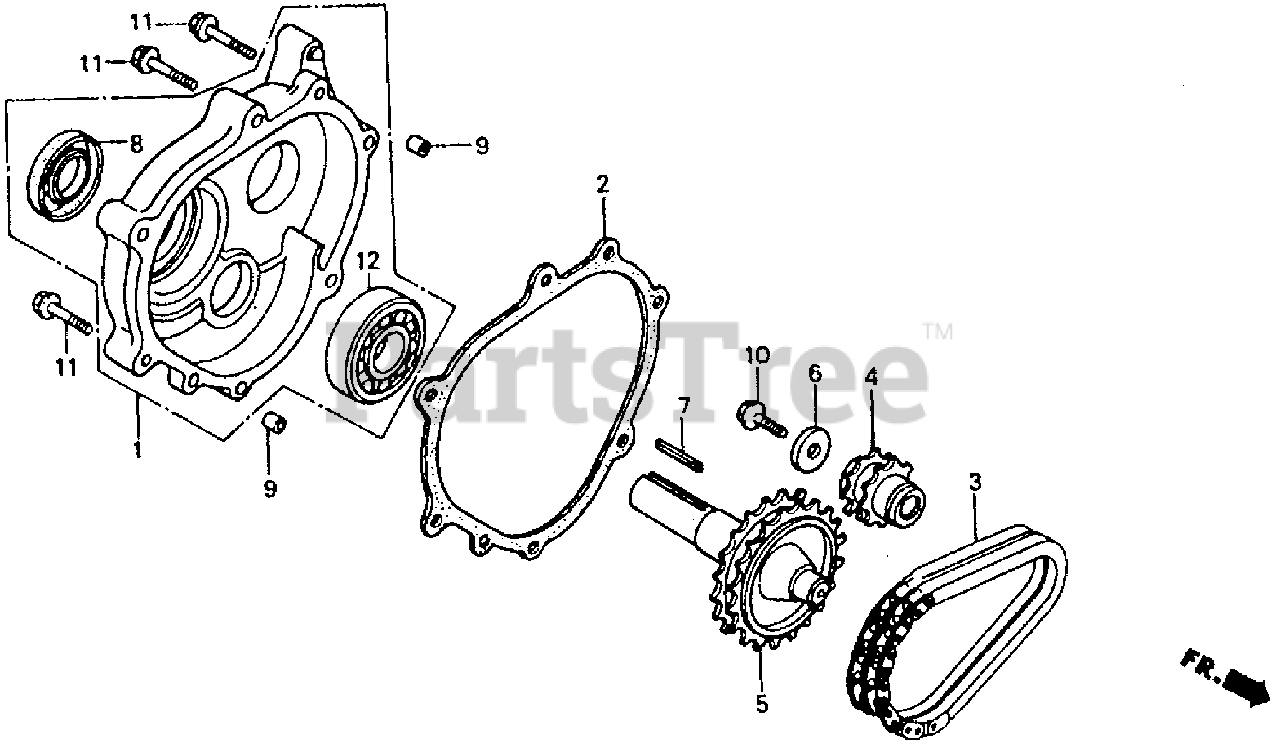

GX240 LA (GC04) - Honda Engine, Made in Japan (SN: GC04-1000001 - GC04-1528199) 1/2 REDUCTION (LA) Parts Diagram

Engine, Made in Japan

1/2 REDUCTION (LA) Parts Diagram

  • Title

1

Honda 11500-ZE2-610

COVER ASSY., CHAIN CASE (Honda Code 2333045).

$204.99

$

Usually ships in 3-6 days

0

2

Honda 11521-ZE2-800

SEE PART DETAILS - PRI; GASKET, CHAIN CASE COVER (Honda Code 3678513).

$12.99

$

In Stock, only 1 left!

0

3

Honda 14411-ZE2-611

CHAIN, P.T.O. DRIVE (Honda Code 2333052).

$110.99

$

Usually ships in 3-6 days

0

4

Honda 23110-ZE2-610

SPROCKET, DRIVE (14T) (Honda Code 2333060).

$73.99

$

Usually ships in 3-6 days

0

5

Honda 23710-ZE2-610

SHAFT, P.T.O. (28T) (L-TYPE) (Honda Code 2333078).

$239.99

$

Usually ships in 3-6 days

0

6

Honda 90473-842-000

WASHER (8MM) (Honda Code 0323295).

$2.49

$

In Stock, only 4 left!

0

7

Honda 90741-889-810

KEY (7X7X33) (Honda Code 1064039).

$9.99

$

Usually ships in 3-6 days

0

7

Honda 90741-889-810

KEY (7X7X33) (Honda Code 1064039).

Note: (Optional).

$9.99

$

Usually ships in 3-6 days

0

8

Honda 91201-890-003

OIL SEAL (30X46X8) (Honda Code 0756494).

$11.99

$

In Stock, Qty 5

0

9

Honda 90701-HC4-000

PIN, DOWEL (8X12) (Honda Code 2978443).

Note: Use up to Engine SN 1342865.

$3.99

$

In Stock, only 2 left!

0

9

Honda 94301-08120

PIN A, DOWEL (8X12) (Honda Code 0069328).

Note: Use from Engine SN 1342866.

$2.99

$

Usually ships in 3-6 days

0

10

Honda 95701-08025-00

BOLT, FLANGE (8X25) (Honda Code 2545325).

$2.49

$

In Stock, only 1 left!

0

11

Honda 95700-08040-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X40) (Honda Code 0671222).
(Superseded to 95701-08040-00)

$1.99

$

In Stock, Qty 20+

0

11

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) (Honda Code 2298404).

$1.99

$

In Stock, Qty 20+

0

12

Honda 96100-62060-00

BEARING, RADIAL BALL (6206) (Honda Code 0636118).

$32.99

$

Usually ships in 3-6 days

0
