GX240 K1 VWC2 (GC04) - Honda Engine, Made in Japan (SN: GC04-3000001 - GC04-4399999) CAMSHAFT Parts Diagram

Engine, Made in Japan

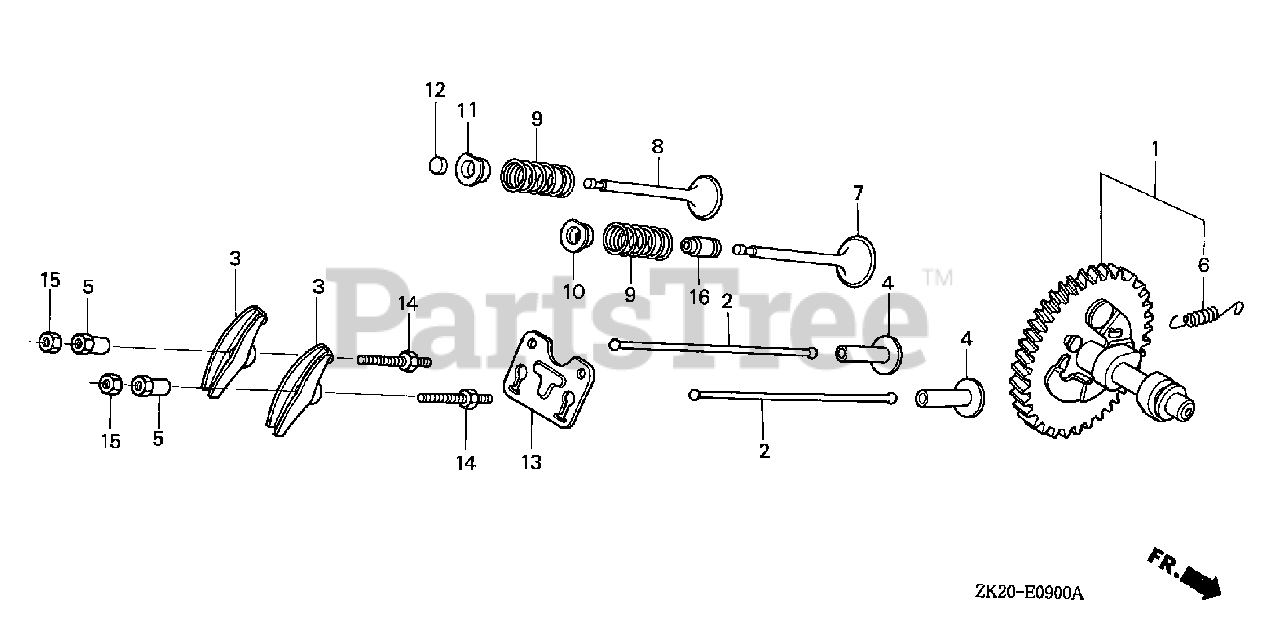

CAMSHAFT Parts Diagram

  • Title

1

Honda 14100-ZE2-W00

SEE PART DETAILS - SUP; CAMSHAFT ASSY.
(Superseded to 14100-ZE2-306)

Note: Use up to Engine SN 3620688. (Honda Code 4224382).

$

$

Not available

1

Honda 14100-ZE2-W01

CAMSHAFT ASSY.

Note: Use from Engine SN 3620689. (Honda Code 5776927).

$

$

Not available

1

Honda 14100-ZE2-306

SEE PART DETAILS - PRI; CAMSHAFT ASSY.

Note: Use up to Engine SN 3620688. (Honda Code 4730487).

$

$

Not available

2

Honda 14410-ZE2-013

SEE PART DETAILS - PRI; ROD, PUSH

Note: (Honda Code 3337169).

$9.99

$

In Stock, only 3 left!

0

3

Honda 14431-ZE2-010

SEE PART DETAILS - PRI; ARM, VALVE ROCKER

Note: (Honda Code 6206254).

$9.49

$

In Stock, Qty 9

0

4

Honda 14441-ZE2-000

LIFTER, VALVE

Note: (Honda Code 2025609).

$16.99

$

In Stock, only 2 left!

0

5

Honda 14451-ZE1-013

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM
(Superseded to 14451-Z4M-000)

Note: (Honda Code 4300901).

$5.99

$

In Stock, Qty 5

0

6

Honda 14568-ZE1-000

SPRING, WEIGHT RETURN

Note: (Honda Code 1426907).

$3.49

$

In Stock, only 2 left!

0

7

Honda 14711-ZE2-000

VALVE, IN.

Note: (Honda Code 2025617).

$19.99

$

Usually ships in 3-6 days

0

8

Honda 14721-ZE2-000

VALVE, EX.

Note: (Honda Code 2025625).

$43.99

$

Usually ships in 3-6 days

0

9

Honda 14751-ZE2-003

SPRING, VALVE

Note: (Honda Code 2025633).

$5.49

$

In Stock, only 2 left!

0

10

Honda 14771-ZE2-000

RETAINER, IN. VALVE SPRING
(Superseded to 14771-Z8S-000)

Note: (Honda Code 2025641).

$2.49

$

In Stock, only 2 left!

0

11

Honda 14773-ZE2-000

RETAINER, EX. VALVE SPRING

Note: (Honda Code 2025658).

$2.49

$

In Stock, only 2 left!

0

12

Honda 14781-ZE2-000

ROTATOR, VALVE

Note: (Honda Code 2025666).

$5.99

$

In Stock, only 1 left!

0

13

Honda 14791-ZE2-010

SEE PART DETAILS - PRI; PLATE, PUSH ROD GUIDE

Note: (Honda Code 3707494).

$4.49

$

In Stock, only 2 left!

0

14

Honda 90012-ZE0-010

BOLT, PIVOT (8MM)

Note: (Honda Code 1756964).

$8.49

$

In Stock, only 4 left!

0

15

Honda 90206-ZE1-000

NUT, PIVOT ADJ.

Note: (Honda Code 1431287).

$4.49

$

In Stock, Qty 6

0

16

Honda 12209-ZE8-003

SEAL, VALVE STEM

Note: Use from Engine SN 4081305. (Honda Code 2089571).

$8.49

$

In Stock, Qty 6

0
