GX240 K1 VWC2/A (GC04) - Honda Engine, Made in Japan (SN: GC04-4400001 - GC04-9999999) CARBURETOR (5) Parts Diagram

Engine, Made in Japan

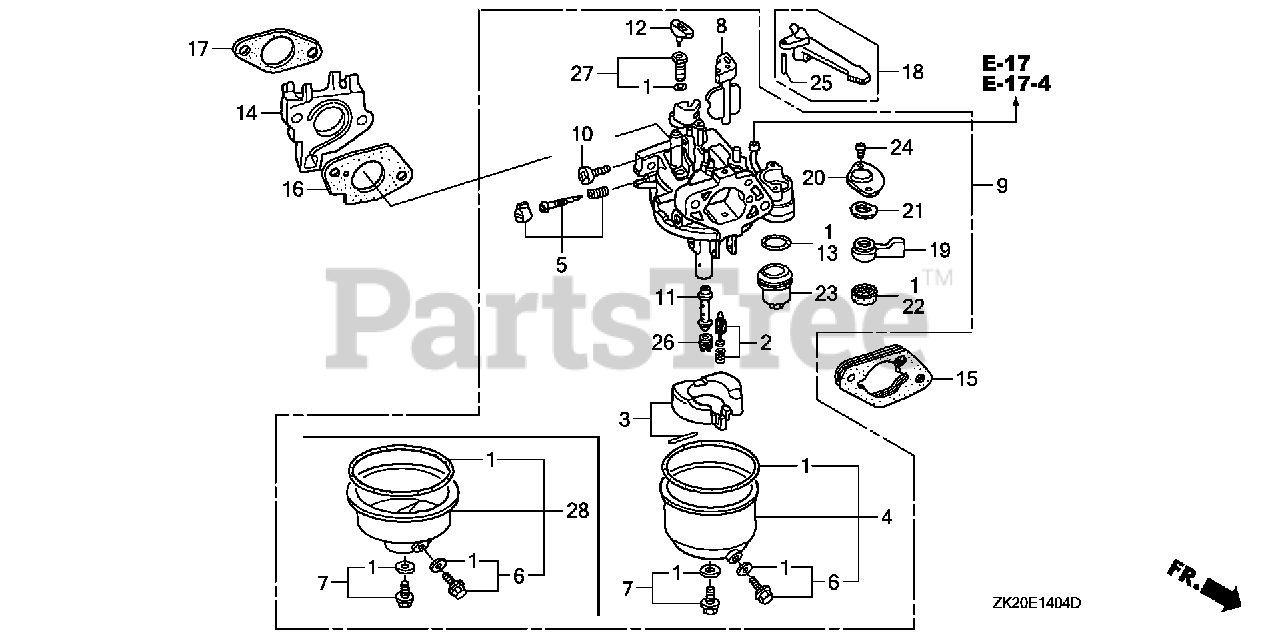

CARBURETOR (5) Parts Diagram

  • Title

1

Honda 16010-ZE2-812

SEE PART DETAILS - PRI; GASKET SET (INCLUDES 16173-001-004)

$19.99

$

In Stock, Qty 12

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT

$45.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZA0-931

FLOAT SET

$51.99

$

In Stock, only 1 left!

0

5

Honda 16016-ZH7-W01

SCREW SET, PILOT

$21.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZE0-005

SCREW SET
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

7

Honda 16028-ZK7-S91

SCREW SET

$13.99

$

In Stock, only 1 left!

0

8

Honda 16044-ZE2-005

CHOKE SET

$37.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZE2-W71

CARBURETOR ASSY. (BE70B B/C)

$129.99

$

In Stock, only 1 left!

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZE2-W70

NOZZLE, MAIN

$27.99

$

Usually ships in 3-6 days

0

12

Honda 16172-ZE3-W10

COLLAR, SETTING

$10.99

$

Usually ships in 3-6 days

0

13

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$7.49

$

In Stock, only 2 left!

0

14

Honda 16211-ZE2-000

SEE PART DETAILS - SUP; INSULATOR, CARBURETOR
(Superseded to 16211-ZE2-010)

$10.99

$

In Stock, Qty 11

0

15

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$11.99

$

In Stock, Qty 5

0

16

Honda 16221-ZA0-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

17

Honda 16223-ZA0-800

GASKET, INSULATOR

$2.99

$

In Stock, Qty 19

0

18

Honda 16610-ZE1-000

LEVER, CHOKE (STD)

$11.99

$

In Stock, Qty 8

0

19

Honda 16953-ZE1-812

LEVER, PETCOCK (CARBURETOR NO.)

$10.99

$

In Stock, Qty 10

0

20

Honda 16954-ZE1-812

PLATE, LEVER SETTING (CARBURETOR NO.)

$4.49

$

In Stock, only 1 left!

0

21

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$4.49

$

Usually ships in 3-6 days

0

22

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

$4.49

$

In Stock, Qty 20+

0

23

Honda 16967-ZE0-811

CUP, FUEL STRAINER

$23.99

$

In Stock, only 3 left!

0

24

Honda 93500-03006-0H

SCREW, PAN (3X6)

$1.49

$

In Stock, only 3 left!

0

25

Honda 94305-20122

PIN, SPRING (2X12)

$2.49

$

In Stock, only 4 left!

0

26

Honda 99101-ZH8-0820

SEE PART DETAILS - PRI; JET, MAIN (#82) (CARBURETOR NO.)

Note: (Optional).

$8.49

$

Usually ships in 3-6 days

0

26

Honda 99101-ZH8-0850

SEE PART DETAILS - PRI; JET, MAIN (#85) (CARBURETOR NO.)

Note: (Optional).

$8.49

$

Usually ships in 3-6 days

0

26

Honda 99101-ZH8-0880

JET, MAIN (#88) (CARBURETOR NO.)

$8.49

$

In Stock, only 1 left!

0

27

Honda 99204-ZA0-0400

JET SET, PILOT (#40) (CARBURETOR NO.)

Note: Use from Engine SN BE70B C.

$24.99

$

Usually ships in 3-6 days

0

27

Honda 99204-ZE2-0400

JET SET, PILOT (#40) (CARBURETOR NO.)

Note: Use up to Engine SN BE70B B.

$23.99

$

In Stock, only 2 left!

0

28

Honda 16015-ZE8-005

CHAMBER SET, FLOAT (CARBURETOR NO.)

$46.99

$

Usually ships in 3-6 days

0
