GX240 K1 RTB2 (GC04) - Honda Engine, Made in Japan (SN: GC04-3000001 - GC04-4399999) 1/2 REDUCTION Parts Diagram

Engine, Made in Japan

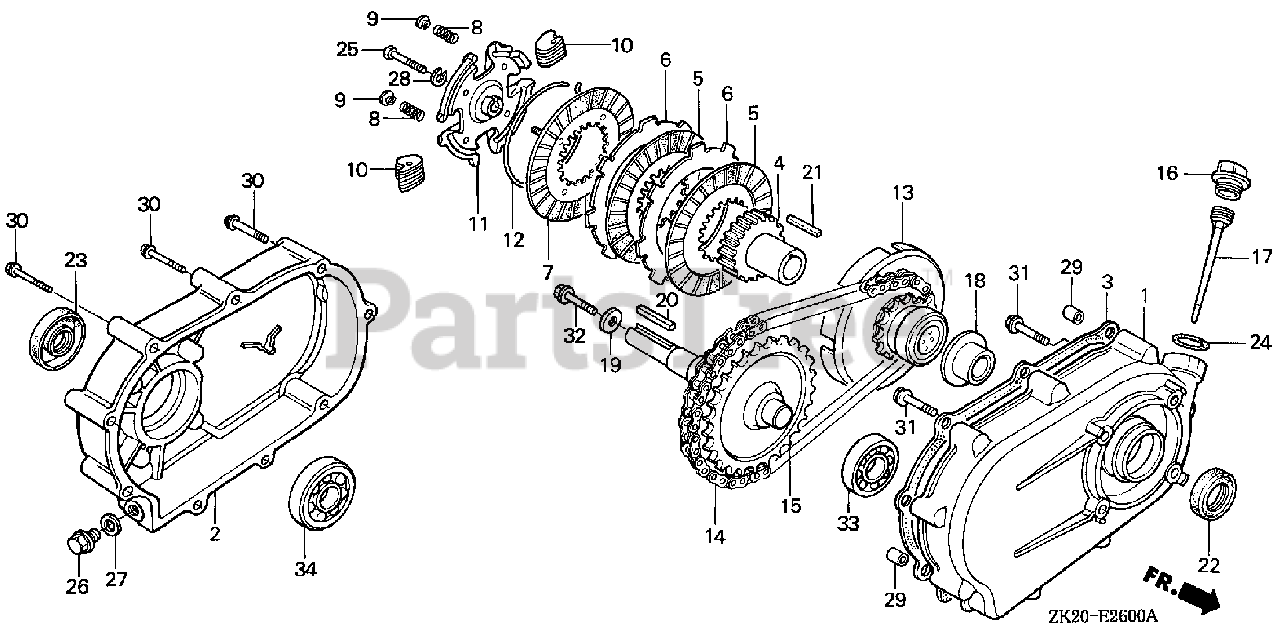

1/2 REDUCTION Parts Diagram

  • Title

1

Honda 21510-889-750

CASE, REDUCTION

Note: (Honda Code 0760686).

$231.99

$

Usually ships in 3-6 days

0

2

Honda 21610-889-750

COVER, REDUCTION

Note: (Honda Code 0760710).

$318.99

$

Usually ships in 3-6 days

0

3

Honda 21691-889-306

SEE PART DETAILS - PRI; GASKET, REDUCTION COVER

Note: (Honda Code 4349965).

$12.99

$

In Stock, only 3 left!

0

4

Honda 22121-889-750

CENTER, CLUTCH

Note: (Honda Code 0760736).

$93.99

$

Usually ships in 3-6 days

0

5

Honda 22201-822-306

SEE PART DETAILS - PRI; DISK, CLUTCH FRICTION

Note: (Honda Code 4369955).

$41.99

$

In Stock, Qty 10

0

5

Honda 22201-822-610

SEE PART DETAILS - SUP; DISK, CLUTCH FRICTION

Note: (Honda Code 0397026).

$

$

Currently unavailable

6

Honda 22311-822-610

PLATE, CLUTCH

Note: (Honda Code 0397034).

$24.99

$

In Stock, Qty 7

0

7

Honda 22350-822-610

PLATE, CLUTCH PRESSURE

Note: (Honda Code 0397042).

$30.99

$

In Stock, Qty 5

0

8

Honda 22411-822-611

SPRING, CLUTCH FREE

Note: (Honda Code 0397059).

$4.49

$

Usually ships in 3-6 days

0

9

Honda 22421-822-610

HOLDER, CLUTCH SPRING

Note: (Honda Code 0397067).

$1.99

$

In Stock, only 1 left!

0

10

Honda 22521-822-610

WEIGHT, CLUTCH

Note: (Honda Code 0397075).

$4.99

$

Usually ships in 3-6 days

0

11

Honda 22531-889-750

HOLDER, CLUTCH WEIGHT

Note: (Honda Code 0760744).

$85.99

$

Usually ships in 3-6 days

0

12

Honda 22535-822-610

CENTER, CLUTCH WEIGHT

Note: (Honda Code 0397091).

$3.49

$

Usually ships in 3-6 days

0

13

Honda 23120-889-750

SPROCKET, DRIVE (14T)
(Superseded to 23120-889-751)

Note: (Honda Code 0760751).

$151.99

$

Usually ships in 3-6 days

0

14

Honda 23161-822-611

SEE PART DETAILS - PRI; CHAIN, DRIVE (RK428SH-36LE)

Note: (Honda Code 4195566).

$64.99

$

Usually ships in 3-6 days

0

15

Honda 23711-822-610

SHAFT, P.T.O. (28T)

Note: (Honda Code 0397125).

$74.99

$

Usually ships in 3-6 days

0

16

Honda 25620-823-000

CAP, REDUCTION OIL

Note: (Honda Code 0397133).

$

$

Not available

17

Honda 25651-889-750

DIPSTICK, OIL

Note: (Honda Code 0760777).

$11.99

$

In Stock, only 1 left!

0

18

Honda 90403-889-000

WASHER, THRUST (25MM)

Note: (Honda Code 0761221).

$18.99

$

Usually ships in 3-6 days

0

20

Honda 90741-889-810

SEE PART DETAILS - PRI; KEY (7X7X33)

Note: (Honda Code 1064039).

$9.99

$

Usually ships in 3-6 days

0

20

Honda 90741-889-810

SEE PART DETAILS - PRI; KEY (7X7X33)

Note: (Optional). (Honda Code 1064039).

$9.99

$

Usually ships in 3-6 days

0

21

Honda 90741-889-000

KEY, CLUTCH CENTER

Note: (Honda Code 0761239).

$11.99

$

Usually ships in 3-6 days

0

22

Honda 91201-890-003

OIL SEAL (30X46X8)

Note: (Honda Code 0756494).

$11.99

$

In Stock, Qty 5

0

23

Honda 91202-805-610

SEE PART DETAILS - PRI; OIL SEAL (PJ30507)
(Superseded to 91202-Z2F-801)

Note: (Honda Code 0065136).

$11.99

$

In Stock, Qty 11

0

24

Honda 91301-805-000

SEE PART DETAILS - PRI; O-RING (26X2.7)

Note: (Honda Code 0065185).

$5.49

$

In Stock, Qty 10

0

25

Honda 92101-08035-0H

SEE PART DETAILS - PRI; BOLT, HEX. (8X35)

Note: (Honda Code 4335642).

$2.99

$

Usually ships in 3-6 days

0

26

Honda 92800-12000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (12MM)

Note: (Honda Code 0053975).

$5.49

$

In Stock, only 2 left!

0

27

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM)

Note: (Honda Code 0171868).

$1.49

$

In Stock, Qty 20+

0

28

Honda 94111-08800

SEE PART DETAILS - PRI; WASHER, SPRING (8MM)

Note: (Honda Code 0260331).

$1.49

$

Usually ships in 3-6 days

0

29

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14)

Note: (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

30

Honda 95701-06050-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X50)

Note: (Honda Code 2647410).

$2.99

$

Usually ships in 3-6 days

0

31

Honda 95701-08032-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X32)

Note: (Honda Code 2602241).

$2.99

$

Usually ships in 3-6 days

0

33

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

Note: (Honda Code 0636977).

$25.99

$

In Stock, only 1 left!

0

34

Honda 96100-62060-00

BEARING, RADIAL BALL (6206)

Note: (Honda Code 0636118).

$32.99

$

In Stock, only 1 left!

0
