GX240 K1 RA2 (GC04) - Honda Engine, Made in Japan (SN: GC04-3000001 - GC04-4399999) MUFFLER (1) Parts Diagram

Engine, Made in Japan

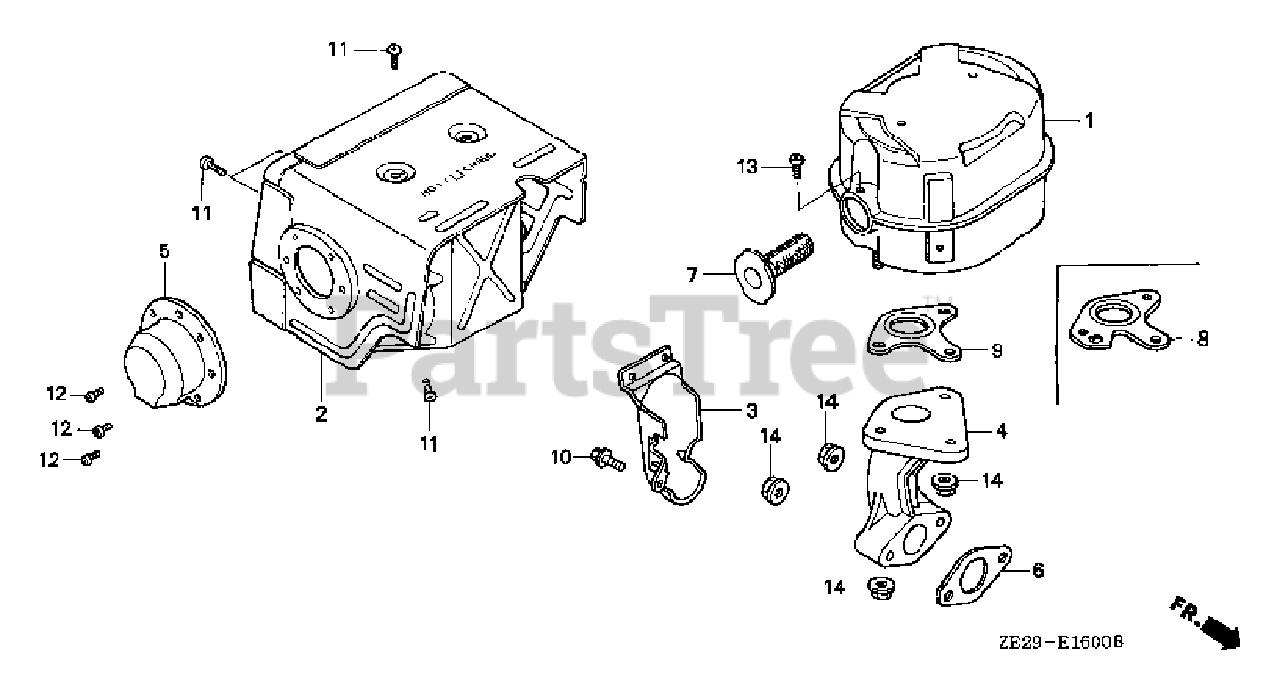

MUFFLER (1) Parts Diagram

  • Title

1

Honda 18310-ZE2-W00

MUFFLER
(Superseded to 18310-ZE2-W01)

Note: (Honda Code 3678745).

$42.99

$

In Stock, only 2 left!

0

2

Honda 18320-ZE2-W01

SEE PART DETAILS - PRI; PROTECTOR, MUFFLER
(Superseded to 18320-ZE2-W02)

Note: (Honda Code 4613642).

$80.99

$

In Stock, only 2 left!

0

3

Honda 18323-ZE2-W00

PROTECTOR, EX. PIPE

Note: (Honda Code 3678786).

$27.99

$

In Stock, only 2 left!

0

4

Honda 18330-ZE2-W00

PIPE, EX.

Note: (Honda Code 3678794).

$83.99

$

In Stock, only 3 left!

0

5

Honda 18331-ZE2-810

CAP, MUFFLER

Note: (Honda Code 2026227).

$12.99

$

In Stock, only 2 left!

0

6

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-ZK6-Y00)

Note: (Honda Code 3520194).

$5.49

$

In Stock, Qty 20+

0

6

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE (WACKER)

Note: (Honda Code 5164199).

$5.49

$

In Stock, Qty 20+

0

7

Honda 18355-ZE2-010

ARRESTER, SPARK

Note: (Optional). (Honda Code 2482594).

$27.99

$

Usually ships in 3-6 days

0

8

Honda 18381-ZE2-W10

SEE PART DETAILS - PRI; GASKET, MUFFLER (ARRESTER)

Note: (Optional). (Honda Code 3678802).

$13.99

$

In Stock, Qty 6

0

9

Honda 18381-ZE2-800

SEE PART DETAILS - PRI; GASKET, MUFFLER
(Superseded to 18381-ZE2-801)

Note: (Honda Code 3678810).

$16.99

$

In Stock, only 4 left!

0

10

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

Note: (Honda Code 0636845).

$2.49

$

In Stock, Qty 20+

0

11

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

Note: (Honda Code 1431105).

$2.49

$

In Stock, Qty 20+

0

12

Honda 90055-ZE1-000

SCREW, TAPPING (4X6)

Note: (Honda Code 1431121).

$1.49

$

In Stock, Qty 20+

0

13

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

Note: (Optional). (Honda Code 1431105).

$2.49

$

In Stock, Qty 20+

0

14

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

Note: (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0
