GX240 K1 QHB2 (GC04) - Honda Engine, Made in Japan (SN: GC04-4400001 - GC04-9999999) FUEL TANK (1) Parts Diagram

Engine, Made in Japan

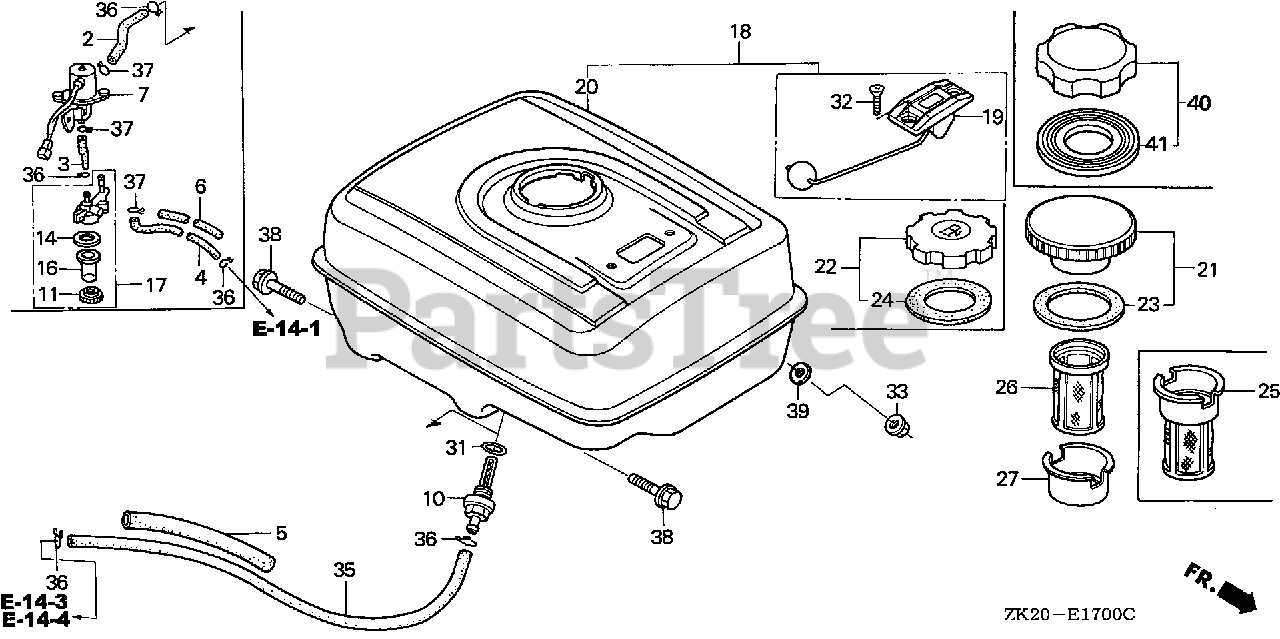

FUEL TANK (1) Parts Diagram

  • Title

5

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM)

$5.49

$

In Stock, Qty 12

0

10

Honda 16955-ZE1-000

SEE PART DETAILS - SUP; JOINT, FUEL TANK
(Superseded to 16955-ZE1-010)

$8.99

$

In Stock, Qty 20+

0

20

Honda 17510-ZE2-801ZC

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE)

$291.99

$

Usually ships in 3-6 days

0

31

Honda 91353-671-003

O-RING (14MM) (ARAI)

$3.99

$

In Stock, Qty 20+

0

31

Honda 91353-671-004

O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

33

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

35

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X222)

$54.99

$

In Stock, only 1 left!

0

36

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

38

Honda 95701-08025-00

BOLT, FLANGE (8X25)

$2.49

$

In Stock, only 3 left!

0

40

Honda 17620-Z0T-305

SEE PART DETAILS - PRI; CAP, FUEL FILLER (CHROME PLATED)

$

$

Not available

41

Honda 17631-Z0T-812

GASKET, FUEL FILLER CAP (39X62X3) (TOUYOUSYA)
(Superseded to 17631-Z0T-813)

$3.49

$

Usually ships in 3-6 days

0
