GX240 K1 QAR2 (GC04) - Honda Engine, Made in Japan (SN: GC04-3000001 - GC04-4399999) CONTROL Parts Diagram

Engine, Made in Japan

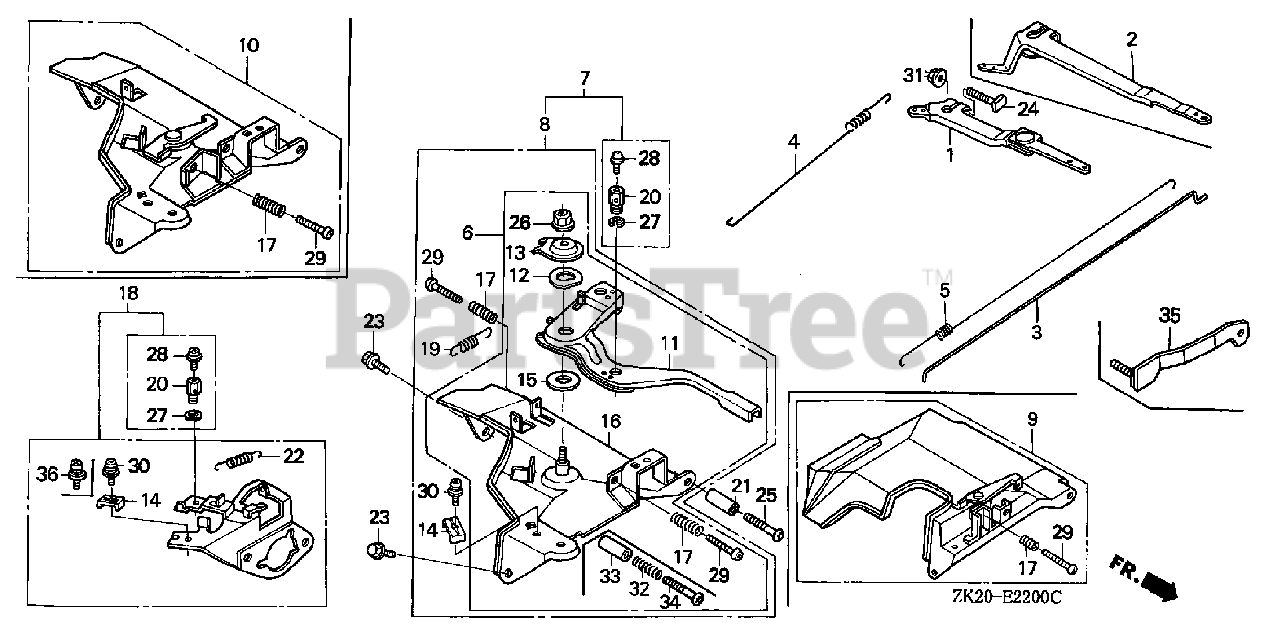

CONTROL Parts Diagram

  • Title

2

Honda 16551-ZE2-000

ARM, GOVERNOR

Note: (Honda Code 2026003).

$18.99

$

Usually ships in 3-6 days

0

3

Honda 16555-ZE2-000

ROD, GOVERNOR

Note: (Honda Code 2026011).

$5.49

$

In Stock, only 1 left!

0

4

Honda 16561-ZE2-000

SPRING, GOVERNOR

Note: (Honda Code 2026029).

$5.99

$

In Stock, only 1 left!

0

5

Honda 16562-ZE2-000

SPRING, THROTTLE RETURN

Note: (Honda Code 2026037).

$4.99

$

In Stock, only 1 left!

0

8

Honda 16570-ZE2-W20

SEE PART DETAILS - PRI; CONTROL ASSY. (REMOTE)

Note: (Honda Code 3678653).

$49.99

$

In Stock, only 1 left!

0

11

Honda 16571-ZE2-W00

SEE PART DETAILS - PRI; LEVER, CONTROL

Note: (Honda Code 3678661).

$13.99

$

In Stock, only 1 left!

0

12

Honda 16574-ZE1-000

SPRING, LEVER

Note: (Honda Code 1427384).

$4.49

$

In Stock, only 2 left!

0

13

Honda 16575-ZE2-W00

WASHER, CONTROL LEVER

Note: (Honda Code 3678679).

$5.49

$

Usually ships in 3-6 days

0

14

Honda 16576-891-000

HOLDER, CABLE

Note: (Honda Code 0800466).

$4.99

$

In Stock, only 2 left!

0

15

Honda 16578-ZE1-000

SPACER, CONTROL LEVER

Note: (Honda Code 1427400).

$5.49

$

In Stock, only 4 left!

0

16

Honda 16581-ZE2-W00

SEE PART DETAILS - PRI; BASE, CONTROL

Note: (Honda Code 3678687).

$19.99

$

Usually ships in 3-6 days

0

17

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

Note: (Honda Code 0636431).

$4.99

$

In Stock, Qty 9

0

19

Honda 16592-883-310

SEE PART DETAILS - PRI; SPRING, CABLE RETURN

Note: (Honda Code 0743203).

$3.49

$

Usually ships in 3-6 days

0

23

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

Note: (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

26

Honda 90114-SA0-000

NUT, SELF-LOCK (6MM)

Note: (Honda Code 1410182).

$4.49

$

In Stock, Qty 20+

0

29

Honda 93500-05028-0A

SCREW, PAN (5X28)

Note: (Honda Code 0171819).

$1.49

$

In Stock, Qty 5

0

30

Honda 93500-05016-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X16)

Note: (Honda Code 0145557).

$1.49

$

In Stock, only 1 left!

0
