GX240 K1 QAG (GC04) - Honda Engine, Made in Japan (SN: GC04-3000001 - GC04-4399999) RECOIL STARTER Parts Diagram

Engine, Made in Japan

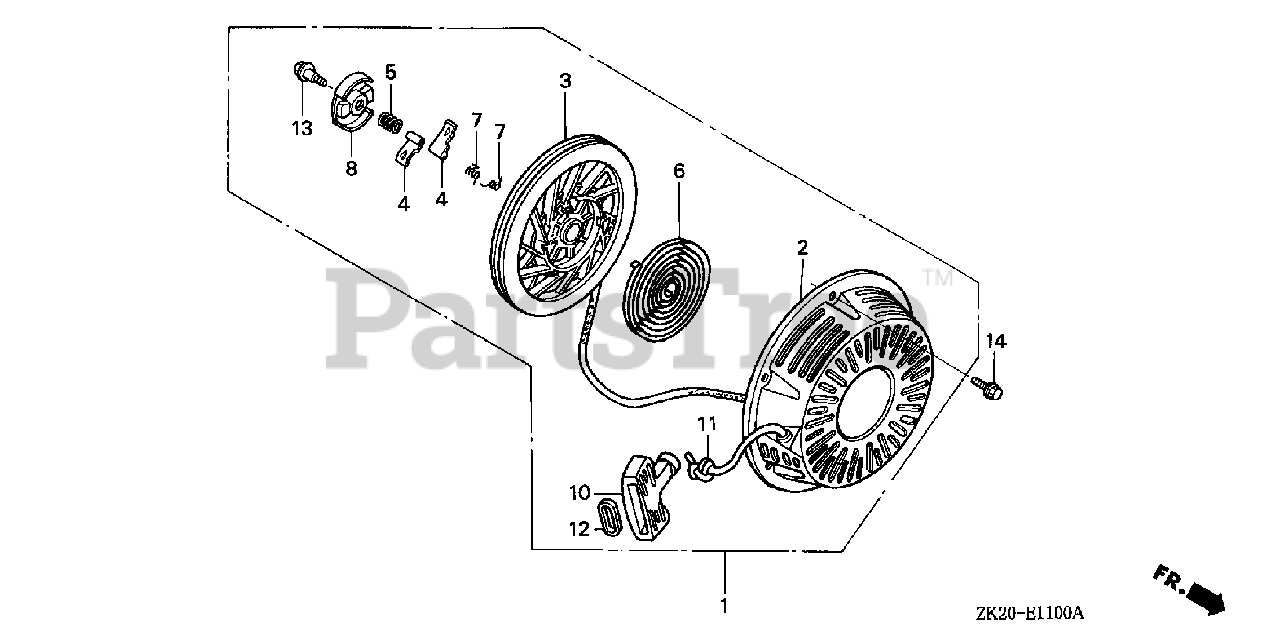

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZE2-W01ZA

STARTER ASSY., RECOIL *R8* (BRIGHT RED)

Note: (Honda Code 3678844).

$

$

Currently unavailable

1

Honda 28400-ZE2-W01ZB

STARTER ASSY., RECOIL *NH1* (BLACK)
(Superseded to 28400-ZE2-W02ZB)

Note: (Honda Code 4220315).

$118.99

$

In Stock, only 1 left!

0

2

Honda 28410-ZE2-W01ZA

CASE, RECOIL STARTER *R8* (BRIGHT RED)
(Superseded to 28410-ZE2-W01ZN)

Note: (Honda Code 3678851).

$138.99

$

In Stock, only 1 left!

0

2

Honda 28410-ZE2-W01ZB

CASE, RECOIL STARTER *NH1* (BLACK)

Note: (Honda Code 4220323).

$162.99

$

Usually ships in 3-6 days

0

3

Honda 28421-ZE2-W01

PULLEY, RECOIL STARTER

Note: (Honda Code 3678869).

$43.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER

Note: (Honda Code 3678877).

$7.99

$

In Stock, only 1 left!

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION

Note: (Honda Code 3678885).

$6.49

$

In Stock, Qty 10

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN

Note: (Honda Code 3678893).

$19.99

$

Usually ships in 3-6 days

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET

Note: (Honda Code 3678901).

$5.49

$

In Stock, Qty 12

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING

Note: (Honda Code 3678919).

$14.99

$

Usually ships in 3-6 days

0

10

Honda 28461-ZE2-W02

SEE PART DETAILS - PRI; GRIP, STARTER
(Superseded to 28461-ZE2-W03)

Note: (Honda Code 6133649).

$8.49

$

In Stock, Qty 6

0

11

Honda 28462-ZE2-W11

ROPE, RECOIL STARTER

Note: (Honda Code 6139729).

$11.99

$

In Stock, only 2 left!

0

13

Honda 90004-ZE2-W01

SCREW, CENTER

Note: (Honda Code 3679024).

$4.49

$

In Stock, Qty 10

0

14

Honda 90008-ZE2-003

BOLT, FLANGE (6X10)

Note: (Honda Code 6437289).

$1.99

$

In Stock, Qty 20+

0
