GX240 K1 QAG (GC04) - Honda Engine, Made in Japan (SN: GC04-3000001 - GC04-4399999) PISTON Parts Diagram

Engine, Made in Japan

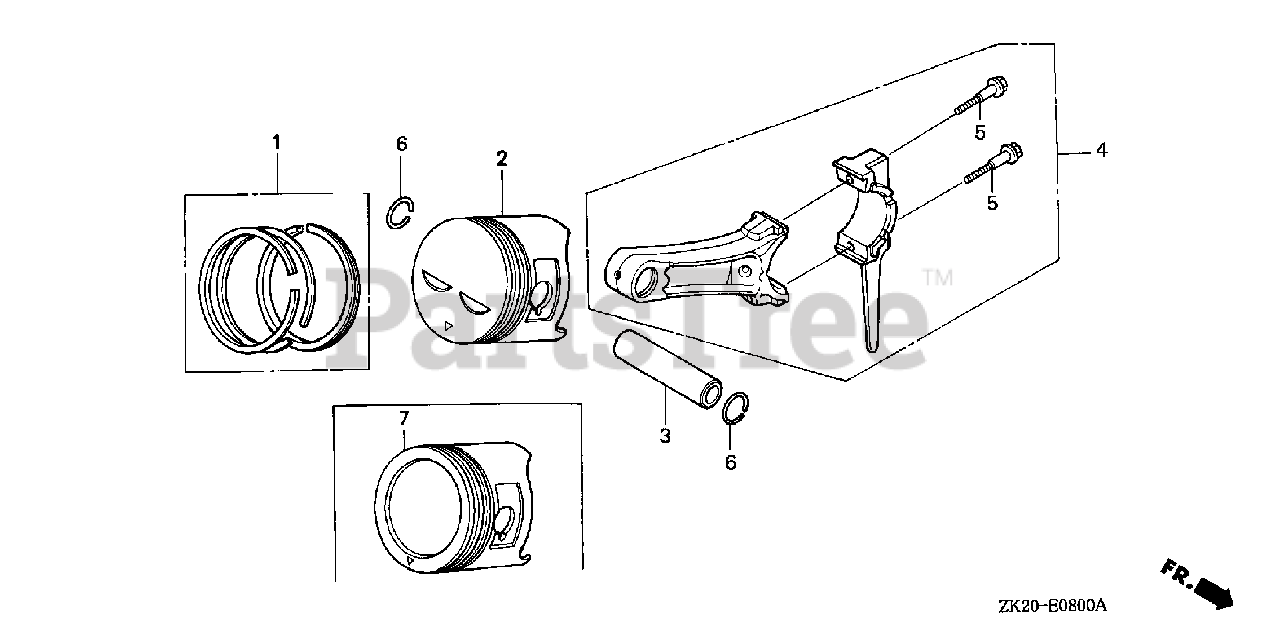

PISTON Parts Diagram

  • Title

1

Honda 13010-ZE2-921

RING SET, PISTON (STD) (TEIKOKU)

Note: (Honda Code 6604573).

$43.99

$

Usually ships in 3-6 days

0

1

Honda 13010-ZE2-922

RING SET, PISTON (STD) (NIPPON)

Note: (Honda Code 6604581).

$43.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZE2-921

RING SET, PISTON (OS 0.25) (TEIKOKU)

Note: (Optional). (Honda Code 6604607).

$

$

Not available

1

Honda 13011-ZE2-922

RING SET, PISTON (OS 0.25) (NIPPON)

Note: (Optional). (Honda Code 6604615).

$

$

Not available

1

Honda 13012-ZE2-921

RING SET, PISTON (OS 0.50) (TEIKOKU)

Note: (Optional). (Honda Code 6604623).

$48.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZE2-922

RING SET, PISTON (OS 0.50) (NIPPON)

Note: (Optional). (Honda Code 6604631).

$48.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZE2-921

RING SET, PISTON (0.75) (TEIKOKU)

Note: (Optional). (Honda Code 6604649).

$48.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZE2-922

RING SET, PISTON (0.75) (NIPPON)

Note: (Optional). (Honda Code 6604656).

$48.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZE2-W00

PISTON (STD)

Note: (Honda Code 3678547).

$49.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZE2-W00

PISTON (OS 0.25)

Note: (Optional). (Honda Code 3678554).

$73.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZE2-W00

PISTON (OS 0.50)

Note: (Optional). (Honda Code 3678562).

$73.99

$

Usually ships in 3-6 days

0

2

Honda 13104-ZE2-W00

PISTON (0.75)

Note: (Optional). (Honda Code 3678570).

$73.99

$

Usually ships in 3-6 days

0

3

Honda 13111-ZE2-000

PIN, PISTON

Note: (Honda Code 2025484).

$13.99

$

In Stock, only 1 left!

0

4

Honda 13200-ZE2-010

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (STD)

Note: (Honda Code 6835250).

$28.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZE2-305

ROD ASSY., CONNECTING (US 0.25)

Note: (Optional). (Honda Code 2110153).

$123.99

$

Usually ships in 3-6 days

0

5

Honda 90001-ZE8-000

BOLT, CONNECTING ROD

Note: (Honda Code 2160489).

$4.49

$

In Stock, only 1 left!

0

6

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM)

Note: (Honda Code 2539120).

$1.49

$

In Stock, Qty 18

0
