GX240 K1 QAE2 (GC04) - Honda Engine, Made in Japan (SN: GC04-3000001 - GC04-4399999) FUEL TANK Parts Diagram

Engine, Made in Japan

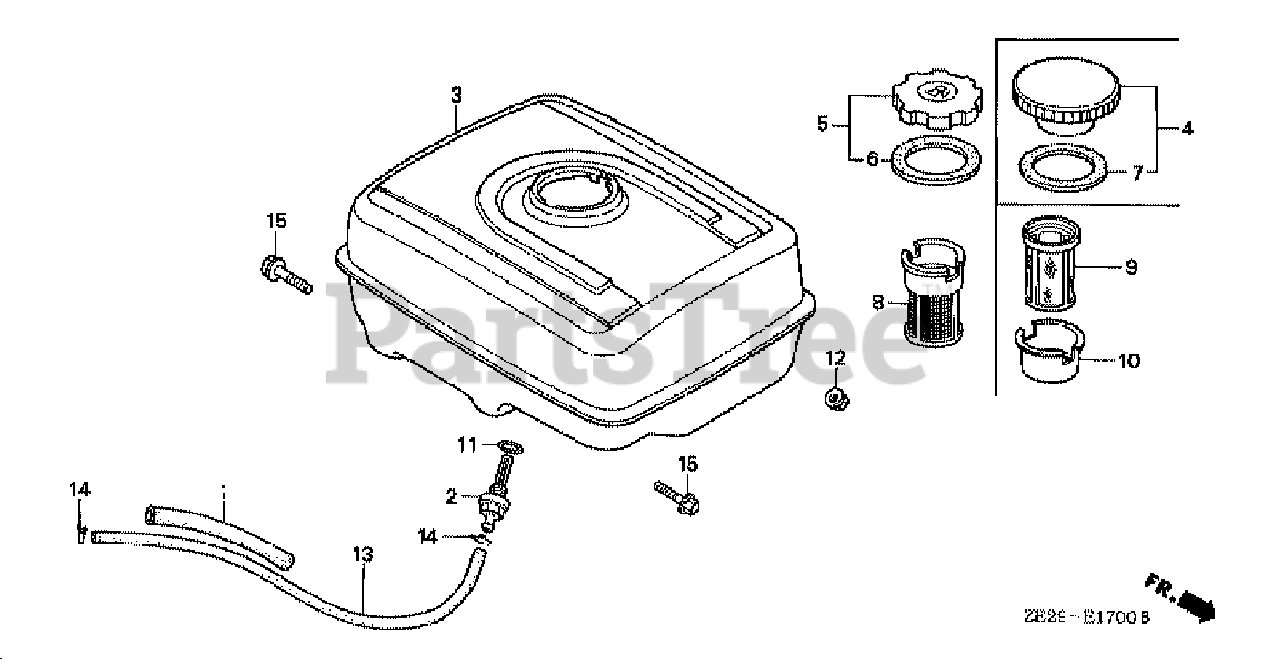

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM)

Note: (Honda Code 3683646).

$5.49

$

In Stock, Qty 12

0

2

Honda 16955-ZE1-000

JOINT, FUEL TANK
(Superseded to 16955-ZE1-010)

Note: (Honda Code 1427459).

$8.99

$

In Stock, Qty 20+

0

3

Honda 17510-ZE2-010ZA

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE)
(Superseded to 17510-ZE2-801ZC)

Note: (Honda Code 3690070).

$291.99

$

Usually ships in 3-6 days

0

3

Honda 17510-ZE2-010ZD

TANK, FUEL *NH1* (BLACK)

Note: (Honda Code 4220034).

$

$

Currently unavailable

4

Honda 17620-ZE2-W00

CAP, FUEL FILLER

Note: Use up to Engine SN 3254423. (Honda Code 3682028).

$

$

Not available

5

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 3254424 to 3608569. (Honda Code 5344817).

$

$

Not available

5

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 3608570. (Honda Code 5344817).

$

$

Not available

6

Honda 17631-ZH7-003

GASKET, FUEL FILLER CAP
(Superseded to 17631-329-003)

Note: Use from Engine SN 3254424. (Honda Code 4608725).

$

$

Not available

7

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-329-013)

Note: Use up to Engine SN 3254423. (Honda Code 2820587).

$

$

Not available

8

Honda 17672-ZE2-W01

SEE PART DETAILS - PRI; FILTER, FUEL

Note: Use from Engine SN 3190917. (Honda Code 4270864).

$13.99

$

In Stock, only 3 left!

0

9

Honda 17672-880-000

FILTER, FUEL

Note: Use up to Engine SN 3190916. (Honda Code 0474759).

$14.99

$

Usually ships in 3-6 days

0

10

Honda 17673-893-000

SEE PART DETAILS - PRI; HOLDER, FUEL FILTER

Note: Use up to Engine SN 3190916. (Honda Code 0788109).

$15.99

$

In Stock, only 2 left!

0

11

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (13.5X1.5) (ARAI)

Note: (Honda Code 0949883).

$3.99

$

In Stock, Qty 20+

0

12

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

Note: (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

13

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X222)

Note: (Honda Code 5137104).

$54.99

$

In Stock, only 1 left!

0

14

Honda 95002-02080

CLIP, TUBE (B8)

Note: (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

15

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25)

Note: (Honda Code 2545325).

$2.49

$

In Stock, only 3 left!

0
