GX240 K1 QA2 (GC04) - Honda Engine, Made in Japan (SN: GC04-3000001 - GC04-4399999) CYLINDER HEAD Parts Diagram

Engine, Made in Japan

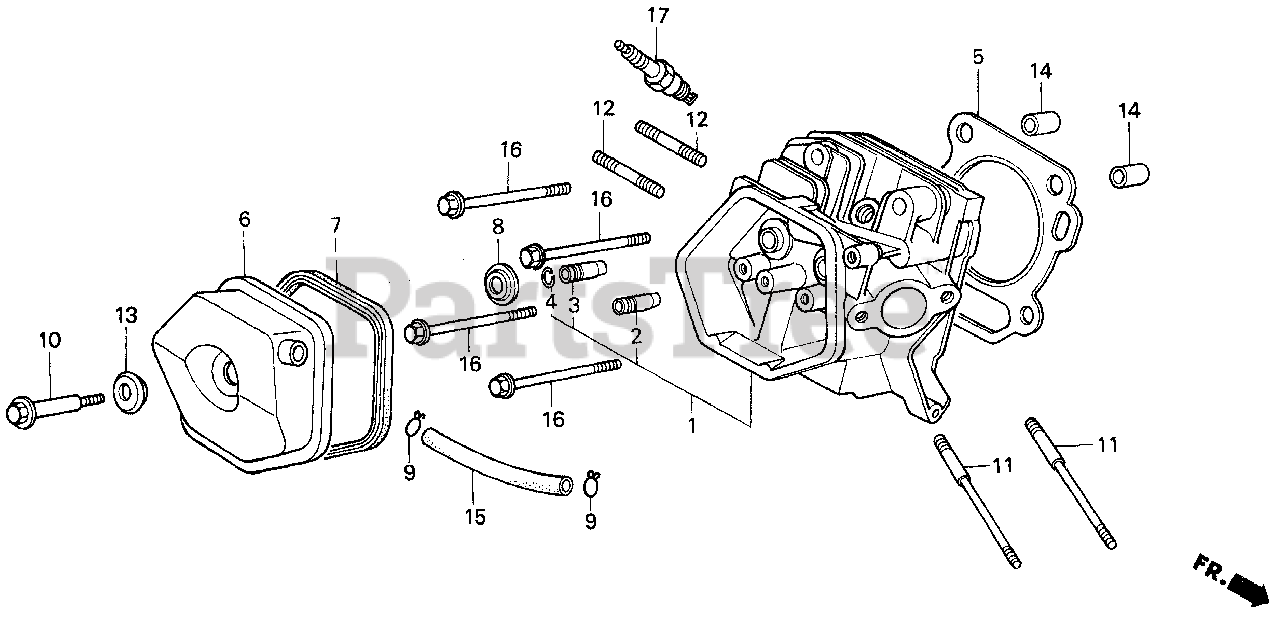

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-ZH9-000

SEE PART DETAILS - PRI; CYLINDER HEAD

Note: (Honda Code 4475349).

$

$

Currently unavailable

2

Honda 12204-ZE2-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS)

Note: (Optional). (Honda Code 4179164).

$

$

Not available

3

Honda 12205-ZE2-305

SEE PART DETAILS - PRI; GUIDE, EX. VALVE (OS)

Note: (Optional). (Honda Code 2089563).

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE

Note: (Honda Code 2089597).

$2.49

$

In Stock, Qty 5

0

5

Honda 12251-ZE2-800

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD
(Superseded to 12251-ZE2-801)

Note: (Honda Code 3678539).

$15.99

$

Usually ships in 3-6 days

0

6

Honda 12310-ZE2-020

COVER, HEAD

Note: (Honda Code 4300885).

$61.99

$

In Stock, only 1 left!

0

7

Honda 12391-ZE2-020

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD COVER

Note: (Honda Code 4300893).

$12.99

$

In Stock, Qty 20+

0

8

Honda 14775-ZE2-010

SEAT, VALVE SPRING

Note: (Honda Code 2157485).

$3.99

$

In Stock, only 2 left!

0

10

Honda 90014-ZE2-000

BOLT, HEAD COVER

Note: (Honda Code 2027035).

$6.99

$

In Stock, only 1 left!

0

11

Honda 90042-ZE2-000

BOLT, STUD (8X123)

Note: (Honda Code 2027043).

$9.49

$

Usually ships in 3-6 days

0

12

Honda 90047-ZE2-000

SEE PART DETAILS - SUP; BOLT, STUD (8X47)

Note: Use up to Engine SN 3844352. (Honda Code 2027050).

$4.49

$

Usually ships in 3-6 days

0

12

Honda 92900-08032-0E

SEE PART DETAILS - PRI; BOLT 2, STUD (8X32)

Note: Use from Engine SN 3844353. (Honda Code 2663433).

$2.99

$

In Stock, Qty 20+

0

13

Honda 90441-ZE2-010

SEE PART DETAILS - PRI; WASHER, HEAD COVER

Note: (Honda Code 2293918).

$6.99

$

In Stock, Qty 12

0

14

Honda 94301-12200

SEE PART DETAILS - PRI; PIN A, DOWEL (12X20)

Note: (Honda Code 0165324).

$3.49

$

Usually ships in 3-6 days

0

15

Honda 95005-11001-30M

BULK HOSE, VACUUM (11X1000) (11X100)

Note: Use from Engine SN 3454868. (Honda Code 4537312).

$38.99

$

Usually ships in 3-6 days

0

15

Honda 95005-11001-30M

BULK HOSE, VACUUM (11X1000) (11X105)

Note: Use up to Engine SN 3454867. (Honda Code 4537312).

$38.99

$

Usually ships in 3-6 days

0

16

Honda 95701-10080-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X80)

Note: (Honda Code 2545341).

$4.49

$

In Stock, only 3 left!

0

16

Honda 95725-10080-00

SEE PART DETAILS - SUP; BOLT, FLANGE (10X80)

Note: (Honda Code 2027316).

$

$

Currently unavailable

17

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK)

Note: (Optional). (Honda Code 1672443).

$3.99

$

In Stock, Qty 20+

0

17

Honda 98079-55855

SEE PART DETAILS - PRI; SPARK PLUG (W16EPR-U) (DENSO)

Note: (Optional). (Honda Code 1672450).

$3.49

$

Usually ships in 3-6 days

0

17

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK)

Note: (Honda Code 1441112).

$3.99

$

In Stock, Qty 20+

0

17

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO)

Note: (Honda Code 1441120).

$3.99

$

In Stock, Qty 8

0
