GX240 K1 HA (GC04) - Honda Engine, Made in Japan (SN: GC04-3000001 - GC04-4399999) 1/6 REDUCTION Parts Diagram

Engine, Made in Japan

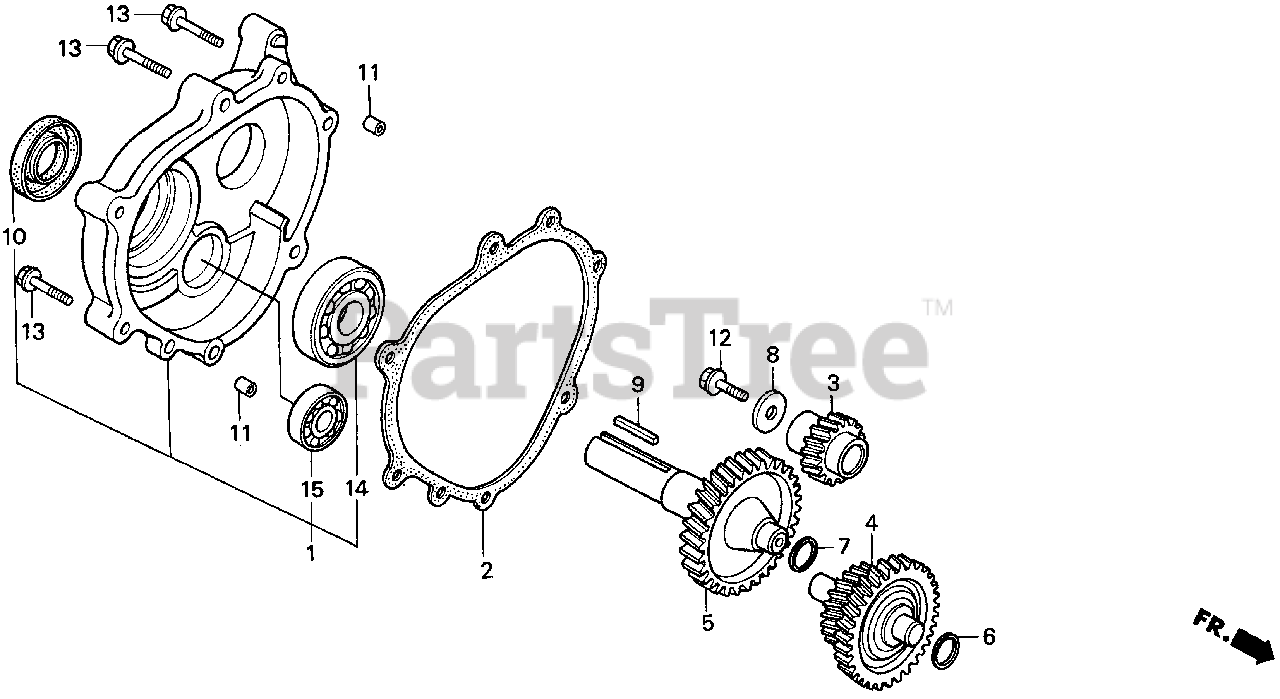

1/6 REDUCTION Parts Diagram

  • Title

1

Honda 11500-ZE2-620

COVER ASSY., REDUCTION CASE

Note: (Honda Code 2025286).

$157.99

$

In Stock, only 1 left!

0

2

Honda 11521-ZE2-800

SEE PART DETAILS - PRI; GASKET, CHAIN CASE COVER

Note: (Honda Code 3678513).

$11.99

$

In Stock, only 1 left!

0

3

Honda 22103-ZE2-620

GEAR, PRIMARY DRIVE (17T)

Note: (Honda Code 2026284).

$61.99

$

Usually ships in 3-6 days

0

4

Honda 23220-ZE2-621

SEE PART DETAILS - PRI; COUNTERSHAFT

Note: (Honda Code 3682044).

$183.99

$

Usually ships in 3-6 days

0

5

Honda 23710-ZE2-621

SEE PART DETAILS - PRI; SHAFT, P.T.O. (H-TYPE)

Note: (Honda Code 3304573).

$230.99

$

Usually ships in 3-6 days

0

6

Honda 90401-ZE2-620

SHIM A

Note: (Optional). (Honda Code 3499753).

$1.99

$

Usually ships in 3-6 days

0

7

Honda 90402-ZE2-620

SHIM B

Note: (Optional). (Honda Code 3499761).

$1.99

$

Usually ships in 3-6 days

0

8

Honda 90473-842-000

WASHER (8MM)

Note: (Honda Code 0323295).

$1.99

$

In Stock, only 4 left!

0

9

Honda 90745-ZE2-600

KEY (6.3X6.3X43)

Note: (Honda Code 2027167).

$17.99

$

In Stock, only 1 left!

0

10

Honda 91201-890-003

OIL SEAL (30X46X8)

Note: (Honda Code 0756494).

$11.99

$

Usually ships in 3-6 days

0

11

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14)

Note: (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

12

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25)

Note: (Honda Code 2545325).

$2.49

$

In Stock, Qty 5

0

13

Honda 95700-08040-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X40)
(Superseded to 95701-08040-00)

Note: (Honda Code 0671222).

$1.99

$

In Stock, Qty 6

0

13

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

Note: (Honda Code 2298404).

$1.99

$

In Stock, Qty 6

0

14

Honda 96100-62060-00

BEARING, RADIAL BALL (6206)

Note: (Honda Code 0636118).

$30.99

$

In Stock, only 1 left!

0

15

Honda 96100-63020-00

BEARING, RADIAL BALL (6302)

Note: (Honda Code 0834176).

$11.99

$

Usually ships in 3-6 days

0
