GX240 K1 EDS2/A (GC04) - Honda Engine, Made in Japan (SN: GC04-4400001 - GC04-9999999) MUFFLER (6) Parts Diagram

Engine, Made in Japan

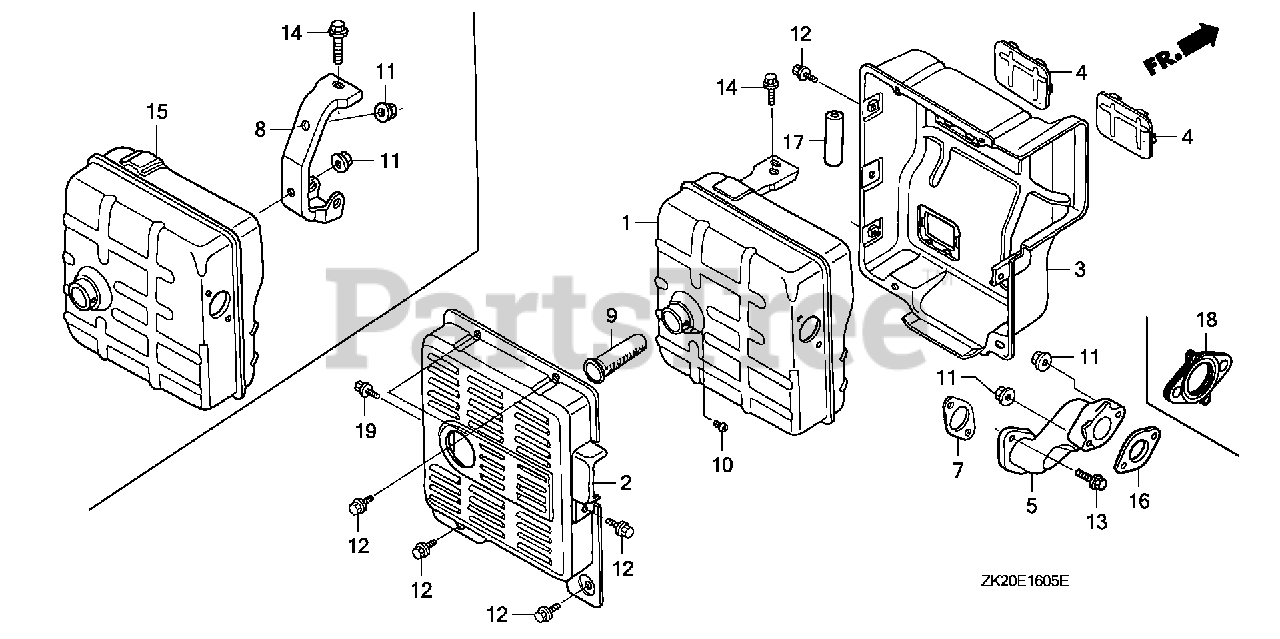

MUFFLER (6) Parts Diagram

  • Title

1

Honda 18310-ZD1-E31

SEE PART DETAILS - SUP; MUFFLER (SANKEI)
(Superseded to 18310-ZD1-E32)

$242.99

$

Usually ships in 3-6 days

0

1

Honda 18310-ZD1-E32

SEE PART DETAILS - PRI; MUFFLER (SANKEI)

$242.99

$

Usually ships in 3-6 days

0

2

Honda 18320-ZB4-000

PROTECTOR, MUFFLER (OUTER)

$107.99

$

Usually ships in 3-6 days

0

3

Honda 18325-ZB4-000

PROTECTOR, MUFFLER (INNER)

$131.99

$

Usually ships in 3-6 days

0

4

Honda 18329-ZB4-000

SEAL, MUFFLER PROTECTOR

$13.99

$

Usually ships in 3-6 days

0

5

Honda 18330-ZE2-710

PIPE, EX.

$73.99

$

Usually ships in 3-6 days

0

7

Honda 18333-ZB4-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE

$

$

Not available

9

Honda 18355-ZB4-630

ARRESTER, SPARK

$23.99

$

Usually ships in 3-6 days

0

10

Honda 90002-ZE2-U91

SCREW, TAPPING (4X8)

$1.49

$

In Stock, only 2 left!

0

11

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

12

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

13

Honda 95701-08020-00

BOLT, FLANGE (8X20)

$2.49

$

In Stock, only 3 left!

0

16

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-ZK6-Y00)

$5.49

$

In Stock, Qty 20+

0

16

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$5.49

$

In Stock, Qty 20+

0

19

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0
