GX240 K1 EDN2 (GC04) - Honda Engine, Made in Japan (SN: GC04-3000001 - GC04-4399999) AUTO THROTTLE Parts Diagram

Engine, Made in Japan

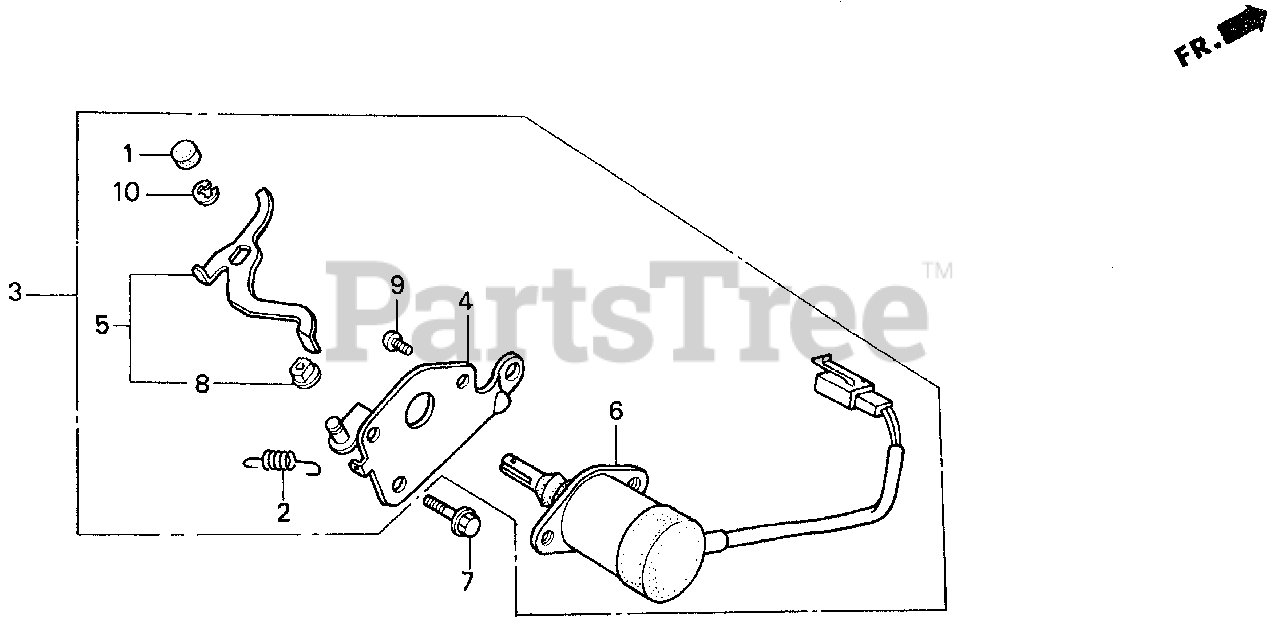

AUTO THROTTLE Parts Diagram

  • Title

1

Honda 16252-ZA1-000

SEE PART DETAILS - SUP; CAP, CHOKE LEVER
(Superseded to 16252-ZA1-010)

Note: (Honda Code 2159903).

$1.99

$

In Stock, only 2 left!

0

2

Honda 16268-893-000

SPRING, CHOKE RETURN

Note: (Honda Code 0788554).

$3.99

$

Usually ships in 3-6 days

0

3

Honda 16270-ZB4-000

SEE PART DETAILS - SUP; THROTTLE ASSY., AUTO
(Superseded to 16270-ZB4-010)

Note: (Honda Code 2303824).

$150.99

$

Usually ships in 3-6 days

0

4

Honda 16271-ZB4-000

STAY, SOLENOID THROTTLE

Note: (Honda Code 2303832).

$17.99

$

Usually ships in 3-6 days

0

5

Honda 16273-ZB4-000

LEVER, SOLENOID THROTTLE

Note: (Honda Code 2303840).

$8.99

$

Usually ships in 3-6 days

0

6

Honda 36160-ZB4-003

SOLENOID ASSY.
(Superseded to 36160-ZB4-013)

Note: (Honda Code 2279412).

$112.99

$

Usually ships in 3-6 days

0

7

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

Note: (Honda Code 0636845).

$1.99

$

In Stock, Qty 19

0

8

Honda 91502-ZB4-701

SEE PART DETAILS - PRI; BUSH, AUTO-THROTTLE LEVER

Note: (Honda Code 2326940).

$5.99

$

Usually ships in 3-6 days

0

9

Honda 93500-05008-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X8)

Note: (Honda Code 0145540).

$1.49

$

In Stock, Qty 8

0

10

Honda 94540-04018

E-RING (4MM)

Note: (Honda Code 2280089).

$3.99

$

Usually ships in 3-6 days

0
