GX240 K1 ED2 (GC04) - Honda Engine, Made in Japan (SN: GC04-3000001 - GC04-4399999) CONTROL CASE Parts Diagram

Engine, Made in Japan

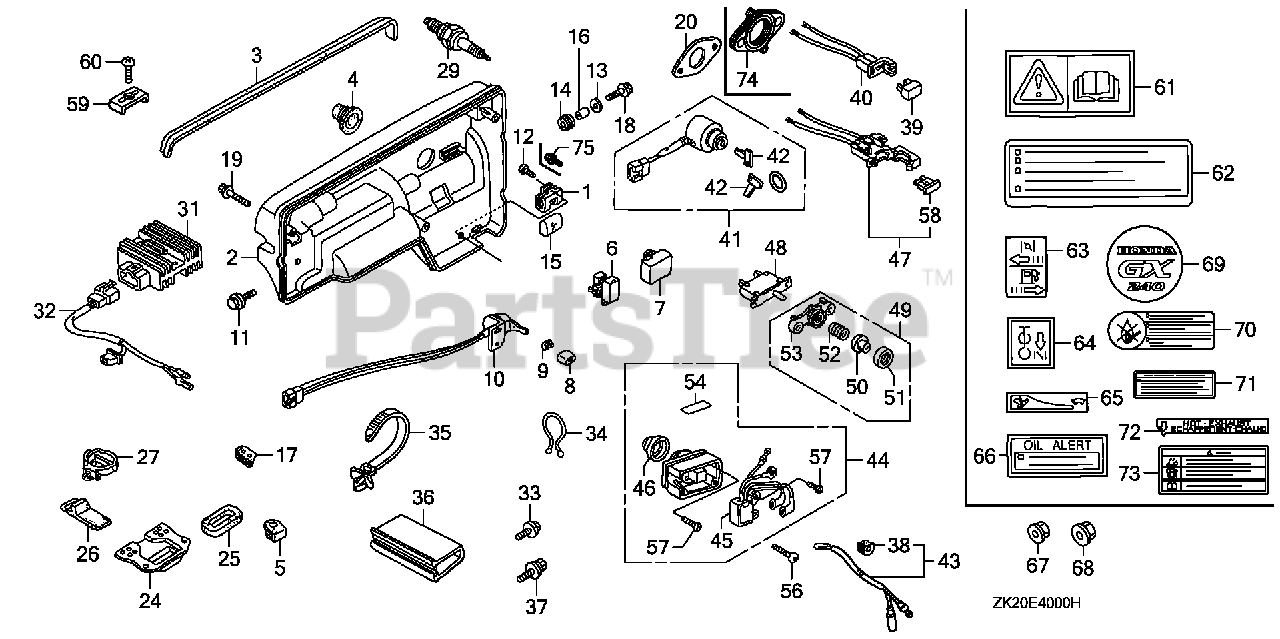

CONTROL CASE Parts Diagram

  • Title

1

Honda 30561-ZB4-000

CLIP, WIRE

$7.49

$

Usually ships in 3-6 days

0

2

Honda 31425-ZB4-010ZD

CASE, CONTROL *R280* (POWER RED)

Note: Use up to Engine SN 3351281.

$

$

Not available

3

Honda 31462-ZB4-000

RUBBER, CONTROL

Note: Use up to Engine SN 3351281.

$21.99

$

In Stock, only 1 left!

0

4

Honda 31482-ZB4-003

GROMMET, MAIN WIRE

Note: Use up to Engine SN 3351281.

$18.99

$

Usually ships in 3-6 days

0

5

Honda 31483-ZB4-003

GROMMET, SWITCH WIRE

Note: Use up to Engine SN 3351281.

$13.99

$

Usually ships in 3-6 days

0

8

Honda 32343-892-003

KNOB, PETCOCK LEVER

Note: Use up to Engine SN 3351281.

$13.99

$

Usually ships in 3-6 days

0

9

Honda 36106-892-003

BUSH, CONTROL KNOB

Note: Use up to Engine SN 3351281.

$6.99

$

Usually ships in 3-6 days

0

10

Honda 36110-ZB4-701

SEE PART DETAILS - SUP; SWITCH ASSY., ENGINE STOP
(Superseded to 36110-ZB4-702)

Note: Use up to Engine SN 3351281.

$35.99

$

Usually ships in 3-6 days

0

10

Honda 36110-ZB4-702

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP

Note: Use up to Engine SN 3351281.

$35.99

$

Usually ships in 3-6 days

0

11

Honda 95701-08020-08

BOLT, FLANGE (8X20)

Note: Use from Engine SN 3351282.

$2.49

$

Usually ships in 3-6 days

0

12

Honda 90101-692-000

SCREW, GLOVE BOX

Note: Use from Engine SN 3132286 to 3351281.

$1.99

$

Usually ships in 3-6 days

0

13

Honda 90506-500-000

WASHER, AIR DUCT

Note: Use up to Engine SN 3351281.

$

$

Currently unavailable

14

Honda 90852-898-000

RUBBER, CONTROL BOX

Note: Use up to Engine SN 3351281.

$5.49

$

In Stock, only 2 left!

0

15

Honda 91406-ZB4-000

TUBE, CORD

$12.99

$

Usually ships in 3-6 days

0

16

Honda 91552-898-000

COLLAR, CONTROL BOX

Note: Use up to Engine SN 3351281.

$5.49

$

Usually ships in 3-6 days

0

17

Honda 91601-ZB4-003

GROMMET, TUBE

Note: Use up to Engine SN 3351281.

$4.49

$

Usually ships in 3-6 days

0

18

Honda 95701-06018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

Note: Use up to Engine SN 3351281.

$2.49

$

In Stock, Qty 7

0

19

Honda 95701-06040-08

BOLT, FLANGE (6X40)

Note: Use from Engine SN 3132286 to 3351281.

$2.49

$

Usually ships in 3-6 days

0

29

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO)

$3.99

$

In Stock, Qty 8

0

75

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use from Engine SN 3351282.

$2.49

$

In Stock, Qty 17

0
