GX240 K1 ED2/A (GC04) - Honda Engine, Made in Japan (SN: GC04-4400001 - GC04-9999999) RECOIL STARTER (1) Parts Diagram

Engine, Made in Japan

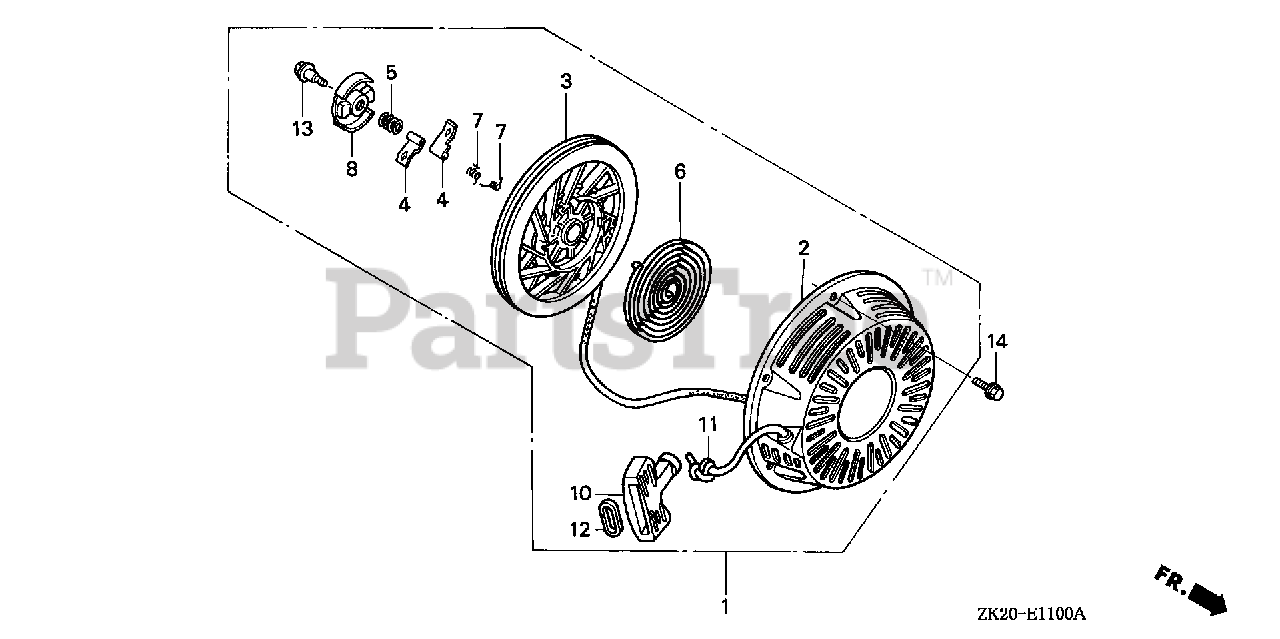

RECOIL STARTER (1) Parts Diagram

  • Title

1

Honda 28400-ZE2-W01ZN

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R280* (POWER RED)
(Superseded to 28400-ZE2-W02ZN)

$118.99

$

In Stock, only 2 left!

0

1

Honda 28400-ZE2-W02ZB

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *NH1* (BLACK)

$118.99

$

In Stock, only 1 left!

0

1

Honda 28400-ZE2-W02ZJ

STARTER ASSY., RECOIL *T68* (TSURUMI BLUE)

$118.99

$

Usually ships in 3-6 days

0

1

Honda 28400-ZE2-W02ZK

STARTER ASSY., RECOIL *Y131* (LIGHTNING YELLOW)

$116.99

$

Usually ships in 3-6 days

0

1

Honda 28400-ZE2-W02ZM

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *T80* (BAKERITE ORANGE)

$112.99

$

Usually ships in 3-6 days

0

1

Honda 28400-ZE2-W02ZN

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (POWER RED)

$118.99

$

In Stock, only 2 left!

0

2

Honda 28410-ZE2-W01ZA

SEE PART DETAILS - SUP; CASE, RECOIL STARTER *R8* (BRIGHT RED)
(Superseded to 28410-ZE2-W01ZN)

Note: Use up to Engine SN 4465232.

$133.99

$

In Stock, only 1 left!

0

2

Honda 28410-ZE2-W01ZB

CASE, RECOIL STARTER *NH1* (BLACK)

$156.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZE2-W01ZJ

CASE, RECOIL STARTER *T68* (TSURUMI BLUE)

$188.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZE2-W01ZK

CASE, RECOIL STARTER *Y131* (LIGHTNING YELLOW)

$165.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZE2-W01ZM

CASE, RECOIL STARTER *T80* (BAKERITE ORANGE)

$161.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZE2-W01ZN

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R280* (POWER RED)

$133.99

$

In Stock, only 1 left!

0

3

Honda 28421-ZE2-W01

PULLEY, RECOIL STARTER

$41.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER

$7.49

$

Usually ships in 3-6 days

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION

$6.49

$

In Stock, Qty 10

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN

$18.99

$

In Stock, only 2 left!

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET

$5.49

$

In Stock, Qty 12

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING

$14.99

$

Usually ships in 3-6 days

0

10

Honda 28461-ZE2-W02

SEE PART DETAILS - SUP; GRIP, STARTER
(Superseded to 28461-ZE2-W03)

$7.99

$

In Stock, Qty 12

0

10

Honda 28461-ZE2-W03

SEE PART DETAILS - PRI; GRIP, STARTER

$7.99

$

In Stock, Qty 12

0

11

Honda 28462-ZE2-W11

ROPE, RECOIL STARTER

$10.99

$

In Stock, only 2 left!

0

13

Honda 90004-ZE2-W01

SCREW, CENTER

$4.49

$

In Stock, Qty 10

0

14

Honda 90008-ZE2-003

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 11

0
