GX240 HA (GC04) - Honda Engine, Made in Japan (SN: GC04-1000001 - GC04-1528199) CARBURETOR (2) Parts Diagram

Engine, Made in Japan

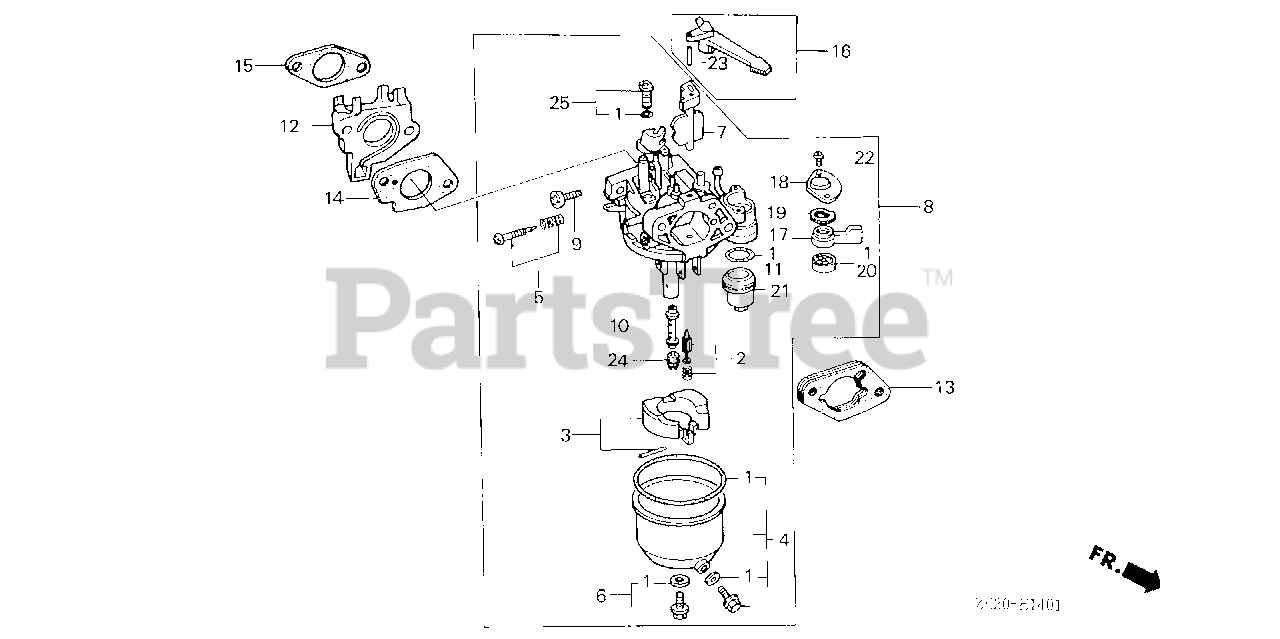

CARBURETOR (2) Parts Diagram

  • Title

1

Honda 16010-ZE2-811

SEE PART DETAILS - SUP; GASKET SET (CARBURETOR NO.)
(Superseded to 16010-ZE2-812)

Note: Use up to Engine SN BE15B D.

$19.99

$

In Stock, Qty 12

0

1

Honda 16010-ZE2-812

SEE PART DETAILS - PRI; GASKET SET (CARBURETOR NO.) (INCLUDES 16173-001-004)

Note: Use up to Engine SN BE15B D.

$19.99

$

In Stock, Qty 12

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT

$45.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZA0-931

FLOAT SET

$51.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE8-005

CHAMBER SET, FLOAT

$46.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZA0-931

SCREW SET, PILOT

$16.99

$

In Stock, only 1 left!

0

6

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

6

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

7

Honda 16044-ZE2-005

CHOKE SET

$37.99

$

Usually ships in 3-6 days

0

8

Honda 16100-ZE2-812

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE15B C)
(Superseded to 16100-ZE2-814)

Note: Use up to Engine SN 1062262.

$138.99

$

In Stock, only 2 left!

0

8

Honda 16100-ZE2-814

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE15B E)

$138.99

$

In Stock, only 2 left!

0

9

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

10

Honda 16166-ZE2-015

NOZZLE, MAIN

$35.99

$

Usually ships in 3-6 days

0

11

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$7.49

$

In Stock, only 1 left!

0

12

Honda 16211-ZE2-000

SEE PART DETAILS - SUP; INSULATOR, CARBURETOR
(Superseded to 16211-ZE2-010)

$10.99

$

In Stock, Qty 10

0

13

Honda 16220-ZA0-700

SEE PART DETAILS - SUP; SPACER, CARBURETOR

Note: Use up to Engine SN BE15B B.

$

$

Not available

13

Honda 16220-ZA0-700

SEE PART DETAILS - SUP; SPACER, CARBURETOR

$

$

Not available

13

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR

Note: Use up to Engine SN BE15B B.

$11.99

$

In Stock, only 3 left!

0

13

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR

Note: Use from Engine SN BE15B D to BE15B D.

$11.99

$

In Stock, only 3 left!

0

13

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR

Note: Use from Engine SN BE15B E.

$11.99

$

In Stock, only 3 left!

0

13

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$11.99

$

In Stock, only 3 left!

0

14

Honda 16221-ZA0-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-ZA0-800)

$2.49

$

In Stock, Qty 20+

0

14

Honda 16221-ZA0-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (CARBURETOR NO.)

$2.49

$

In Stock, Qty 20+

0

15

Honda 16223-ZA0-800

GASKET, INSULATOR (CARBURETOR NO.)

$2.99

$

In Stock, Qty 19

0

16

Honda 16610-ZE1-000

LEVER, CHOKE (STD)

$11.99

$

In Stock, Qty 8

0

17

Honda 16953-ZE1-406

SEE PART DETAILS - PRI; LEVER, VALVE

$14.99

$

Usually ships in 3-6 days

0

17

Honda 16953-ZE1-811

SEE PART DETAILS - SUP; LEVER, PETCOCK
(Superseded to 16953-ZE1-406)

$14.99

$

Usually ships in 3-6 days

0

18

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING

$4.49

$

In Stock, only 1 left!

0

19

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$4.49

$

Usually ships in 3-6 days

0

20

Honda 16957-ZE1-811

SEE PART DETAILS - SUP; GASKET, PETCOCK (CARBURETOR NO.)
(Superseded to 16957-ZE1-812)

Note: Use up to Engine SN BE15B D.

$4.49

$

In Stock, Qty 20+

0

20

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK (CARBURETOR NO.)

Note: Use up to Engine SN BE15B D.

$4.49

$

In Stock, Qty 20+

0

21

Honda 16967-ZE0-811

CUP, FUEL STRAINER

$23.99

$

In Stock, only 2 left!

0

22

Honda 93500-03008-0G

SCREW, PAN (3X8)

Note: Use from Engine SN BE15B E.

$

$

Not available

22

Honda 93500-03008-0H

SCREW, PAN (3X8)

Note: Use up to Engine SN BE15B D.

$0.99

$

In Stock, Qty 8

0

23

Honda 94305-20122

PIN, SPRING (2X12)

$2.49

$

In Stock, only 4 left!

0

24

Honda 99101-124-0820

JET, MAIN (#82) (CARBURETOR NO.)

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

24

Honda 99101-124-0850

JET, MAIN (#85) (CARBURETOR NO.)

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

24

Honda 99101-124-0880

JET, MAIN (#88)

$12.99

$

Usually ships in 3-6 days

0

25

Honda 99204-ZE2-0380

JET SET, PILOT (#38)

$23.99

$

Usually ships in 3-6 days

0
