GX22 TA (GCAF) - Honda Engine, Made in Japan (SN: GCAF-1000001 - GCAF-1399999) FUEL TANK (2) Parts Diagram

Engine, Made in Japan

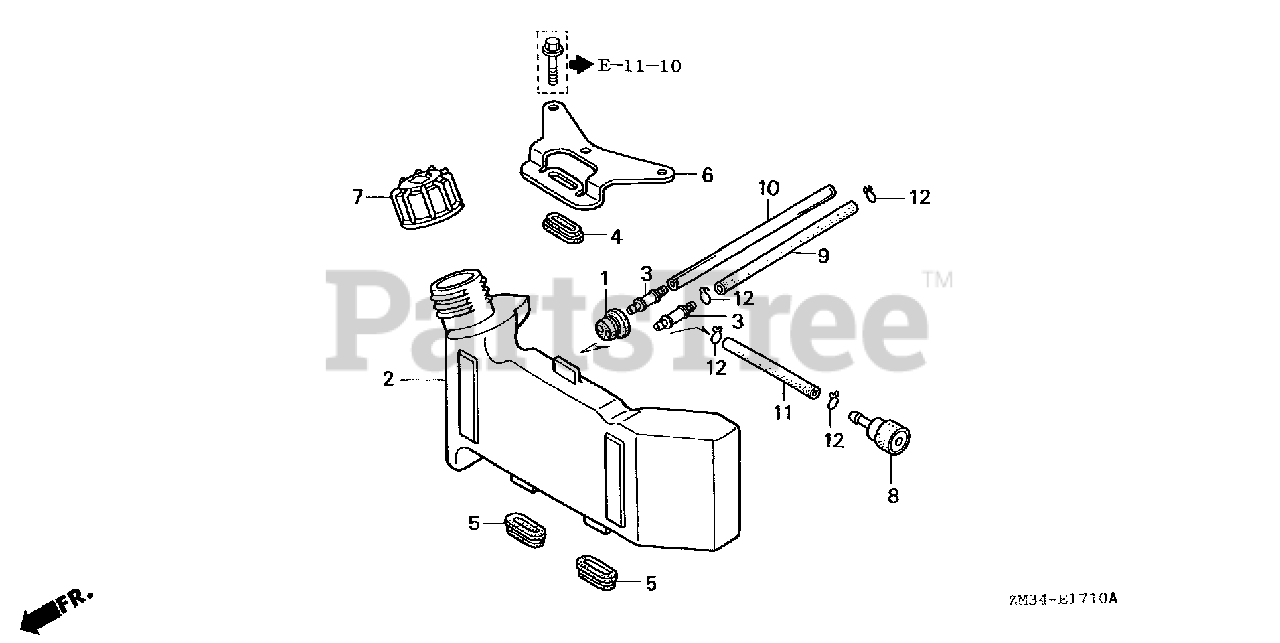

FUEL TANK (2) Parts Diagram

  • Title

1

Honda 17504-ZM3-003

GROMMET, FUEL TUBE

Note: (Honda Code 5421227).

$4.49

$

In Stock, Qty 12

0

2

Honda 17511-ZM5-821

TANK, FUEL

Note: (Honda Code 5813688).

$

$

Currently unavailable

3

Honda 17519-ZM5-003

FITTING

Note: (Honda Code 5791686).

$5.99

$

In Stock, Qty 15

0

4

Honda 17532-ZM3-010

RUBBER A, TANK MOUNTING

Note: (Honda Code 5686944).

$2.49

$

In Stock, Qty 6

0

5

Honda 17533-ZM3-000

RUBBER B, TANK MOUNTING
(Superseded to 17532-ZM3-010)

Note: (Honda Code 5686951).

$2.49

$

In Stock, Qty 6

0

6

Honda 17561-ZM3-010

STAY, FUEL TANK

Note: (Honda Code 5686969).

$

$

Not available

7

Honda 17620-ZM3-043

CAP ASSY., FUEL TANK
(Superseded to 17620-ZM3-063)

Note: (Honda Code 6446488).

$13.99

$

Usually ships in 3-6 days

0

8

Honda 17672-ZM3-003

FILTER, FUEL
(Superseded to 17672-Z0H-003)

Note: (Honda Code 5383633).

$6.99

$

Usually ships in 3-6 days

0

9

Honda 17701-ZM5-003

TUBE, FUEL

Note: (Honda Code 5791702).

$5.99

$

In Stock, Qty 17

0

10

Honda 17702-ZM5-003

TUBE, FUEL RETURN

Note: (Honda Code 5791710).

$2.99

$

In Stock, Qty 18

0

11

Honda 17703-ZM5-003

TUBE, FUEL

Note: (Honda Code 5791728).

$6.49

$

In Stock, Qty 9

0

12

Honda 91401-ZM3-003

CLIP, TUBE

Note: (Honda Code 5581459).

$1.99

$

Usually ships in 3-6 days

0
