GX22 TA (GCAF) - Honda Engine, Made in Japan (SN: GCAF-1000001 - GCAF-1399999) CRANKCASE SET (2) Parts Diagram

Engine, Made in Japan

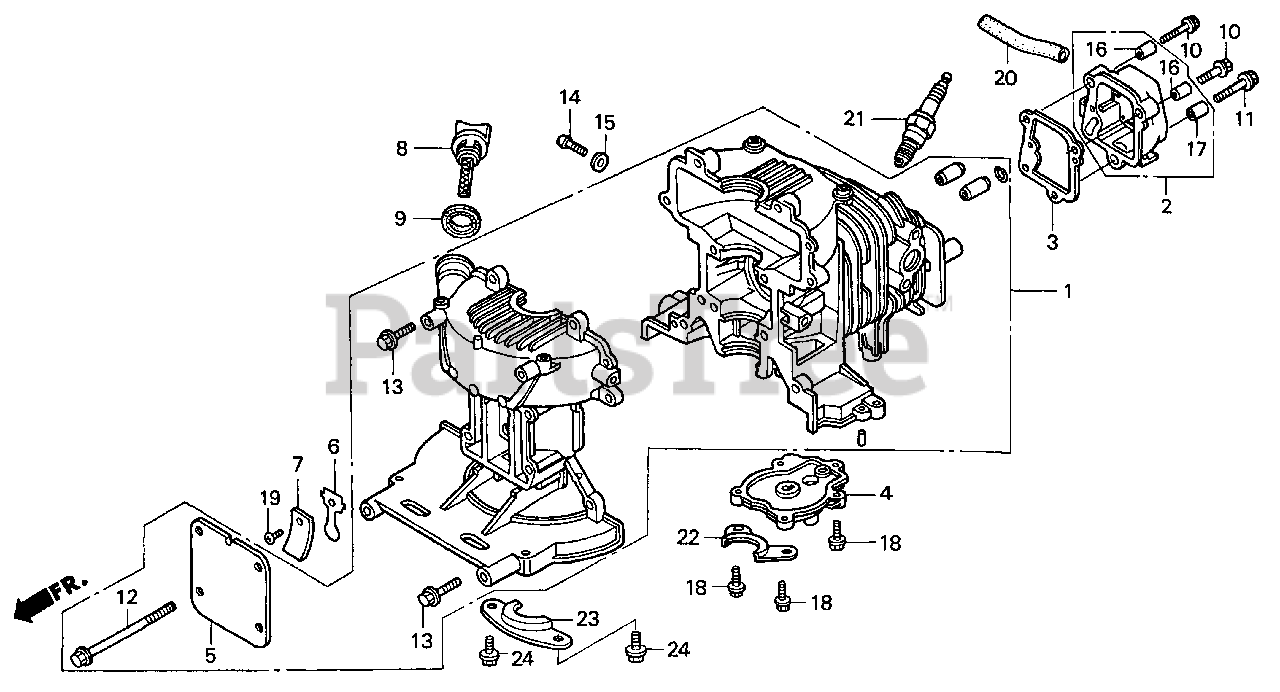

CRANKCASE SET (2) Parts Diagram

  • Title

1

Honda 11010-ZM3-010

CRANKCASE SET

Note: Use up to Engine SN 1138646. (Honda Code 6011977).

$

$

Currently unavailable

1

Honda 11010-ZM3-020

CRANKCASE SET

Note: Use from Engine SN 1138647 to 1205100. (Honda Code 6433171).

$

$

Not available

1

Honda 11010-ZM3-030

CRANKCASE SET

Note: Use from Engine SN 1205101. (Honda Code 6478861).

$

$

Currently unavailable

2

Honda 12310-ZM3-003

COVER COMP., HEAD

Note: (Honda Code 6005524).

$19.99

$

Usually ships in 3-6 days

0

3

Honda 12312-ZM3-020

GASKET, HEAD COVER

Note: (Honda Code 5904891).

$3.99

$

In Stock, Qty 5

0

4

Honda 14121-ZM3-000

COVER, CAMSHAFT

Note: Use up to Engine SN 1138646. (Honda Code 5383278).

$12.99

$

Usually ships in 3-6 days

0

4

Honda 14121-ZM3-010

COVER, CAMSHAFT

Note: Use from Engine SN 1138647. (Honda Code 6139745).

$15.99

$

Usually ships in 3-6 days

0

5

Honda 15511-ZM3-000

COVER, OIL OUTLET VALVE

Note: (Honda Code 5383393).

$5.99

$

Usually ships in 3-6 days

0

6

Honda 15571-ZM3-003

VALVE, OIL OUTLET

Note: (Honda Code 5383401).

$4.49

$

Usually ships in 3-6 days

0

7

Honda 15572-ZM3-000

PLATE, STOPPER

Note: (Honda Code 5383419).

$2.49

$

Usually ships in 3-6 days

0

8

Honda 15620-ZM3-003

CAP, OIL FILLER
(Superseded to 15600-ZM3-003)

Note: (Honda Code 5383427).

$6.49

$

In Stock, only 1 left!

0

9

Honda 15625-ZE1-003

GASKET, OIL FILLER CAP

Note: (Honda Code 4497947).

$3.49

$

In Stock, only 3 left!

0

10

Honda 90001-ZM3-000

BOLT, FLANGE (5X22)

Note: (Honda Code 5688874).

$

$

Not available

11

Honda 90002-ZM3-000

BOLT, FLANGE (5X14)

Note: (Honda Code 5688882).

$3.99

$

Usually ships in 3-6 days

0

12

Honda 90003-ZM3-000

BOLT, FLANGE (5X55)

Note: (Honda Code 5384433).

$1.99

$

Usually ships in 3-6 days

0

13

Honda 90005-ZM3-000

BOLT, FLANGE (5X18)

Note: (Honda Code 5384458).

$1.99

$

In Stock, Qty 8

0

14

Honda 90011-ZM3-000

SCREW, PAN (6X8)

Note: (Honda Code 5384474).

$1.99

$

Usually ships in 3-6 days

0

15

Honda 90481-GW3-000

WASHER, SEALING (6.5MM)

Note: (Honda Code 3491685).

$2.49

$

In Stock, only 1 left!

0

16

Honda 91501-ZM3-010

COLLAR, HEAD COVER

Note: (Honda Code 5705348).

$1.99

$

In Stock, Qty 5

0

17

Honda 91506-ZM3-000

COLLAR A, HEAD COVER

Note: (Honda Code 5705355).

$1.99

$

In Stock, only 4 left!

0

18

Honda 93401-04016-00

BOLT-WASHER (4X16)

Note: (Honda Code 5384581).

$1.49

$

Usually ships in 3-6 days

0

19

Honda 93500-03005-0A

SCREW, PAN (3X5)

Note: (Honda Code 0156950).

$1.49

$

Usually ships in 3-6 days

0

20

Honda 95005-70003-30M

BULK HOSE, VACUUM (7X3000) (7X68)

Note: (Honda Code 2380632).

$35.99

$

Usually ships in 3-6 days

0

21

Honda 98056-55757

SPARK PLUG (U16FSR-UB)
(Superseded to 98056-55777)

Note: (Honda Code 5384623).

$4.49

$

In Stock, Qty 20+

0

21

Honda 98056-55777

SPARK PLUG (R5HSB)

Note: (Honda Code 5384631).

$4.49

$

In Stock, Qty 20+

0

22

Honda 11113-ZM3-000

GUARD A, GRASS

Note: Use from Engine SN 1138647. (Honda Code 6020010).

$4.99

$

Usually ships in 3-6 days

0

23

Honda 11114-ZM3-000

GUARD B, GRASS

Note: Use from Engine SN 1138647. (Honda Code 6020028).

$5.99

$

Usually ships in 3-6 days

0

24

Honda 93401-04010-00

BOLT-WASHER (4X10)

Note: Use from Engine SN 1138647. (Honda Code 6014377).

$0.99

$

Usually ships in 3-6 days

0
