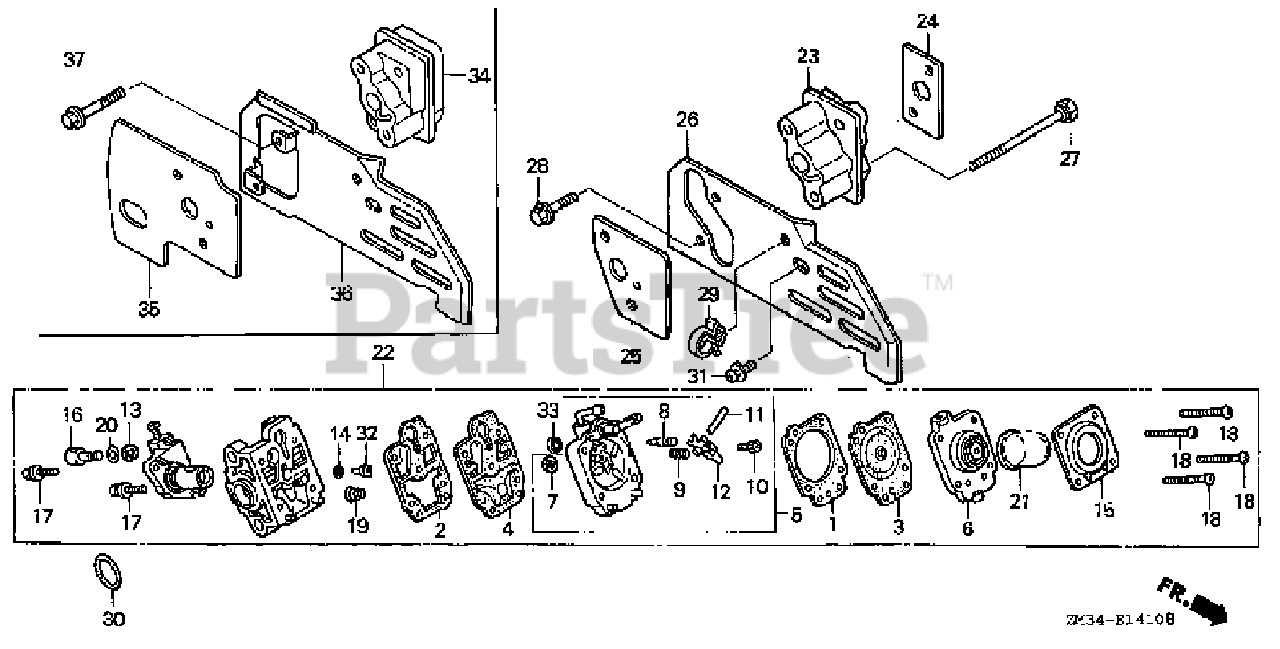

GX22 TA (GCAF) - Honda Engine, Made in Japan (SN: GCAF-1000001 - GCAF-1399999) CARBURETOR (2) Parts Diagram

Engine, Made in Japan

CARBURETOR (2) Parts Diagram

  • Title

1

Honda 16010-ZM3-004

GASKET, METERING DIAPHRAGM

Note: (Honda Code 5581129).

$2.49

$

In Stock, Qty 7

0

2

Honda 16011-ZM3-004

GASKET, PUMP
(Superseded to 16011-ZM3-014)

Note: Use up to Engine SN WYL 83. (Honda Code 5581137).

$4.99

$

In Stock, only 3 left!

0

2

Honda 16011-ZM3-014

GASKET, PUMP

Note: Use up to Engine SN WYL 83. (Honda Code 5994918).

$4.99

$

In Stock, only 3 left!

0

2

Honda 16011-ZM3-014

GASKET, PUMP

Note: Use from Engine SN WYL 83A. (Honda Code 5994918).

$4.99

$

In Stock, only 3 left!

0

3

Honda 16013-ZM3-004

DIAPHRAGM ASSY., METERING

Note: (Honda Code 5581152).

$8.99

$

In Stock, only 1 left!

0

4

Honda 16014-ZM3-004

DIAPHRAGM, PUMP

Note: (Honda Code 5581160).

$4.49

$

In Stock, only 3 left!

0

5

Honda 16015-ZM3-004

BODY ASSY., PUMP

Note: Use up to Engine SN WYL 83A. (Honda Code 5581178).

$

$

Currently unavailable

5

Honda 16015-ZM3-802

BODY ASSY., PUMP

Note: Use from Engine SN WYL 98. (Honda Code 6062079).

$

$

Not available

6

Honda 16017-ZM3-004

BODY ASSY., AIR PURGE

Note: (Honda Code 5581186).

$10.99

$

In Stock, Qty 8

0

7

Honda 16018-ZM3-004

SCREEN, INLET

Note: Use up to Engine SN WYL 83A. (Honda Code 5581194).

$2.99

$

In Stock, only 4 left!

0

7

Honda 16018-ZM3-802

SCREEN, INLET

Note: Use from Engine SN WYL 98. (Honda Code 6062087).

$1.49

$

In Stock, only 2 left!

0

8

Honda 16019-ZM3-004

VALVE, IN. NEEDLE

Note: (Honda Code 5581202).

$5.49

$

In Stock, only 1 left!

0

9

Honda 16020-ZM3-004

SPRING, METERING LEVER

Note: (Honda Code 5581210).

$2.49

$

In Stock, only 3 left!

0

10

Honda 16021-ZM3-004

SCREW, METERING LEVER PIN

Note: (Honda Code 5581228).

$2.49

$

In Stock, only 2 left!

0

11

Honda 16022-ZM3-004

PIN, METERING LEVER

Note: (Honda Code 5581236).

$

$

Currently unavailable

12

Honda 16023-ZM3-004

LEVER, METERING

Note: (Honda Code 5581244).

$2.99

$

In Stock, Qty 6

0

13

Honda 16024-ZM3-004

RING, SPRING RETAINING

Note: (Honda Code 5581251).

$2.49

$

Usually ships in 3-6 days

0

14

Honda 16025-ZM3-004

O-RING

Note: (Honda Code 5581269).

$2.99

$

In Stock, Qty 8

0

15

Honda 16026-ZM3-004

COVER, PRIMER PUMP

Note: (Honda Code 5581277).

$3.99

$

In Stock, only 1 left!

0

16

Honda 16027-ZM3-004

SWIVEL

Note: (Honda Code 5581285).

$3.49

$

Usually ships in 3-6 days

0

17

Honda 16028-ZM3-004

SCREW, THROTTLE COLLAR

Note: (Honda Code 5581293).

$1.99

$

In Stock, only 3 left!

0

18

Honda 16029-ZM3-004

SCREW, PUMP COVER

Note: (Honda Code 5581301).

$1.99

$

In Stock, Qty 6

0

19

Honda 16030-ZM3-004

SPRING, PUMP

Note: (Honda Code 5581319).

$1.99

$

In Stock, Qty 5

0

20

Honda 16031-ZM3-004

WASHER

Note: (Honda Code 5581327).

$1.99

$

Usually ships in 3-6 days

0

21

Honda 16032-ZM3-004

PUMP, PRIMER

Note: (Honda Code 5581335).

$2.99

$

In Stock, Qty 10

0

22

Honda 16100-ZM3-843

CARBURETOR ASSY. (WYL-83A)
(Superseded to 16100-ZM5-A95)

Note: Use up to Engine SN 1146866. (Honda Code 5960661).

$95.99

$

In Stock, only 1 left!

0

22

Honda 16100-ZM3-845

CARBURETOR ASSY. (WYL 98A)

Note: Use from Engine SN 1185218 to 1205100. (Honda Code 6477384).

$

$

Not available

22

Honda 16100-ZM3-846

CARBURETOR ASSY. (WYL 132)

Note: Use from Engine SN 1205101. (Honda Code 6478903).

$

$

Currently unavailable

22

Honda 16100-ZM5-845

CARBURETOR ASSY. (WYL-99)
(Superseded to 16100-ZM5-A95)

Note: Use up to Engine SN 1185217. (Honda Code 6053706).

$95.99

$

In Stock, only 1 left!

0

22

Honda 16100-ZM5-846

CARBURETOR ASSY. (WYL-99A)

Note: Use up to Engine SN 1185217. (Honda Code 6384309).

$

$

Currently unavailable

23

Honda 16211-ZM3-000

INSULATOR, CARBURETOR

Note: Use up to Engine SN 1205100. (Honda Code 5383476).

$10.99

$

Usually ships in 3-6 days

0

24

Honda 16212-ZM3-000

GASKET, INSULATOR

Note: (Honda Code 5383484).

$2.49

$

In Stock, Qty 8

0

25

Honda 16221-ZM3-G10

GASKET, CARBURETOR

Note: Use up to Engine SN 1146866. (Honda Code 6059430).

$5.49

$

In Stock, only 1 left!

0

25

Honda 16221-ZM3-000

GASKET, CARBURETOR
(Superseded to 16221-ZM3-G10)

Note: Use up to Engine SN 1146866. (Honda Code 5383492).

$5.49

$

In Stock, only 1 left!

0

26

Honda 19651-ZM3-000

GUIDE, AIR IN.

Note: Use up to Engine SN 1205100. (Honda Code 5383740).

$

$

Not available

27

Honda 90010-ZM3-000

BOLT, HEX. (5X75)

Note: (Honda Code 5384466).

$1.49

$

In Stock, only 2 left!

0

28

Honda 90112-GK8-010

BOLT, FLANGE (5X22)

Note: Use up to Engine SN 1205100. (Honda Code 4034492).

$3.49

$

Usually ships in 3-6 days

0

29

Honda 90659-680-013

CLIP, WIRE HARNESS

Note: (Honda Code 1965425).

$8.49

$

Usually ships in 3-6 days

0

30

Honda 91301-ZM3-000

O-RING (14.8X2.4)

Note: (Honda Code 5384524).

$1.49

$

In Stock, Qty 5

0

31

Honda 93894-05010-00

SCREW-WASHER (5X10)

Note: (Honda Code 5384607).

$1.49

$

In Stock, Qty 10

0

32

Honda 99101-ZM3-0310

JET (#31.5)

Note: (Optional). Use from Engine SN WYL 132. (Honda Code 6479018).

$7.99

$

Usually ships in 3-6 days

0

32

Honda 99101-ZM3-0320

JET (#32.5)

Note: (Optional). Use from Engine SN WYL 132. (Honda Code 6479026).

$7.99

$

Usually ships in 3-6 days

0

32

Honda 99101-ZM3-0330

JET (#33.5)

Note: Use from Engine SN WYL 132. (Honda Code 6447023).

$8.49

$

Usually ships in 3-6 days

0

32

Honda 99101-ZM3-0340

JET (#34)

Note: (Optional). Use up to Engine SN WYL 83. (Honda Code 5795935).

$7.49

$

Usually ships in 3-6 days

0

32

Honda 99101-ZM3-0350

JET (#35)

Note: (Optional). Use up to Engine SN WYL 83. (Honda Code 5795943).

$6.49

$

Usually ships in 3-6 days

0

32

Honda 99101-ZM3-0360

JET (#36)

Note: Use up to Engine SN WYL 83. (Honda Code 5581350).

$6.99

$

Usually ships in 3-6 days

0

32

Honda 99101-ZM3-0360

JET (#36)

Note: (Optional). Use from Engine SN WYL 83A to WYL 98A. (Honda Code 5581350).

$6.99

$

Usually ships in 3-6 days

0

32

Honda 99101-ZM3-0370

JET (#37)

Note: (Optional). Use from Engine SN WYL 83A to WYL 98A. (Honda Code 5581368).

$

$

Not available

32

Honda 99101-ZM3-0380

JET (#38)

Note: Use from Engine SN WYL 83A to WYL 98A. (Honda Code 5581384).

$6.99

$

Usually ships in 3-6 days

0

33

Honda 16035-ZM3-802

FILTER, FUEL INLET

Note: Use from Engine SN WYL 98. (Honda Code 6062095).

$11.99

$

In Stock, only 2 left!

0

34

Honda 16211-ZM3-700

INSULATOR, CARBURETOR

Note: Use from Engine SN 1205101. (Honda Code 6478911).

$11.99

$

In Stock, only 1 left!

0

35

Honda 16221-ZM3-G10

GASKET, CARBURETOR

Note: Use from Engine SN 1146867. (Honda Code 6059430).

$5.49

$

In Stock, only 1 left!

0

36

Honda 19651-ZM3-U30

GUIDE, AIR IN.

Note: Use from Engine SN 1205101. (Honda Code 6446496).

$5.49

$

In Stock, only 3 left!

0

37

Honda 90112-ZM3-U30

BOLT, FLANGE (5X32)

Note: Use from Engine SN 1205101. (Honda Code 6446983).

$2.49

$

In Stock, only 1 left!

0
