GX22 SA (GCAF) - Honda Engine, Made in Japan (SN: GCAF-1000001 - GCAF-1399999) MUFFLER (1) Parts Diagram

Engine, Made in Japan

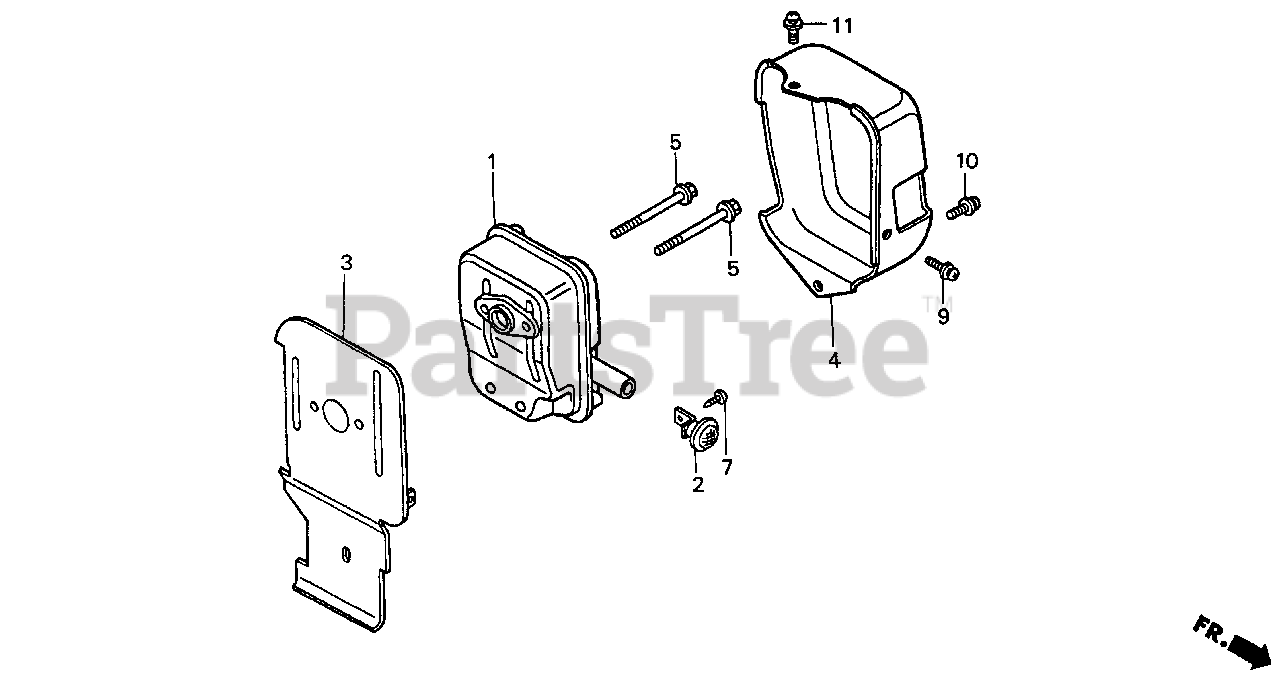

MUFFLER (1) Parts Diagram

  • Title

1

Honda 18310-ZM3-800

MUFFLER COMP.

Note: (Honda Code 5383682).

$

$

Not available

2

Honda 18355-ZM3-801

ARRESTER, SPARK

Note: (Honda Code 5383690).

$

$

Not available

3

Honda 18515-ZM3-000

GUIDE, AIR EX.

Note: (Honda Code 5383708).

$

$

Not available

4

Honda 19722-ZM3-000

INNER COVER, TOP

Note: Use up to Engine SN 1018994. (Honda Code 5383765).

$

$

Currently unavailable

4

Honda 19722-ZM3-810

INNER COVER, TOP

Note: Use from Engine SN 1018995. (Honda Code 5646922).

$17.99

$

Usually ships in 3-6 days

0

5

Honda 90004-ZM3-000

BOLT, FLANGE (5X50)

Note: (Honda Code 5384441).

$

$

Not available

7

Honda 90055-ZE1-000

SCREW, TAPPING (4X6)

Note: (Honda Code 1431121).

$1.49

$

In Stock, Qty 20+

0

9

Honda 93891-05008-00

SCREW-WASHER (5X8)

Note: (Honda Code 2374221).

$1.49

$

In Stock, only 1 left!

0

10

Honda 93894-05010-00

SCREW-WASHER (5X10)

Note: (Honda Code 5384607).

$1.49

$

In Stock, Qty 10

0

11

Honda 93894-05016-00

SCREW-WASHER (5X16)

Note: (Honda Code 1226299).

$1.49

$

In Stock, Qty 8

0
