GX200 VAA (GCAE) - Honda Engine, Made in Japan (SN: GCAE-1000001 - GCAE-1899999) MUFFLER (2) Parts Diagram

Engine, Made in Japan

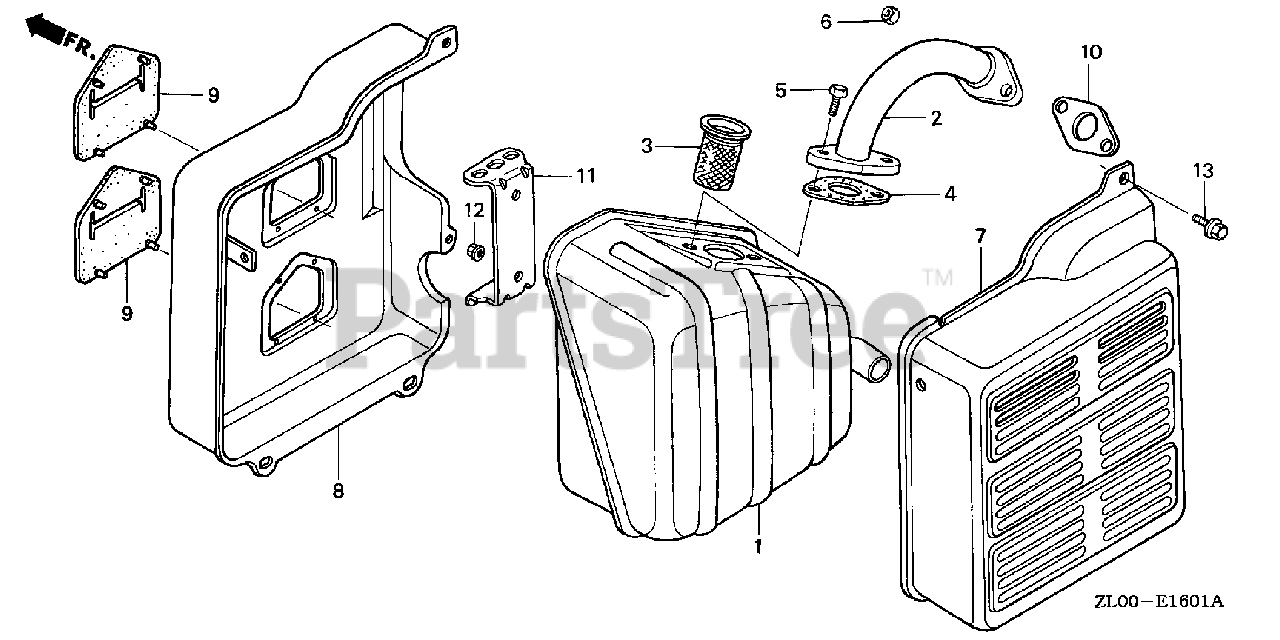

MUFFLER (2) Parts Diagram

  • Title

1

Honda 18310-ZB3-C00

MUFFLER

Note: (Honda Code 4031779).

$

$

Not available

2

Honda 18330-ZB2-000

PIPE, EX.

Note: (Honda Code 1496736).

$41.99

$

Usually ships in 3-6 days

0

4

Honda 18381-ZE1-800

GASKET, MUFFLER
(Superseded to 18381-ZE1-801)

Note: (Honda Code 4006565).

$4.99

$

Usually ships in 3-6 days

0

5

Honda 92101-08020-0A

BOLT, HEX. (8X20)

Note: (Honda Code 2936243).

$2.49

$

Usually ships in 3-6 days

0

6

Honda 94001-08000-0S

NUT, HEX. (8MM)

Note: (Honda Code 0167338).

$1.99

$

In Stock, only 1 left!

0

7

Honda 18320-ZB2-000

PROTECTOR, MUFFLER (OUTER)

Note: (Honda Code 1496702).

$84.99

$

Usually ships in 3-6 days

0

8

Honda 18325-ZH8-T90

PROTECTOR, MUFFLER (INNER) (DENYO)

Note: (Honda Code 4786281).

$86.99

$

Usually ships in 3-6 days

0

9

Honda 18329-ZB2-000

SEAL, MUFFLER PROTECTOR

Note: (Honda Code 1496728).

$13.99

$

Usually ships in 3-6 days

0

10

Honda 18381-ZH8-800

GASKET, MUFFLER
(Superseded to 18381-ZH8-801)

Note: (Honda Code 3683745).

$4.49

$

In Stock, only 1 left!

0

11

Honda 18338-ZB3-E30

STAY, MUFFLER

Note: (Honda Code 4031787).

$21.99

$

Usually ships in 3-6 days

0

13

Honda 95701-06012-00

BOLT, FLANGE (6X12)

Note: (Honda Code 2105799).

$2.49

$

In Stock, Qty 20+

0
