GX200 UT2 QXD9 (GCBTT) - Honda Engine, Made in Thailand (SN: GCBTT-1000001 - GCBTT-9999999) FUEL TANK (2) Parts Diagram
Engine, Made in Thailand

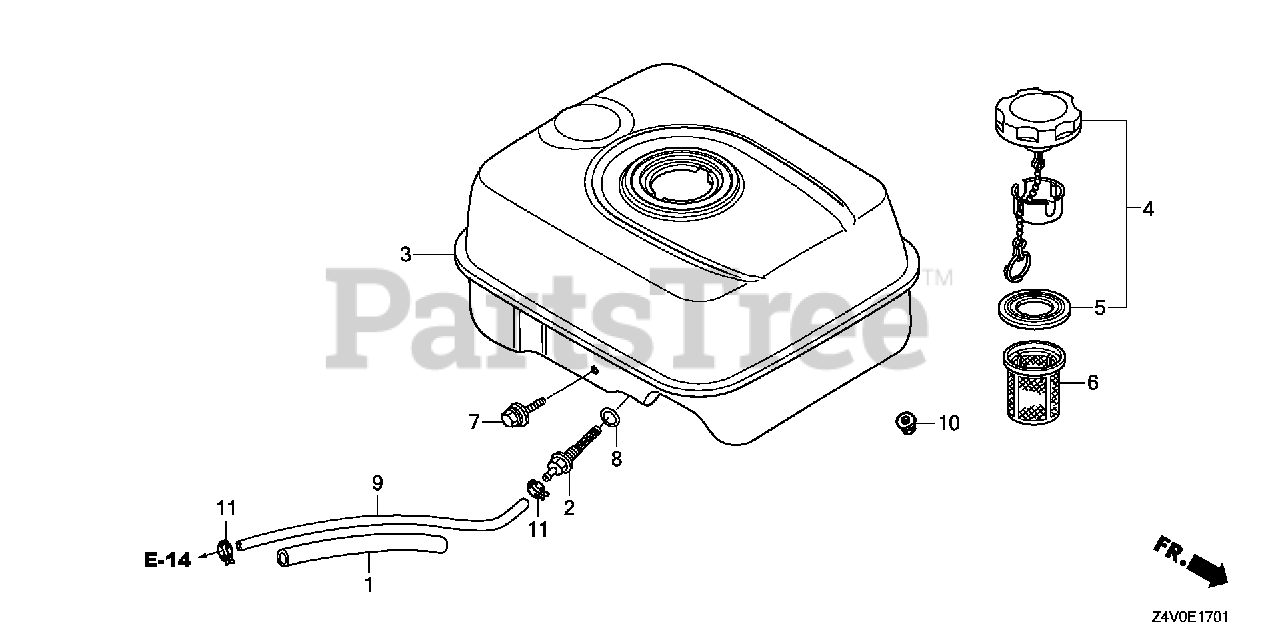

FUEL TANK (2) Parts Diagram
Honda 16854-ZH8-000
RUBBER, SUPPORTER (107MM)
$4.99
$
In Stock, Qty 14
Honda 16955-ZE1-010
JOINT, FUEL TANK
$8.99
$
In Stock, Qty 20+
Honda 17510-Z4M-000ZA
TANK, FUEL *NH31* (MCKINLEY WHITE)
$65.99
$
In Stock, only 1 left!
Honda 17620-Z4H-020
SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-Z4H-900)
Note: Use up to Engine SN 1035885.
$69.99
$
Usually ships in 3-6 days
$69.99
$
Usually ships in 3-6 days
Honda 17631-Z0T-801
GASKET, FUEL FILLER CAP (39X62X3) (RADICON)
$0.99
$
In Stock, Qty 8
Honda 90004-ZL0-003
BOLT, FLANGE (6X34)
$1.99
$
Usually ships in 3-6 days
Honda 91353-671-003
O-RING (13.5X1.5) (ARAI)
$3.99
$
In Stock, Qty 20+
$3.99
$
In Stock, Qty 20+
$7.49
$
In Stock, only 1 left!
Honda 94050-06000
SEE PART DETAILS - PRI; NUT, FLANGE (6MM)
$0.99
$
In Stock, Qty 20+
Honda 95002-40800-08
CLAMP, TUBE (D8)
$2.99
$
In Stock, Qty 6
