GX200 UT2 QG2/A (GCBTT) - Honda Engine, Made in Thailand (SN: GCBTT-2000001 - GCBTT-9999999) PISTON Parts Diagram

Engine, Made in Thailand

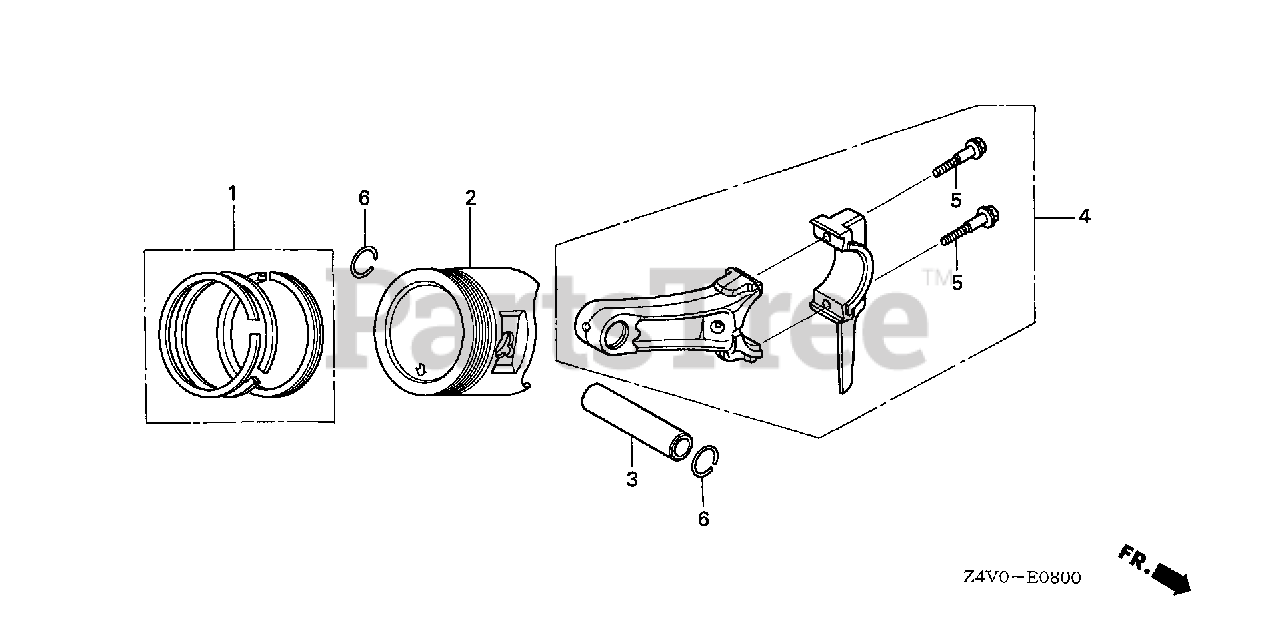

PISTON Parts Diagram

  • Title

1

Honda 13010-Z4K-004

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (TPR)

$32.99

$

In Stock, only 1 left!

0

1

Honda 13010-Z4M-003

RING SET, PISTON (STD) (RIKEN)

$40.99

$

Usually ships in 3-6 days

0

1

Honda 13011-Z4K-004

SEE PART DETAILS - PRI; RING SET, PISTON (0.25) Use from Engine SN 1314913.

Note: (Optional)

$

$

Not available

1

Honda 13011-Z4M-003

RING SET, PISTON (0.25) (RIKEN)

Note: (Optional)

$

$

Not available

1

Honda 13012-Z4K-004

SEE PART DETAILS - PRI; RING SET, PISTON (0.50) (TPR)

Note: (Optional).

$

$

Not available

1

Honda 13012-Z4M-003

RING SET, PISTON (0.50) (RIKEN)
(Superseded to 13010-Z4M-003)

Note: (Optional).

$40.99

$

Usually ships in 3-6 days

0

1

Honda 13013-Z4K-004

RING SET, PISTON (0.75) Use from Engine SN 1314913.

Note: (Optional).

$

$

Not available

1

Honda 13013-Z4M-003

RING SET, PISTON (0.75) (RIKEN)

Note: (Optional).

$

$

Not available

2

Honda 13101-Z4V-800

SEE PART DETAILS - PRI; PISTON (STD)

$24.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZL0-020

PISTON (0.25)

Note: (Optional)

$

$

Not available

2

Honda 13103-ZL0-020

PISTON (0.50)

Note: (Optional)

$

$

Not available

2

Honda 13104-ZL0-020

PISTON (0.75)

Note: (Optional)

$

$

Not available

3

Honda 13111-Z4M-000

PIN, PISTON

Note: Use up to Engine SN 2272927.

$20.99

$

Usually ships in 3-6 days

0

6

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM) (Honda Code 2539120).

$1.49

$

In Stock, Qty 18

0

4

Honda 13200-Z0T-800

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING
(Superseded to 13200-Z4V-900)

$13.99

$

In Stock, only 1 left!

0

5

Honda 90001-ZE1-000

BOLT, CONNECTING ROD (Honda Code 1431055).

$3.99

$

In Stock, only 2 left!

0

6

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM) (Honda Code 2539120).

$1.49

$

In Stock, Qty 18

0

3

Honda 13111-ZDK-003

PIN, PISTON

Note: Use from Engine SN 2272928.

$9.99

$

Usually ships in 3-6 days

0
