GX200 UT2 LXAU (GCBTT) - Honda Engine, Made in Thailand (SN: GCBTT-1000001 - GCBTT-1999999) REDUCTION (1) Parts Diagram

Engine, Made in Thailand

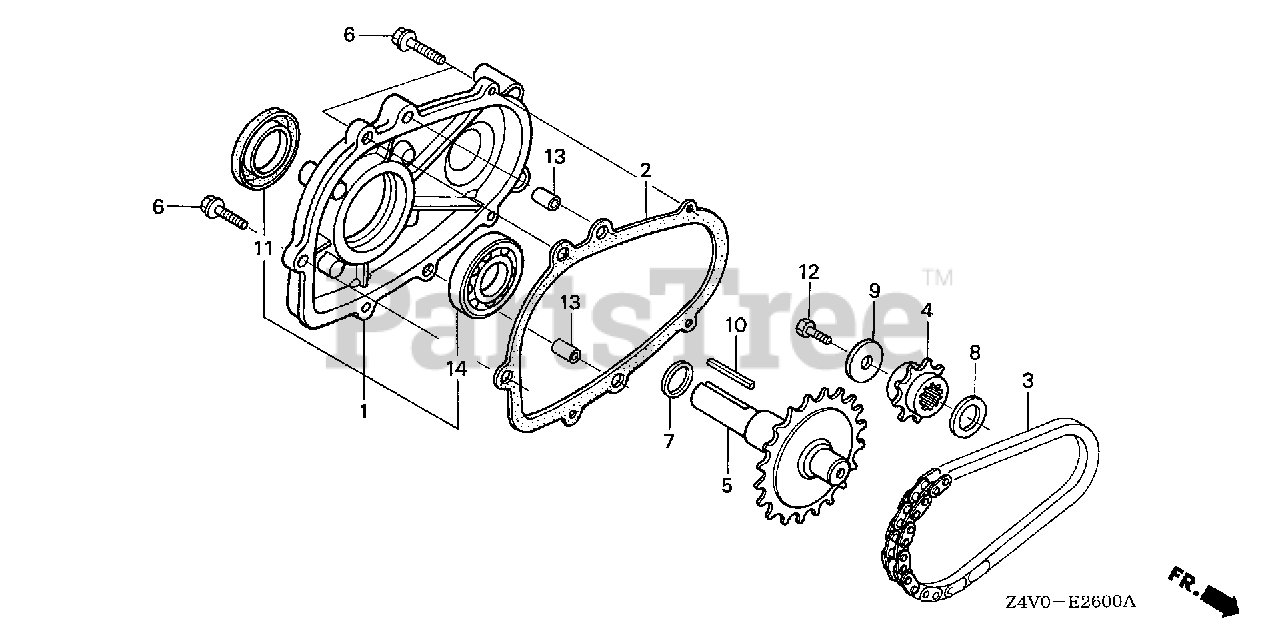

REDUCTION (1) Parts Diagram

  • Title

1

Honda 11500-ZE1-611

SEE PART DETAILS - PRI; COVER ASSY., CHAIN CASE

$126.99

$

Usually ships in 3-6 days

0

2

Honda 11521-ZH8-800

SEE PART DETAILS - PRI; GASKET, CHAIN CASE COVER (Honda Code 3735362).

$8.49

$

Usually ships in 3-6 days

0

3

Honda 14411-ZE1-611

SEE PART DETAILS - PRI; CHAIN, P.T.O. DRIVE (DID317FM2-34LE)

$37.99

$

Usually ships in 3-6 days

0

4

Honda 23110-ZE1-610

SPROCKET, DRIVE (Honda Code 1900331).

$52.99

$

Usually ships in 3-6 days

0

5

Honda 23710-ZE1-613

SEE PART DETAILS - PRI; SHAFT, P.T.O. (Honda Code 3098878).

$191.99

$

Usually ships in 3-6 days

0

6

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200) Use up to Engine SN 1530314.

$3.99

$

In Stock, Qty 8

0

7

Honda 90456-ZE1-000

SPRING, THRUST (Honda Code 2946226).

$5.49

$

Usually ships in 3-6 days

0

8

Honda 90470-ZE1-000

SPACER (20MM) (Honda Code 1904358).

$6.49

$

Usually ships in 3-6 days

0

9

Honda 90471-ZE1-610

WASHER (8MM) (Honda Code 1904366).

$5.49

$

Usually ships in 3-6 days

0

10

Honda 90741-883-810

KEY (5X5X33) (Honda Code 1033505).

$11.99

$

Usually ships in 3-6 days

0

11

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6) (Honda Code 7352453).

$8.99

$

In Stock, Qty 8

0

12

Honda 92101-08025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X25) (Honda Code 2651537).

$2.49

$

In Stock, Qty 6

0

13

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

14

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) (Honda Code 0636977).

$24.99

$

In Stock, only 3 left!

0
