GX200 UT VS17 (GCAHT) - Honda Engine, Made in Thailand (SN: GCAHT-1000001 - GCAHT-9999999) CARBURETOR (2) Parts Diagram

Engine, Made in Thailand

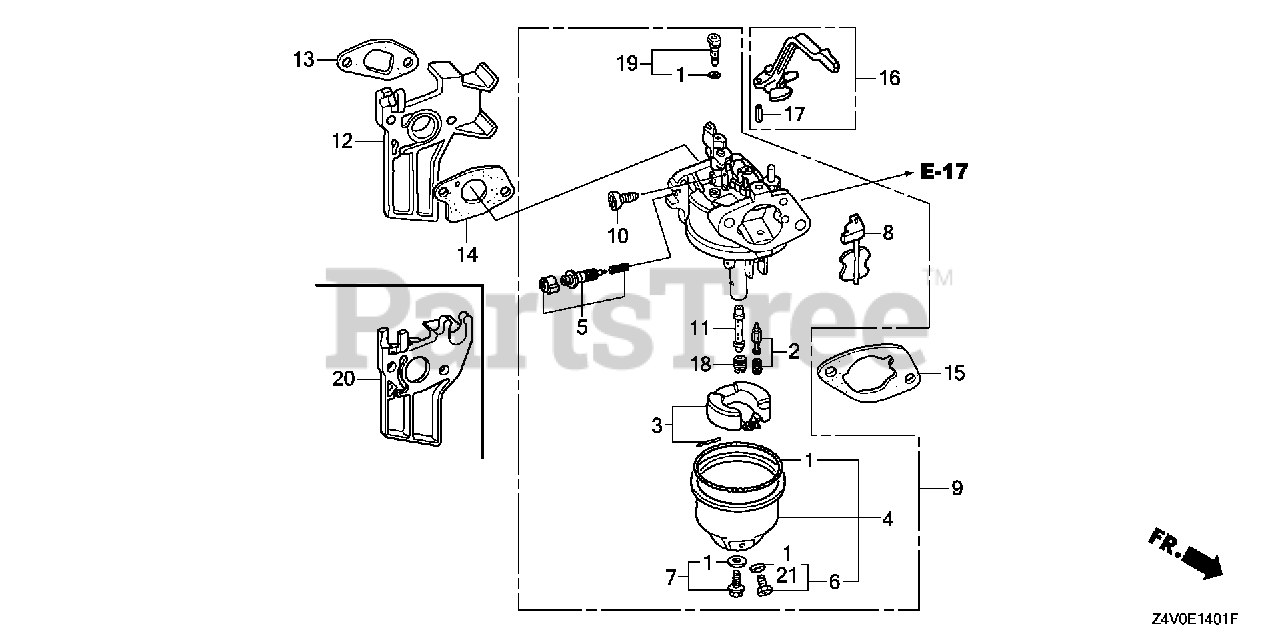

CARBURETOR (2) Parts Diagram

  • Title
1

Honda 16010-ZB1-015

GASKET SET

$18.99

$

In Stock, only 3 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

$28.99

$

In Stock, only 2 left!

0

3

$33.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE0-831

CHAMBER SET, FLOAT

$37.99

$

In Stock, only 2 left!

0

5

Honda 16016-ZH7-W01

SCREW SET, PILOT

$20.99

$

In Stock, only 3 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 3 left!

0

8

$37.99

$

Usually ships in 3-6 days

0

9

Honda 16100-Z0V-U92

CARBURETOR ASSY. (BE74K B)

Note: Use up to Engine SN 1104342.

$99.99

$

Usually ships in 3-6 days

0

9

Honda 16100-Z4V-U91

CARBURETOR ASSY. (BE74Q A)

Note: Use from Engine SN 1104343.

$82.99

$

Usually ships in 3-6 days

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZL0-000

NOZZLE, MAIN

$29.99

$

Usually ships in 3-6 days

0

12

Honda 16211-ZL0-000

INSULATOR, CARBURETOR

$21.99

$

In Stock, only 2 left!

0

13

Honda 16212-ZH8-800

GASKET, INSULATOR

$3.49

$

In Stock, Qty 20+

0

14

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

15

Honda 16269-ZE1-800

GASKET, AIR CLEANER

$2.99

$

In Stock, Qty 20+

0

16

Honda 16610-ZB2-000

LEVER, CHOKE

$8.99

$

Usually ships in 3-6 days

0

17

Honda 94305-20122

PIN, SPRING (2X12)

$2.49

$

In Stock, Qty 5

0

18

Honda 99101-ZH8-0720

JET, MAIN (#72)

Note: (Optional).

$8.49

$

In Stock, only 1 left!

0

18

Honda 99101-ZH8-0750

JET, MAIN (#75)

Note: (Optional).

$8.49

$

In Stock, only 1 left!

0

18

Honda 99101-ZH8-0780

JET, MAIN (#78)

$8.49

$

Usually ships in 3-6 days

0

19

Honda 99204-ZE2-0400

JET SET, PILOT (#40)

$22.99

$

In Stock, Qty 5

0

21

Honda 16141-Z0S-003

WASHER, PLAIN (6.2X10.7 DRAIN)

$0.99

$

Usually ships in 3-6 days

0
