GX200 UH2 QHQ4 (GCBDH) - Honda Engine, Made in China (SN: GCBDH-1000001 - GCBDH-9999999) PISTON Parts Diagram

Engine, Made in China

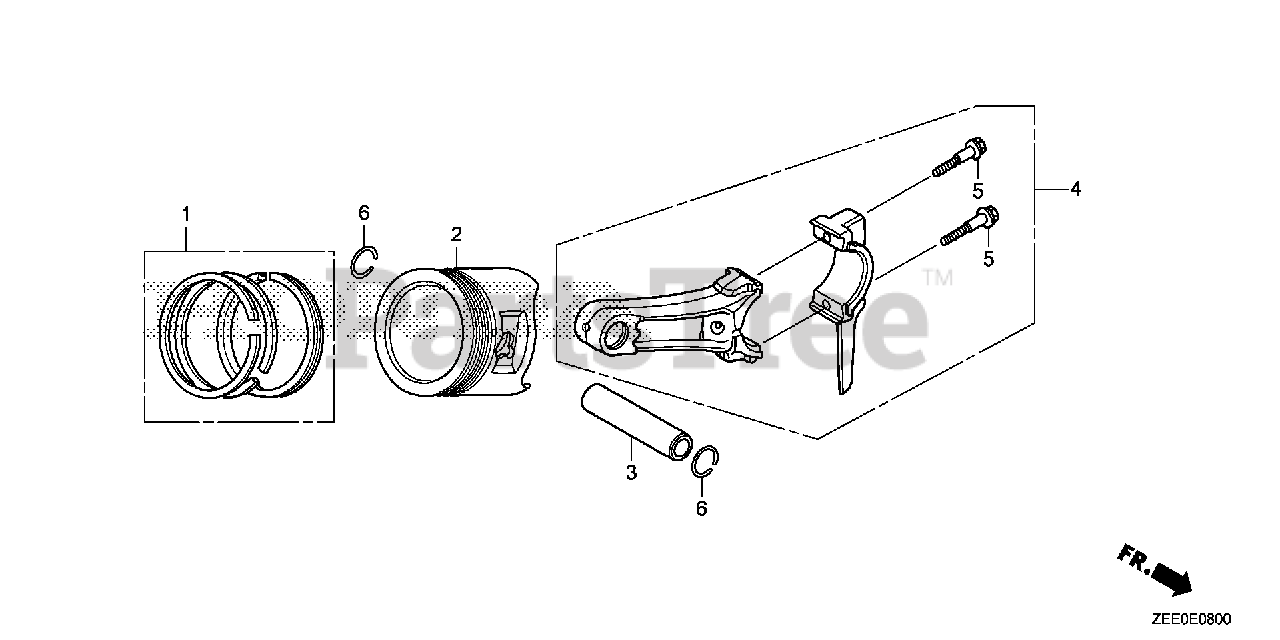

PISTON Parts Diagram

  • Title

1

Honda 13010-Z1V-931

RING SET, PISTON (STD) (TPR)

$35.99

$

Usually ships in 3-6 days

0

1

Honda 13010-Z1V-932

RING SET, PISTON (STD) (RIKEN)

$34.99

$

In Stock, only 1 left!

0

1

Honda 13011-Z1V-931

RING SET, PISTON (0.25) (TPR)

Note: (Optional).

$

$

Not available

1

Honda 13011-Z1V-932

RING SET, PISTON (0.25) (RIKEN)

Note: (Optional).

$

$

Not available

1

Honda 13012-Z1V-931

RING SET, PISTON (0.50) (TPR)

Note: (Optional).

$

$

Not available

1

Honda 13012-Z1V-932

RING SET, PISTON (0.50) (RIKEN)
(Superseded to 13012-Z1V-931)

Note: (Optional).

$

$

Not available

1

Honda 13013-Z1V-931

RING SET, PISTON (0.75) (TPR)

Note: (Optional).

$

$

Not available

1

Honda 13013-Z1V-932

RING SET, PISTON (0.75) (RIKEN)

Note: (Optional).

$

$

Not available

2

Honda 13101-ZCW-000

PISTON (STD)

$44.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZCW-000

PISTON (0.25)

Note: (Optional).

$

$

Not available

2

Honda 13103-ZCW-000

PISTON (0.50)

Note: (Optional).

$

$

Not available

2

Honda 13104-ZCW-000

PISTON (0.75)

Note: (Optional).

$

$

Not available

3

Honda 13111-ZDK-003

PIN, PISTON

$10.99

$

Usually ships in 3-6 days

0

3

Honda 13111-Z1T-000

PIN, PISTON

$12.99

$

In Stock, only 1 left!

0

3

Honda 13111-Z4M-000

PIN, PISTON

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

4

Honda 13200-Z1T-305

ROD ASSY., CONNECTING (UNDER SIZE)

Note: (Optional).

$

$

Not available

4

Honda 13200-Z1T-600

ROD ASSY., CONNECTING (JLH)

$102.99

$

Usually ships in 3-6 days

0

4

Honda 13200-Z1T-610

ROD ASSY., CONNECTING

$93.99

$

Usually ships in 3-6 days

0

5

Honda 90001-Z1T-000

BOLT, CONNECTING ROD (IDENT MARK Z)

$3.49

$

Usually ships in 3-6 days

0

6

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM) (Honda Code 2539120).

$1.99

$

In Stock, Qty 14

0
