GX200 UH2 QHQ4 (GCBDH) - Honda Engine, Made in China (SN: GCBDH-1000001 - GCBDH-9999999) CARBURETOR Parts Diagram

Engine, Made in China

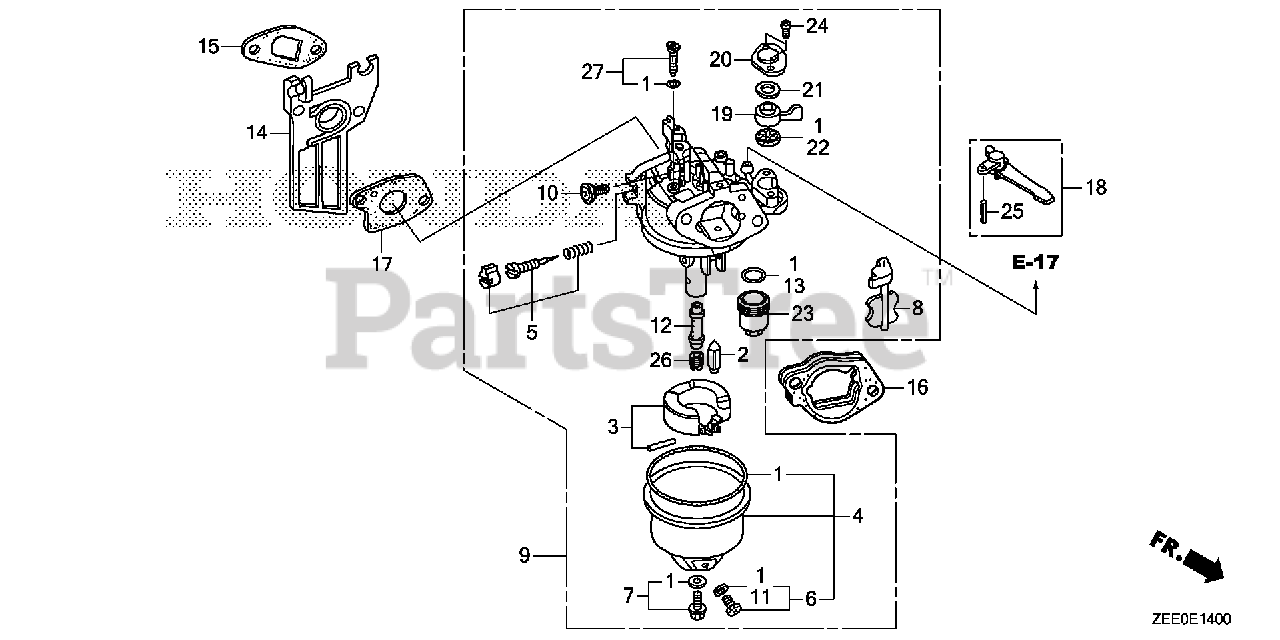

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-Z1T-WA1

GASKET SET

$14.99

$

Usually ships in 3-6 days

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (CARBURETOR NO.) (SEAT NOT INCLUDED)

$30.99

$

In Stock, only 1 left!

0

3

Honda 16013-Z0S-B01

FLOAT SET (Honda Code 7346596).

$35.99

$

In Stock, only 1 left!

0

4

Honda 16015-Z1T-WA1

CHAMBER SET, FLOAT

$30.99

$

Usually ships in 3-6 days

0

5

Honda 16016-Z1E-V21

SCREW SET (CARBURETOR NO.)

$4.49

$

Usually ships in 3-6 days

0

6

Honda 16024-Z1T-WA1

SCREW SET, DRAIN

$10.99

$

Usually ships in 3-6 days

0

7

Honda 16028-Z1T-WA1

SCREW SET

$12.99

$

Usually ships in 3-6 days

0

8

Honda 16044-Z4M-911

CHOKE SET (CARBURETOR NO.)

$38.99

$

In Stock, only 1 left!

0

9

Honda 16100-ZCW-WA1

CARBURETOR ASSY. (BEA3Q A)

$113.99

$

Usually ships in 3-6 days

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

11

Honda 16141-Z0S-003

WASHER, PLAIN (6.2X10.7 DRAIN) (CARBURETOR NO.)

$0.99

$

Usually ships in 3-6 days

0

12

Honda 16166-ZDL-WC1

NOZZLE, MAIN

$22.99

$

Usually ships in 3-6 days

0

13

Honda 16173-001-004

GASKET, FUEL STRAINER CUP (Honda Code 0005652).

$7.49

$

In Stock, only 2 left!

0

14

Honda 16211-ZCW-000

INSULATOR, CARBURETOR

$14.99

$

Usually ships in 3-6 days

0

15

Honda 16212-ZH8-800

SEE PART DETAILS - PRI; GASKET, INSULATOR

$3.49

$

In Stock, Qty 20+

0

15

Honda 16212-Z1T-701

GASKET, INSULATOR (NINGBO SIL GASKET)

$1.99

$

In Stock, only 1 left!

0

16

Honda 16220-ZE1-020

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2534055).

$8.49

$

In Stock, Qty 19

0

17

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 4725289).

$2.49

$

In Stock, Qty 20+

0

17

Honda 16221-Z1T-701

GASKET, CARBURETOR (NINGBO SIL GASKET)

$3.49

$

In Stock, only 2 left!

0

18

Honda 16610-ZE1-000

LEVER, CHOKE (STD) (Honda Code 1440114).

Note: (Optional).

$11.99

$

In Stock, Qty 8

0

18

Honda 16610-Z1T-000

LEVER, CHOKE (STD)

$8.99

$

In Stock, only 1 left!

0

19

Honda 16953-ZDK-003

LEVER, PETCOCK

$4.49

$

Usually ships in 3-6 days

0

20

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (CARBURETOR NO.)

$4.49

$

In Stock, only 1 left!

0

21

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (CARBURETOR NO.)

$4.49

$

Usually ships in 3-6 days

0

22

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

$4.49

$

In Stock, Qty 20+

0

23

Honda 16967-ZE0-811

CUP, FUEL STRAINER (Honda Code 1441583).

$23.99

$

In Stock, only 3 left!

0

24

Honda 93500-03006-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X6) (Honda Code 0561654).

$1.49

$

In Stock, only 3 left!

0

25

Honda 94305-20122

PIN, SPRING (2X12) (Honda Code 1441591).

$2.49

$

In Stock, only 4 left!

0

26

Honda 99101-ZDK-0700

JET, MAIN (#70)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

26

Honda 99101-ZDK-0720

JET, MAIN (#72)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

26

Honda 99101-ZDK-0750

JET, MAIN (#75)

$9.99

$

Usually ships in 3-6 days

0

27

Honda 99204-ZE0-0380

JET SET, PILOT (#38) (Honda Code 3353075).

$23.99

$

In Stock, only 2 left!

0
