GX200 UH2 QHQ4 (GCBDH) - Honda Engine, Made in China (SN: GCBDH-1000001 - GCBDH-9999999) CAMSHAFT Parts Diagram

Engine, Made in China

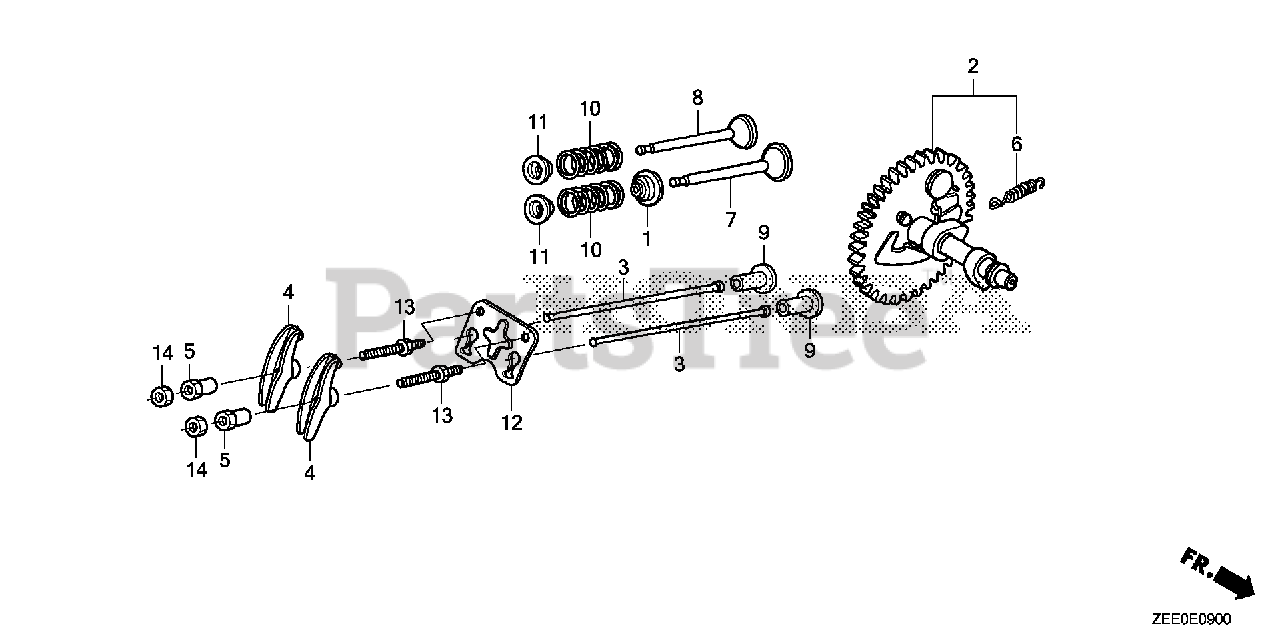

CAMSHAFT Parts Diagram

  • Title

1

Honda 12209-ZH8-003

SEE PART DETAILS - PRI; SEAL, VALVE STEM (Honda Code 6854335).

$8.99

$

In Stock, only 1 left!

0

1

Honda 12209-Z4M-801

SEAL, VALVE STEM

Note: (Optional).

$9.49

$

In Stock, Qty 8

0

2

Honda 14100-ZL0-000

CAMSHAFT ASSY.

$179.99

$

Usually ships in 3-6 days

0

3

Honda 14410-ZE1-010

SEE PART DETAILS - PRI; ROD, PUSH (Honda Code 3352655).

$8.49

$

In Stock, only 2 left!

0

4

Honda 14431-ZE1-000

ARM, VALVE ROCKER (Honda Code 1426824).

Note: (Optional).

$7.99

$

In Stock, only 2 left!

0

4

Honda 14431-Z1T-000

ARM, VALVE ROCKER

$6.49

$

Usually ships in 3-6 days

0

5

Honda 14451-Z4M-000

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM

Note: (Optional).

$5.99

$

In Stock, Qty 7

0

5

Honda 14451-Z7E-000

PIVOT, ROCKER ARM

$4.99

$

Usually ships in 3-6 days

0

6

Honda 14568-ZE1-000

SPRING, WEIGHT RETURN (Honda Code 1426907).

$3.49

$

In Stock, only 2 left!

0

7

Honda 14711-ZF1-000

SEE PART DETAILS - PRI; VALVE, IN. (Honda Code 3683455).

$20.99

$

Usually ships in 3-6 days

0

8

Honda 14721-ZE7-000

VALVE, EX.

$35.99

$

In Stock, only 2 left!

0

9

Honda 14731-ZL0-000

LIFTER, VALVE

$17.99

$

In Stock, only 1 left!

0

10

Honda 14751-ZF1-000

SPRING, VALVE (Honda Code 3683489).

$4.99

$

In Stock, only 2 left!

0

11

Honda 14771-Z0T-900

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING (EXHAUST SIDE)

Note: (Optional).

$1.49

$

In Stock, Qty 16

0

11

Honda 14771-Z1T-000

RETAINER, VALVE SPRING

$6.49

$

Usually ships in 3-6 days

0

12

Honda 14791-ZE1-010

PLATE, PUSH ROD GUIDE (Honda Code 1899947).

$4.49

$

Usually ships in 3-6 days

0

13

Honda 90012-ZE0-010

BOLT, PIVOT (8MM) (Honda Code 1756964).

$8.49

$

In Stock, only 2 left!

0

14

Honda 90206-ZE1-000

NUT, PIVOT ADJ. (Honda Code 1431287).

$4.49

$

In Stock, Qty 8

0
