GX200 U RX2 (GCAJK) - Honda Engine, Made in Japan (SN: GCAJK-1000001 - GCAJK-9999999) PISTON Parts Diagram

Engine, Made in Japan

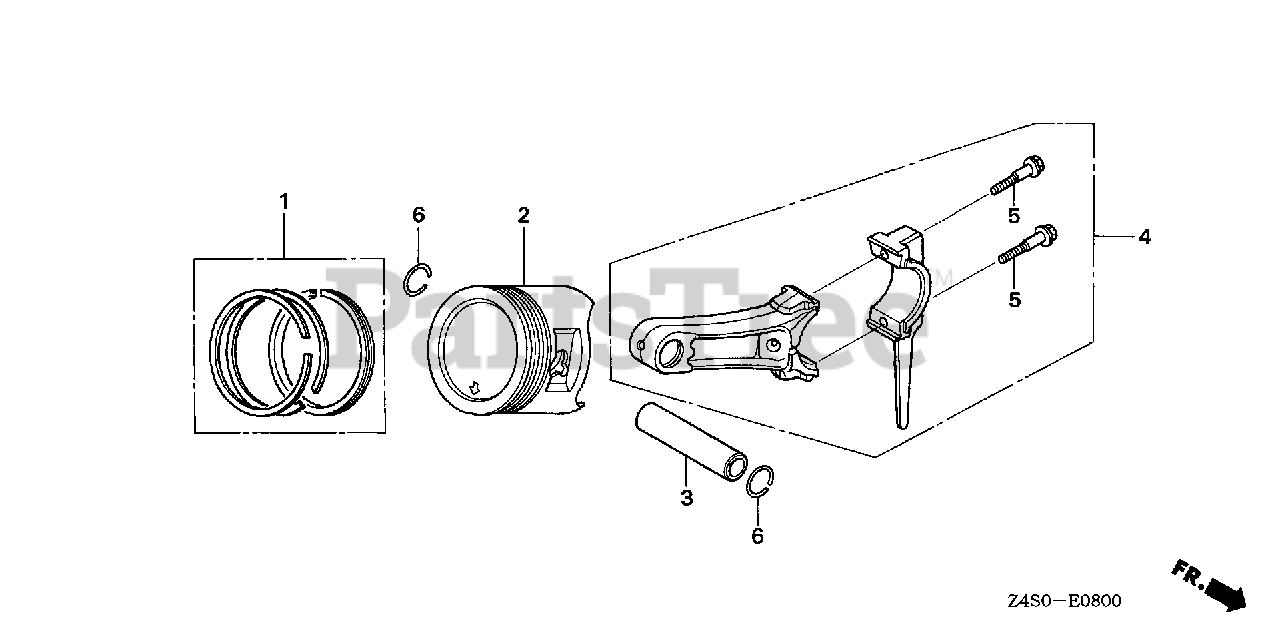

PISTON Parts Diagram

  • Title

1

Honda 13010-ZL0-003

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (TEIKOKU)

Note: Use up to Engine SN 1026116.

$58.99

$

In Stock, only 2 left!

0

1

Honda 13010-ZL0-004

RING SET, PISTON (STD.) (NIPPON)

Note: Use up to Engine SN 1026116.

$38.99

$

In Stock, only 2 left!

0

1

Honda 13010-Z4K-004

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (TPR)

Note: Use from Engine SN 1026117.

$34.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZL0-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25) Use from Engine SN 7603339.

Note: (Optional).Use up to Engine SN 1026116.

$64.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZL0-004

RING SET, PISTON (0.25) (NIPPON) Use up to Engine SN 1314912.

Note: (Optional).Use up to Engine SN 1026116.

$

$

Not available

1

Honda 13011-Z4K-004

SEE PART DETAILS - PRI; RING SET, PISTON (0.25) Use from Engine SN 1314913.

Note: (Optional).Use from Engine SN 1026117.

$

$

Not available

1

Honda 13012-ZL0-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50) Use from Engine SN 7603339.

Note: (Optional).Use up to Engine SN 1026116.

$64.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZL0-004

RING SET, PISTON (0.50) (NIPPON) Use up to Engine SN 1314912.

Note: (Optional).Use up to Engine SN 1026116.

$

$

Not available

1

Honda 13012-Z4K-004

SEE PART DETAILS - PRI; RING SET, PISTON (0.50) (TPR)

Note: (Optional).Use from Engine SN 1026117.

$

$

Not available

1

Honda 13013-ZL0-003

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (TEIKOKU) Use up to Engine SN 1314912.

Note: (Optional).Use up to Engine SN 1026116.

$64.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZL0-004

RING SET, PISTON (0.75) (NIPPON) Use up to Engine SN 1314912.

Note: (Optional).Use up to Engine SN 1026116.

$42.99

$

In Stock, only 1 left!

0

1

Honda 13013-Z4K-004

RING SET, PISTON (0.75) Use from Engine SN 1314913.

Note: (Optional).Use from Engine SN 1026117.

$

$

Not available

2

Honda 13101-ZL0-010

SEE PART DETAILS - PRI; PISTON (STD)

Note: Use up to Engine SN 1026116.

$44.99

$

In Stock, only 3 left!

0

2

Honda 13101-ZL0-020

SEE PART DETAILS - SUP; PISTON (STD)
(Superseded to 13101-Z4V-800)

Note: Use from Engine SN 1026117.

$25.99

$

Usually ships in 3-6 days

0

2

Honda 13101-Z4V-800

SEE PART DETAILS - PRI; PISTON (STD)

Note: Use from Engine SN 1026117.

$25.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZL0-010

SEE PART DETAILS - PRI; PISTON (OS 0.25) Use from Engine SN 1645602.

Note: (Optional).Use up to Engine SN 1026116.

$

$

Not available

2

Honda 13102-ZL0-020

PISTON (0.25)

Note: (Optional).Use from Engine SN 1026117.

$

$

Not available

2

Honda 13103-ZL0-010

SEE PART DETAILS - PRI; PISTON (OS 0.50)

Note: (Optional).Use up to Engine SN 1026116.

$49.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZL0-020

PISTON (0.50)

Note: (Optional).Use from Engine SN 1026117.

$

$

Not available

2

Honda 13104-ZL0-010

SEE PART DETAILS - PRI; PISTON (0.75) Use from Engine SN 1645602.

Note: (Optional).Use up to Engine SN 1026116.

$

$

Not available

2

Honda 13104-ZL0-020

PISTON (0.75)

Note: (Optional).Use from Engine SN 1026117.

$

$

Not available

3

Honda 13111-ZE1-000

PIN, PISTON (Honda Code 1426584).

$13.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZE1-010

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (Honda Code 4725255).
(Superseded to 13200-Z4V-900)

$13.99

$

In Stock, only 1 left!

0

4

Honda 13200-Z0T-800

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING
(Superseded to 13200-Z4V-900)

$13.99

$

In Stock, only 1 left!

0

5

Honda 90001-ZE1-000

BOLT, CONNECTING ROD (Honda Code 1431055).

$3.99

$

In Stock, only 2 left!

0

6

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM) (Honda Code 2539120).

$1.49

$

In Stock, Qty 14

0
