GX200 TX2/A (GCAE) - Honda Engine, Made in Japan (SN: GCAE-1900001 - GCAE-8999999) RECOIL STARTER (1) Parts Diagram

Engine, Made in Japan

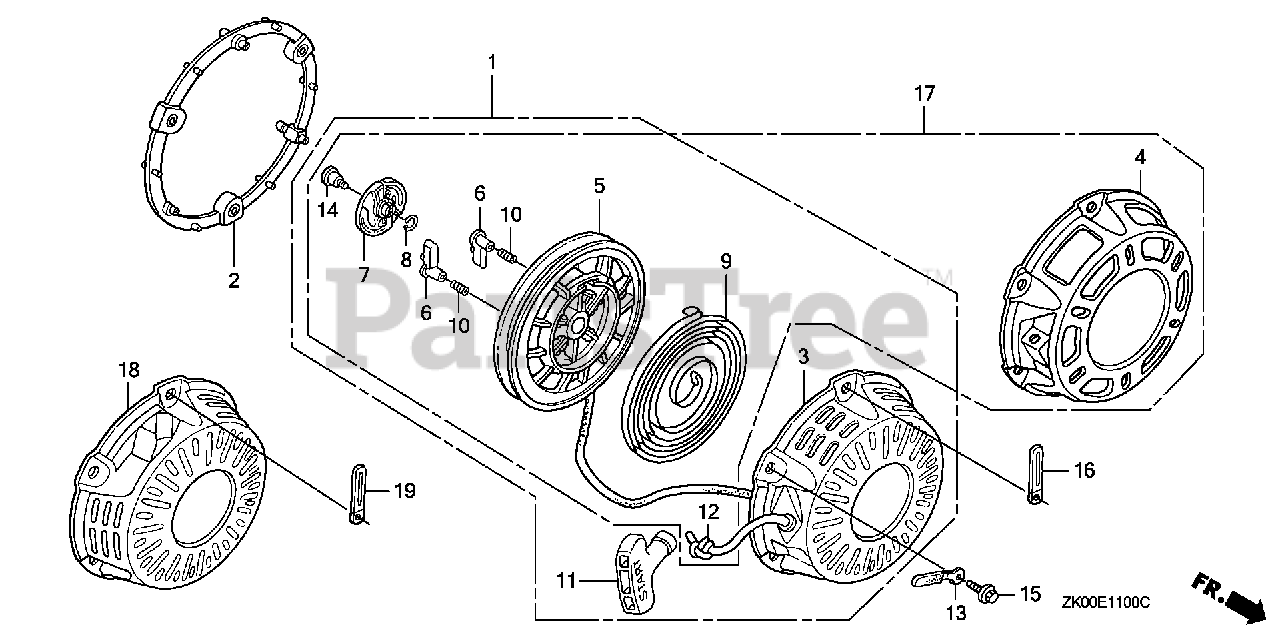

RECOIL STARTER (1) Parts Diagram

  • Title

1

Honda 28400-ZH8-013YA

STARTER ASSY., RECOIL *R280* (POWER RED)

Note: Use up to Engine SN 1937022.

$126.99

$

In Stock, only 2 left!

0

2

Honda 28405-ZL0-000ZD

SPACER, RECOIL STARTER MOUNTING *R280* (POWER RED)

Note: Use up to Engine SN 1937022.

$12.99

$

Usually ships in 3-6 days

0

3

Honda 28410-ZH8-003YA

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R280* (POWER RED)

Note: Use up to Engine SN 1937022.

$124.99

$

Usually ships in 3-6 days

0

5

Honda 28420-ZH8-013

REEL, RECOIL STARTER (NATURAL)

Note: Use up to Engine SN 1937022.

$47.99

$

Usually ships in 3-6 days

0

6

Honda 28422-ZH8-013

RATCHET, STARTER

Note: Use up to Engine SN 1937022.

$9.49

$

In Stock, only 1 left!

0

7

Honda 28433-ZH8-003

GUIDE, RATCHET

Note: Use up to Engine SN 1937022.

$13.99

$

Usually ships in 3-6 days

0

8

Honda 28441-ZH8-003

SPRING, FRICTION

Note: Use up to Engine SN 1937022.

$6.49

$

In Stock, only 1 left!

0

9

Honda 28442-ZH8-003

SPRING, RECOIL STARTER

Note: Use up to Engine SN 1937022.

$19.99

$

In Stock, Qty 8

0

10

Honda 28443-ZH8-003

SPRING, RETURN

Note: Use up to Engine SN 1937022.

$6.49

$

In Stock, only 1 left!

0

11

Honda 28461-ZH8-003

SEE PART DETAILS - SUP; GRIP, STARTER
(Superseded to 28461-ZH8-013)

Note: Use up to Engine SN 1937022.

$8.99

$

In Stock, Qty 7

0

11

Honda 28461-ZH8-013

SEE PART DETAILS - PRI; KNOB, RECOIL SRARTER

Note: Use up to Engine SN 1937022.

$8.99

$

In Stock, Qty 7

0

12

Honda 28462-ZH8-003

ROPE, RECOIL STARTER

Note: Use up to Engine SN 1937022.

$12.99

$

In Stock, only 3 left!

0

14

Honda 90003-ZH8-003

SCREW, SETTING

Note: Use up to Engine SN 1937022.

$6.99

$

Usually ships in 3-6 days

0

15

Honda 95701-06018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

Note: Use up to Engine SN 1937022.

$2.49

$

In Stock, Qty 7

0
