GX200 TX2/A (GCAE) - Honda Engine, Made in Japan (SN: GCAE-1900001 - GCAE-8999999) CONTROL (1) Parts Diagram

Engine, Made in Japan

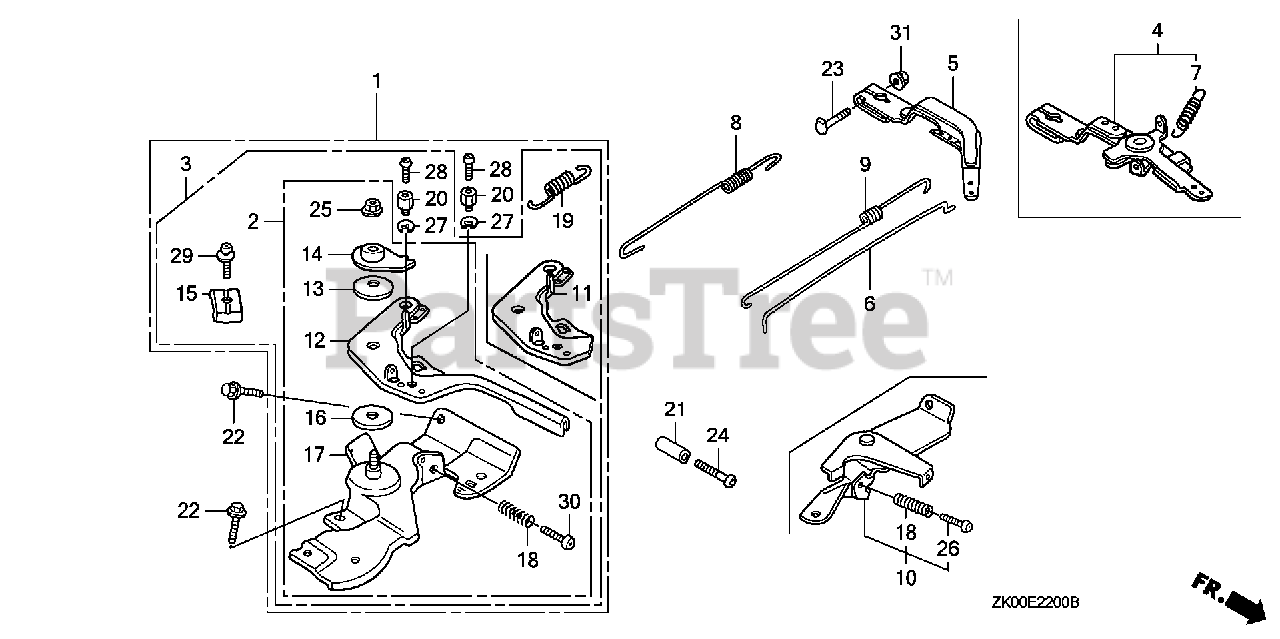

CONTROL (1) Parts Diagram

  • Title

2

Honda 16500-ZH8-030

SEE PART DETAILS - PRI; CONTROL ASSY.

$43.99

$

Usually ships in 3-6 days

0

5

Honda 16551-ZL0-000

ARM, GOVERNOR

$18.99

$

In Stock, only 2 left!

0

6

Honda 16555-ZE1-000

ROD, GOVERNOR

$4.99

$

In Stock, only 3 left!

0

8

Honda 16561-ZL0-000

SPRING, GOVERNOR

$5.99

$

In Stock, Qty 12

0

9

Honda 16562-ZE1-020

SPRING, THROTTLE RETURN

$3.99

$

In Stock, Qty 20+

0

12

Honda 16571-ZH8-020

LEVER, CONTROL

$14.99

$

In Stock, only 1 left!

0

13

Honda 16574-ZE1-000

SPRING, LEVER

$4.49

$

In Stock, only 1 left!

0

14

Honda 16575-ZH8-000

WASHER, CONTROL LEVER

$5.99

$

Usually ships in 3-6 days

0

16

Honda 16578-ZE1-000

SPACER, CONTROL LEVER

$5.49

$

In Stock, only 4 left!

0

17

Honda 16580-ZH8-030

SEE PART DETAILS - PRI; BASE, CONTROL

$25.99

$

Usually ships in 3-6 days

0

18

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$5.49

$

In Stock, Qty 7

0

22

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

23

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

$3.49

$

In Stock, only 3 left!

0

25

Honda 90114-SA0-000

NUT, SELF-LOCK (6MM)

$4.49

$

In Stock, Qty 20+

0

30

Honda 93500-05025-0A

SCREW, PAN (5X25)

$1.49

$

Usually ships in 3-6 days

0

31

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0
